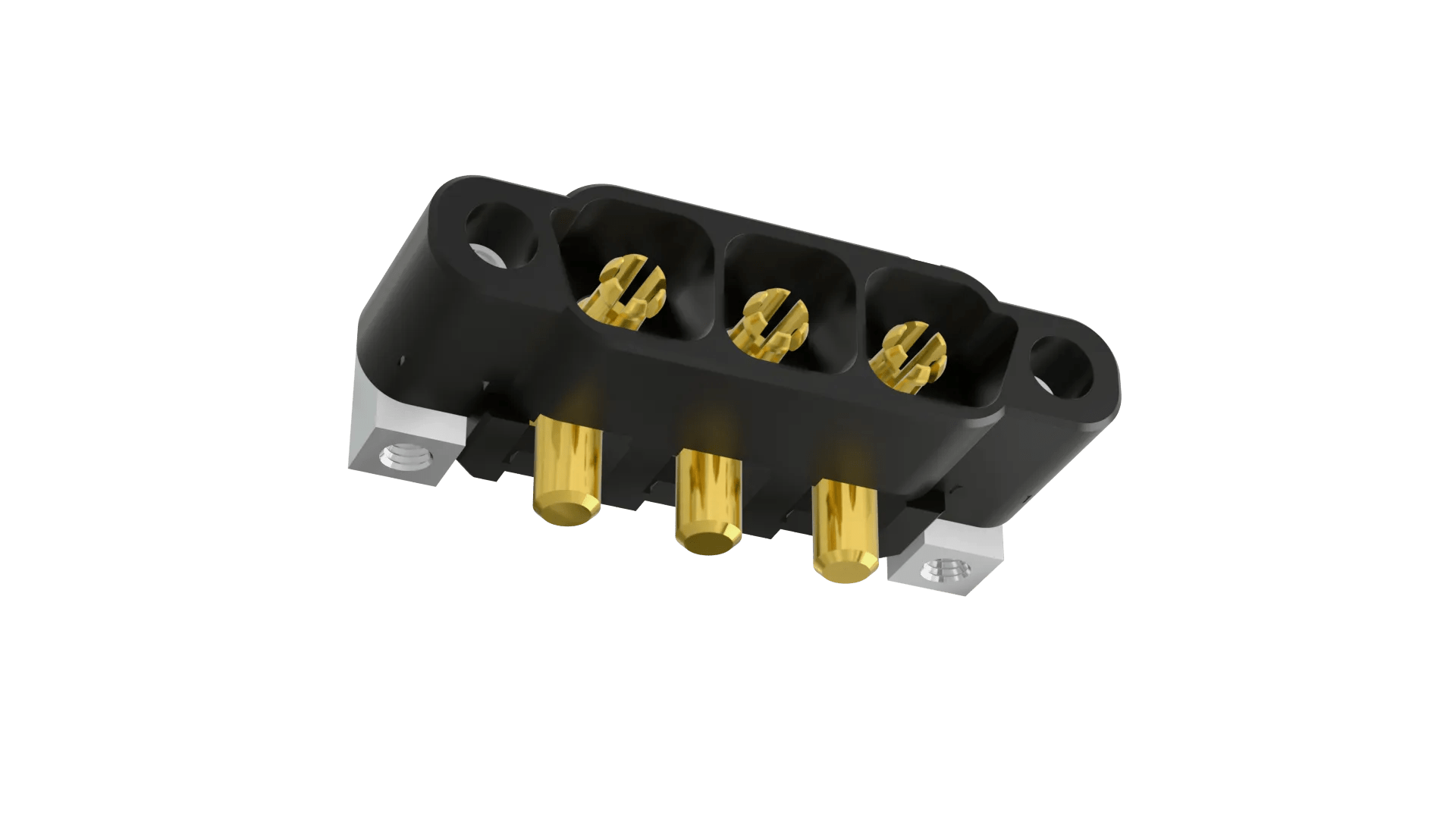

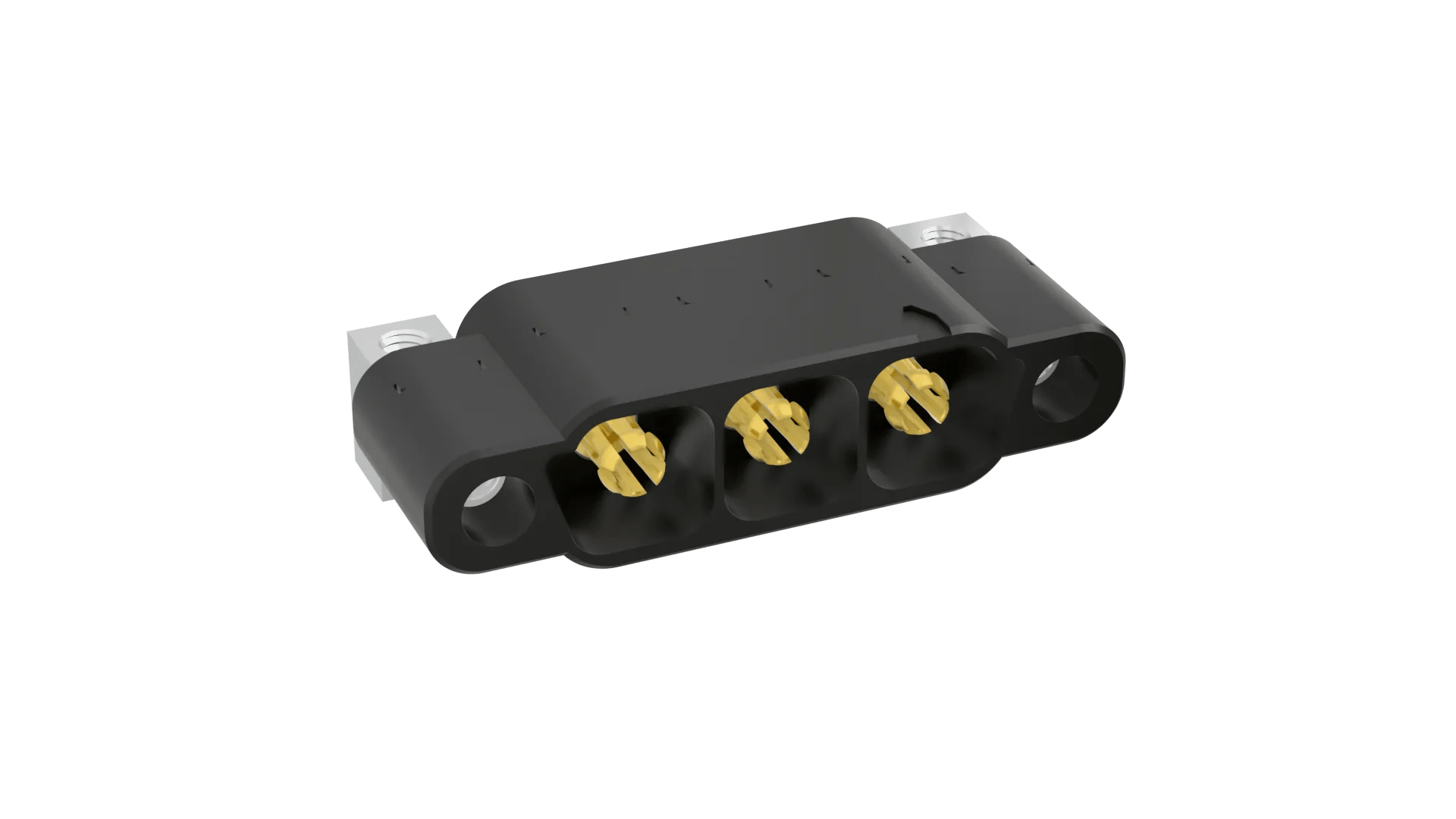

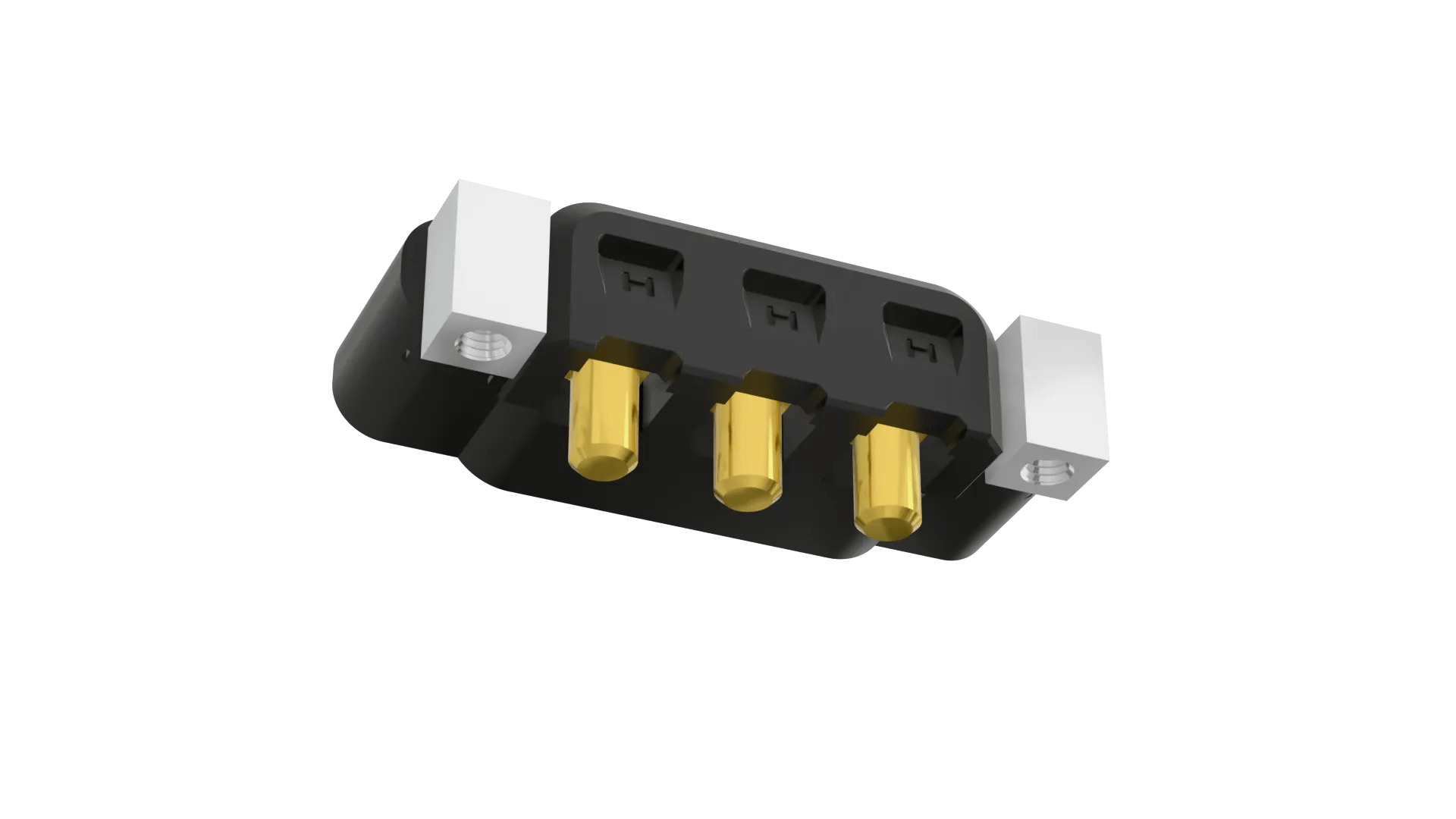

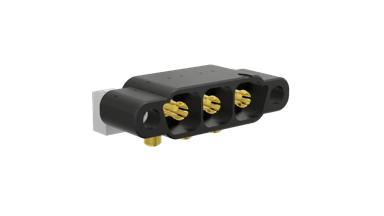

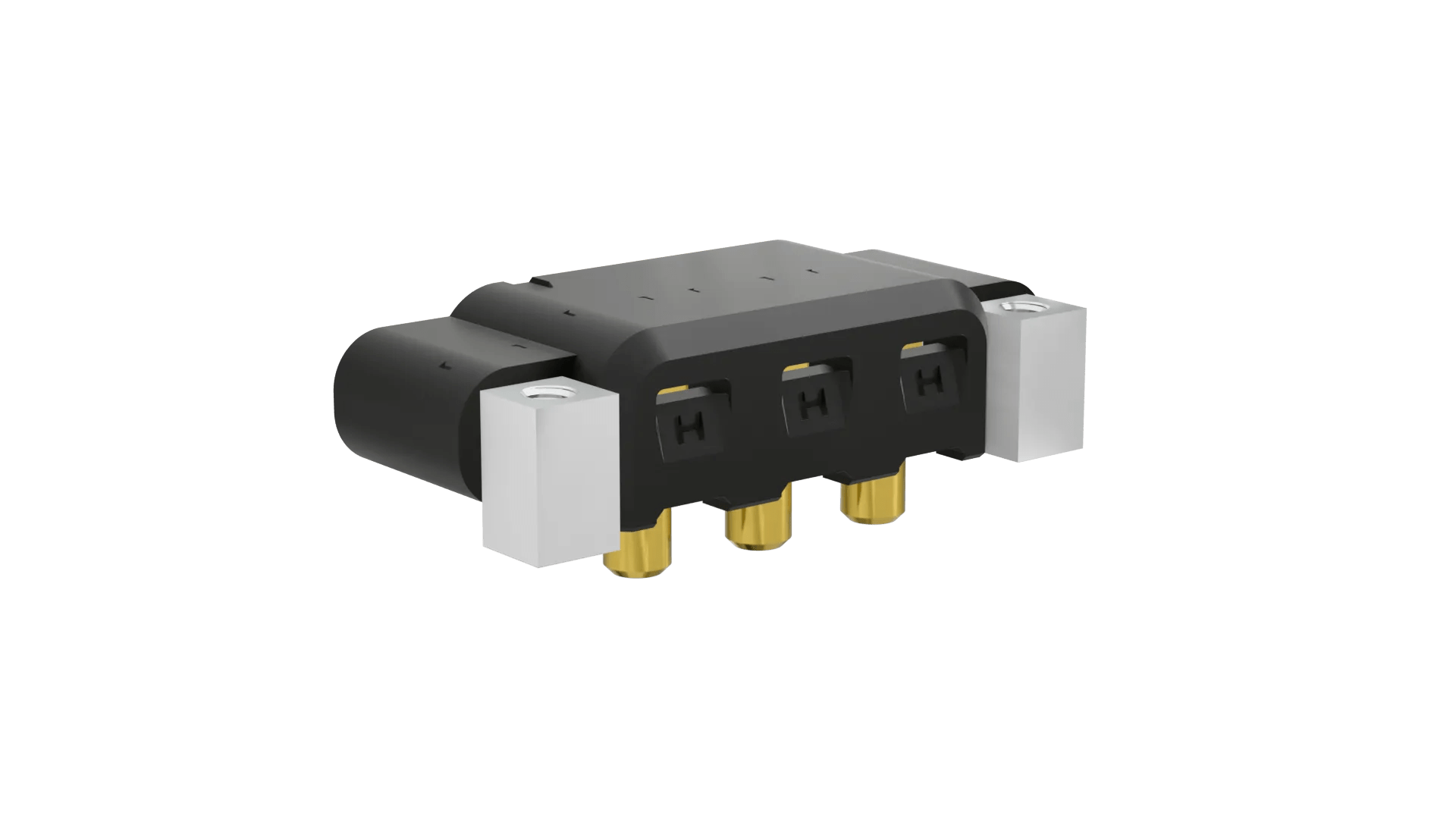

Single Row Polarized Male 3.65mm PC Tail horizontal throughboard connector with individually shrouded recessed contacts - 3 contacts.
Use 10mm bolt KA1-4200000 with hexagonal socket head for PCB strain relief. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C052XX.
View Technical Details
Checking stock availability...
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Internal Thread Fixing with Board/Front Panel Mount
Number of Rows:
1
Connector Orientation:
Horizontal
Country of Origin:
GB
Side Stackable:
No
Number of Power/Coax Contacts:
3
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
60A max per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Beryllium Copper
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
8.50mm (0.335")
Weight:
15.615g
Dimensions:
41.50 x 17.50 x 14.55
Thread Size:
M3
PC Tail Length:
3.65mm
Height of Connector above PCB:
10.90mm
