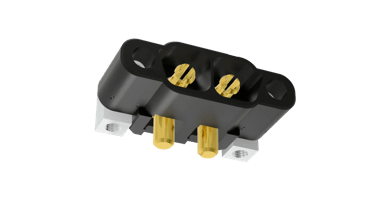

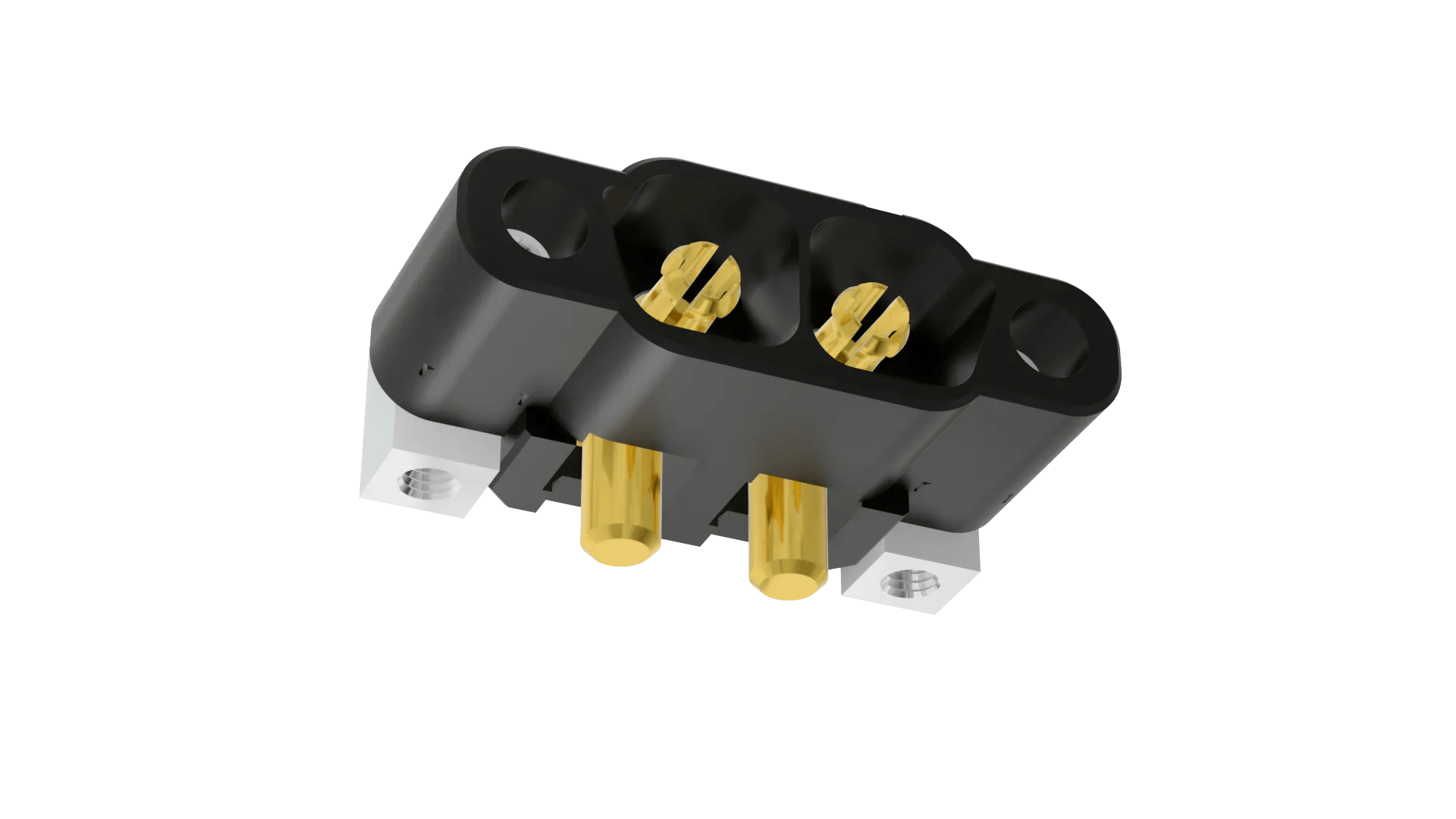

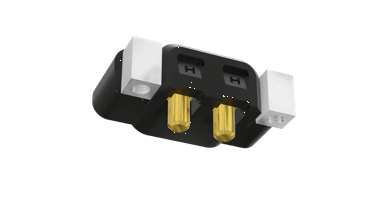

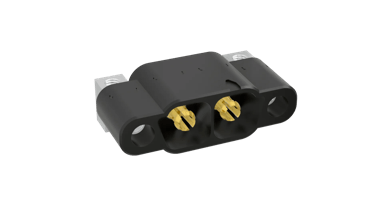

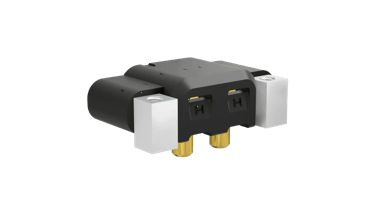

Male plug Single Row right-angle (horizontal) connector, throughboard 3.65mm PCB terminations - 2 contacts. Fitted with internally threaded screw fixings and board mount threads. Use 10mm bolt KA1-4200000 with hexagonal socket head (accepts 2mm A/F hex or Allen key) for board mount retention.
Individually shrouded recessed contacts - Gold finish on contact areas and terminations. Packaged in tubes.
For complete pin numbering or pin out information, see Component Specification C052XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Internal Thread Fixing with Board/Front Panel Mount
Number of Rows
1
Connector Orientation
Right-Angle
Country of Origin
GB
Side Stackable
No
Number of Power/Coax Contacts
2
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
60A max per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
PPS
Base Material of Contact
Beryllium Copper
Flammability Rating
UL94V-0
Packaging Style
Tube
Finish / Plating on Termination
Gold
Housing Colour
Black
Dimensions
Contact Pitch
8.50mm (0.335")
Weight
12.32g
Dimensions
33.00 x 17.50 x 14.55
Thread Size
M3
PC Tail Length
3.65mm
Height of Connector above PCB
10.90mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - KA1-MH1XX05M3.pdf
C052XX Component Specification - Kona KA1 Series (8.50mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on Kona contacts
Product Information
Product Training Module - Overview Guide to the Kona range + 8.5mm pitch Power High-Reliability
Product Datasheet - Kona range (HRi)
Environmental Compliance
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for KA1-MH1XX05M3 series
Harwin REACH Statement - KA1-MH10205M3
RoHS Declaration - KA1-MH10205M3
