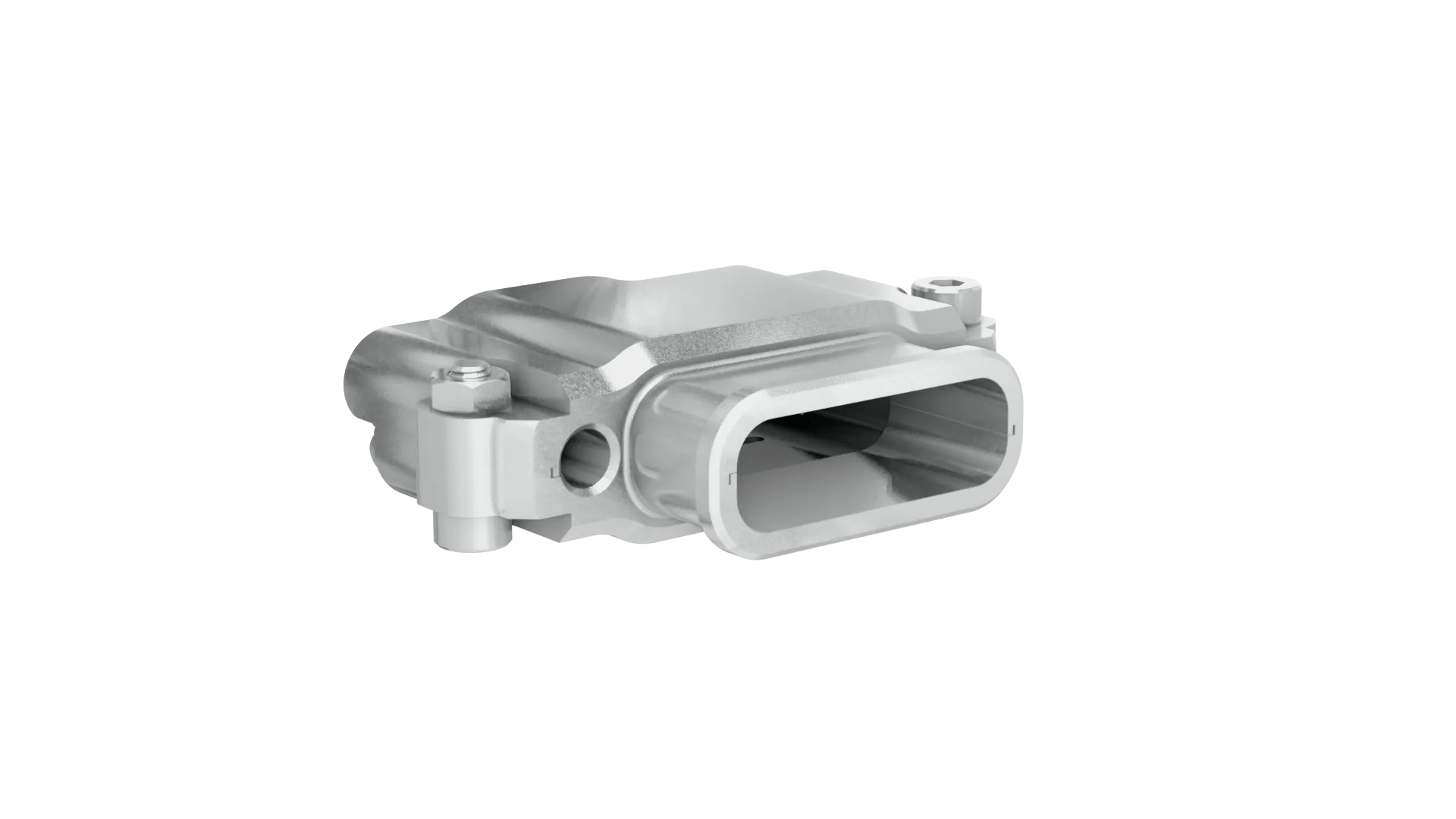

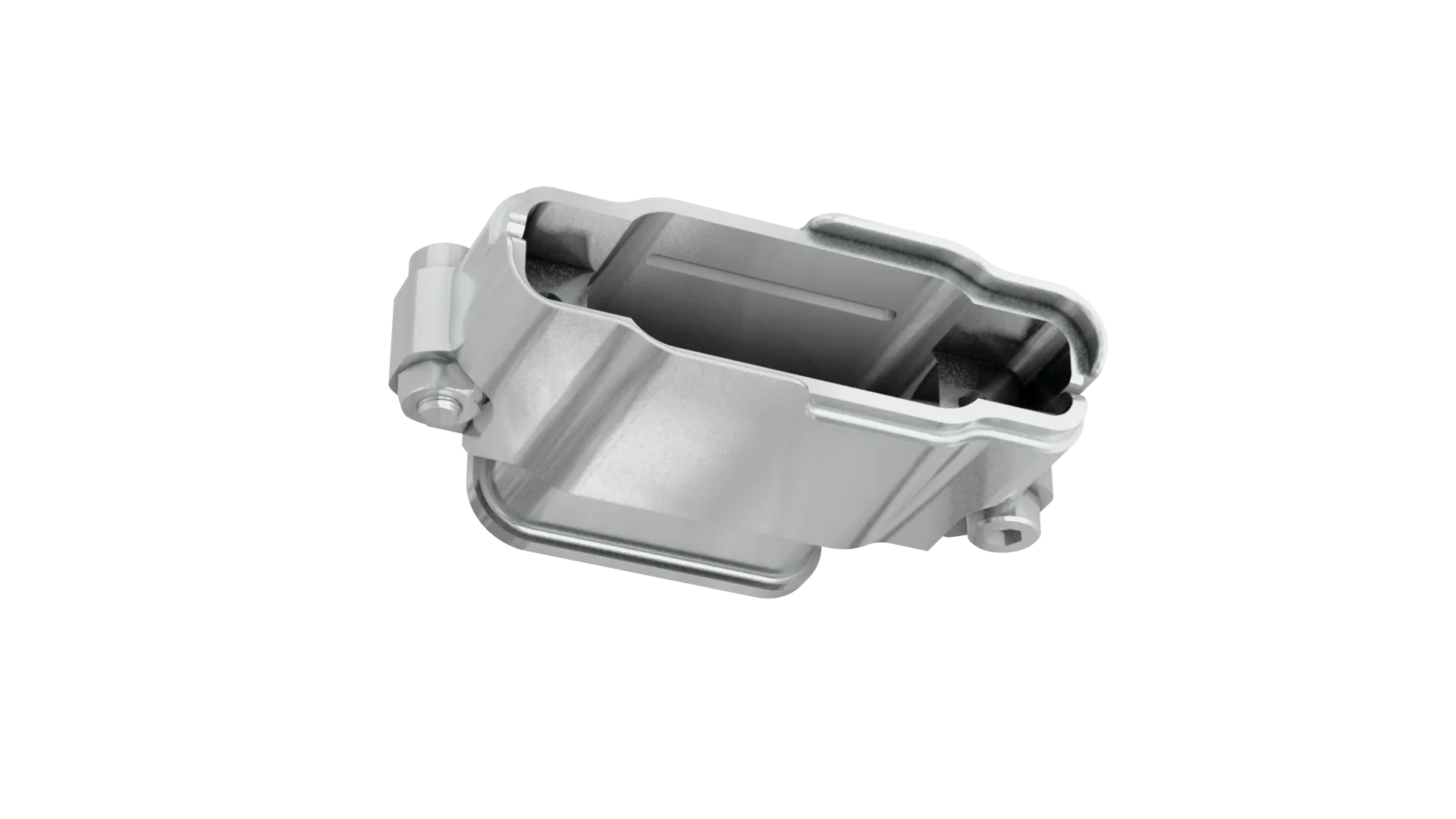

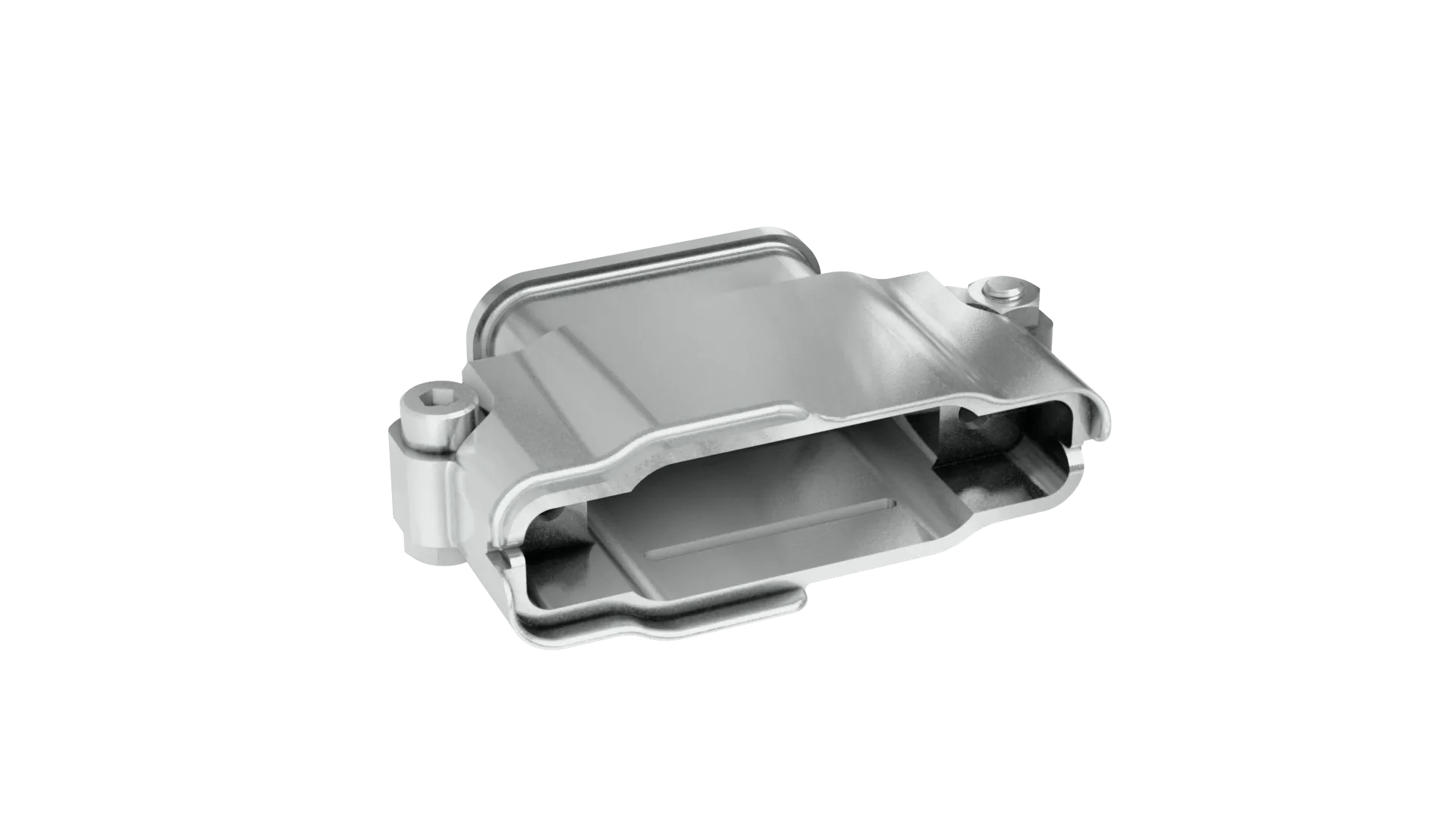

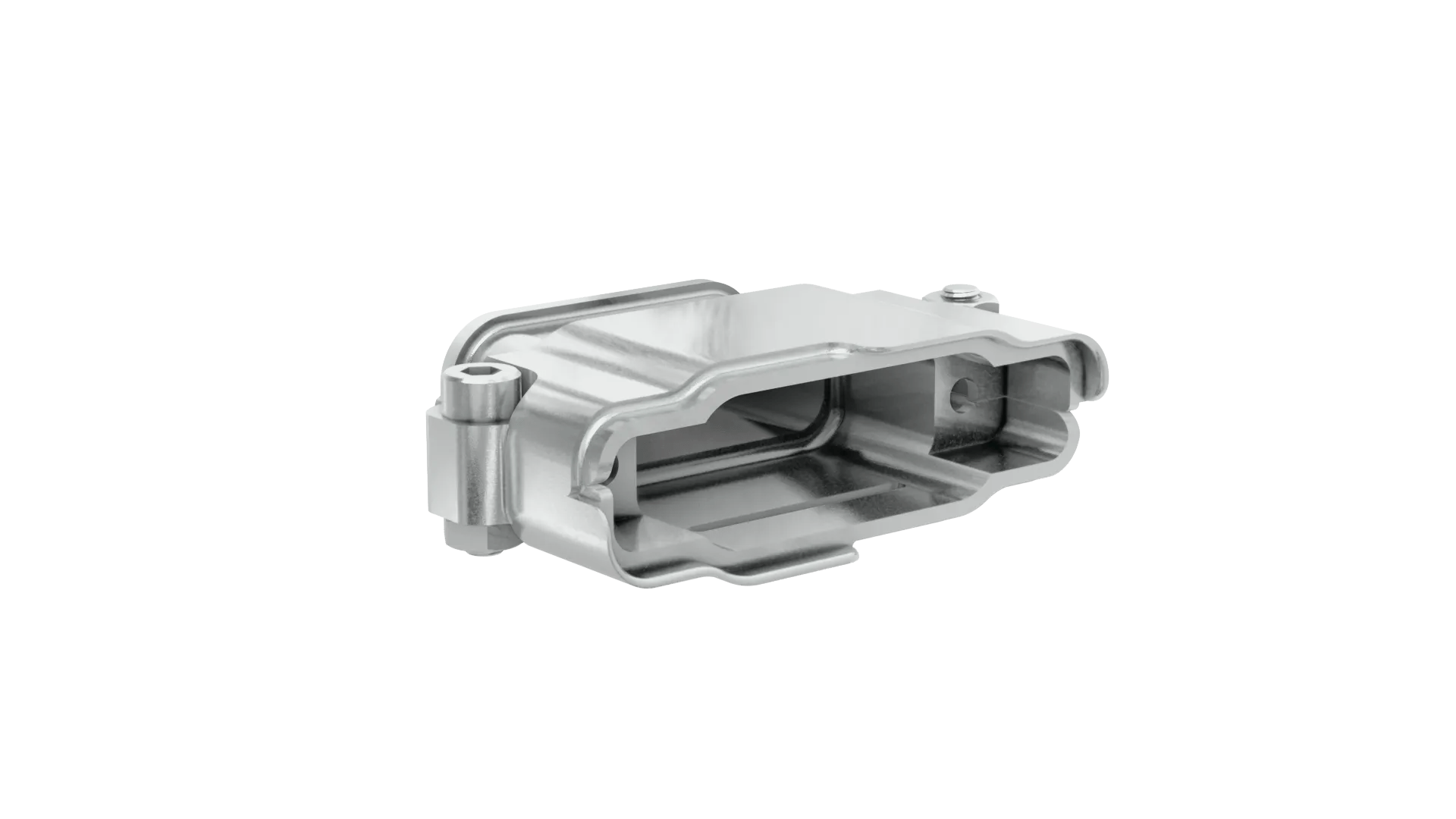

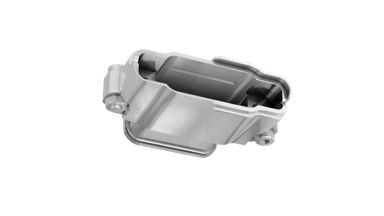

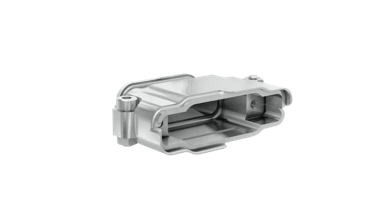

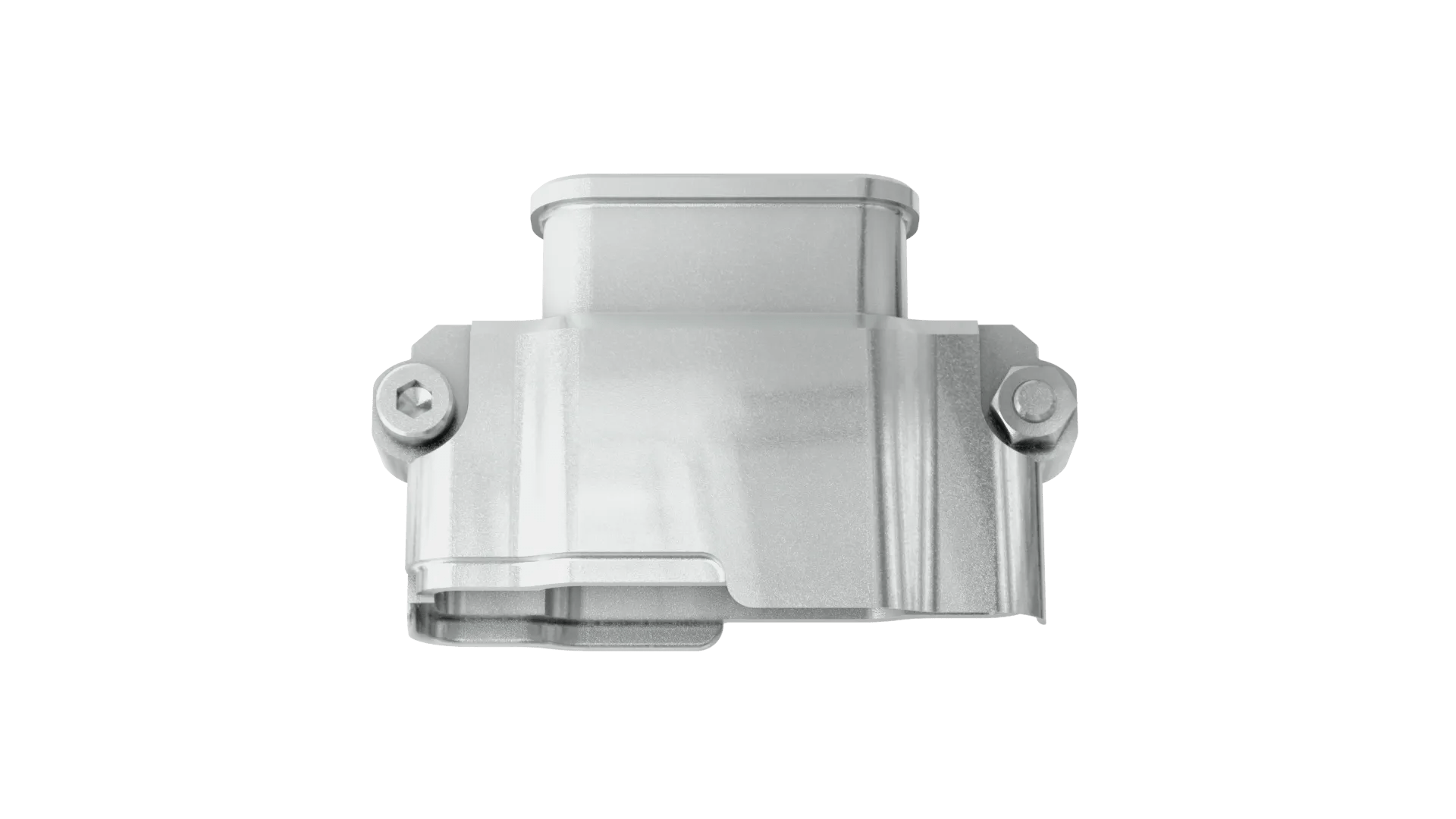

KONA CABLE BACKSHELL KIT - 03 WAY

HRi
HRi

Traceparts account required

KA1-9700300

KONA CABLE BACKSHELL KIT - 03 WAY


8.50mm Pitch High-Reliability Connector - Kona

  • Metal Backshell kit for cable connectors - includes 2 metal hood halves and short screws & nuts for joining the halves.

  • Use with the following 3-contact housings: female cable housing KA1-2010398F1 or male cable housing KA1-3010398M5.

  • Can be fitted after cable assembly construction. Tie-band M80-9480000 available separately for attaching braid.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Number of Rows:

    1

  • Connector Orientation:

    Straight

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Signal Contacts:

    3

  • Operating Temperature:

    -65°C to +150°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Cuttable:

    No

Materials

  • Housing Material:

    Aluminium Alloy

  • Packaging Style:

    Bulk/Loose

  • Housing Colour:

    Nickel

Dimensions

  • Contact Pitch:

    8.50mm (0.335")

  • Weight:

    20.013g

  • Dimensions:

    51.10 x 15.00 x 33.00

Downloads

    Product Information

  • IS-53 - Kona Metal Backshells KA1-970 Instruction Sheet

  • Product Datasheet - Kona range (HRi)

  • Product Training Module - Overview Guide to the Kona range + 8.5mm pitch Power High-Reliability

  • Technical Documentation

  • Technical Drawing / Datasheet - KA1-970.pdf

  • C052XX Component Specification - Kona KA1 Series (8.50mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - KA1-9700300

  • Material composition for KA1-970XX00 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Test Reports

  • Test Report HT076 - Kona (KA1 Series) - Electrical + Mechanical and Environmental
