Active Product

KA1-9700200

2 Pos. Cable Metal Backshell for Kona

8.50mm Pitch High-Reliability Connector - Kona

Order Sample

Add to Favorites

Loading… Check availability

3 similar products View products

Traceparts account required

Product Description

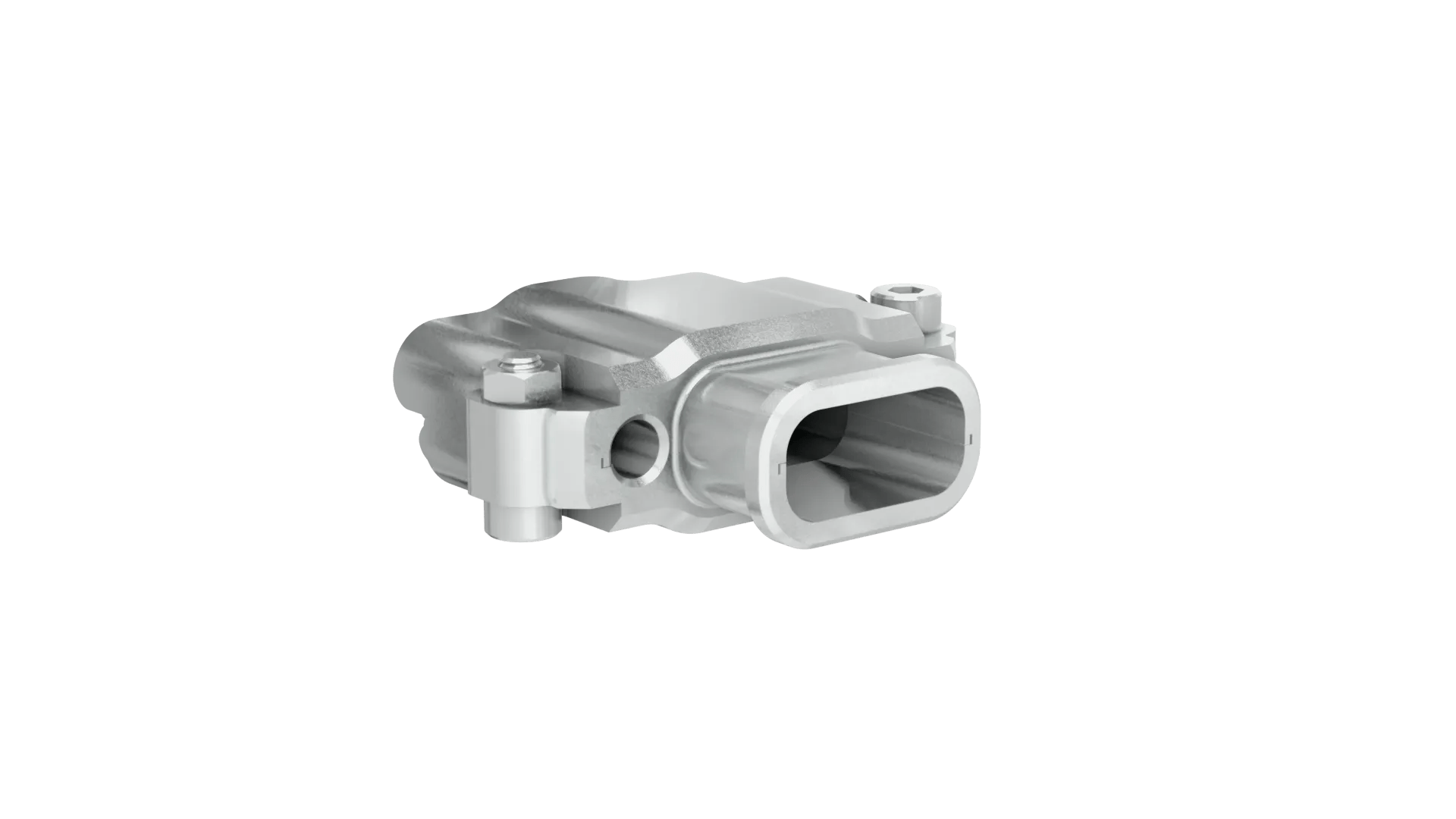

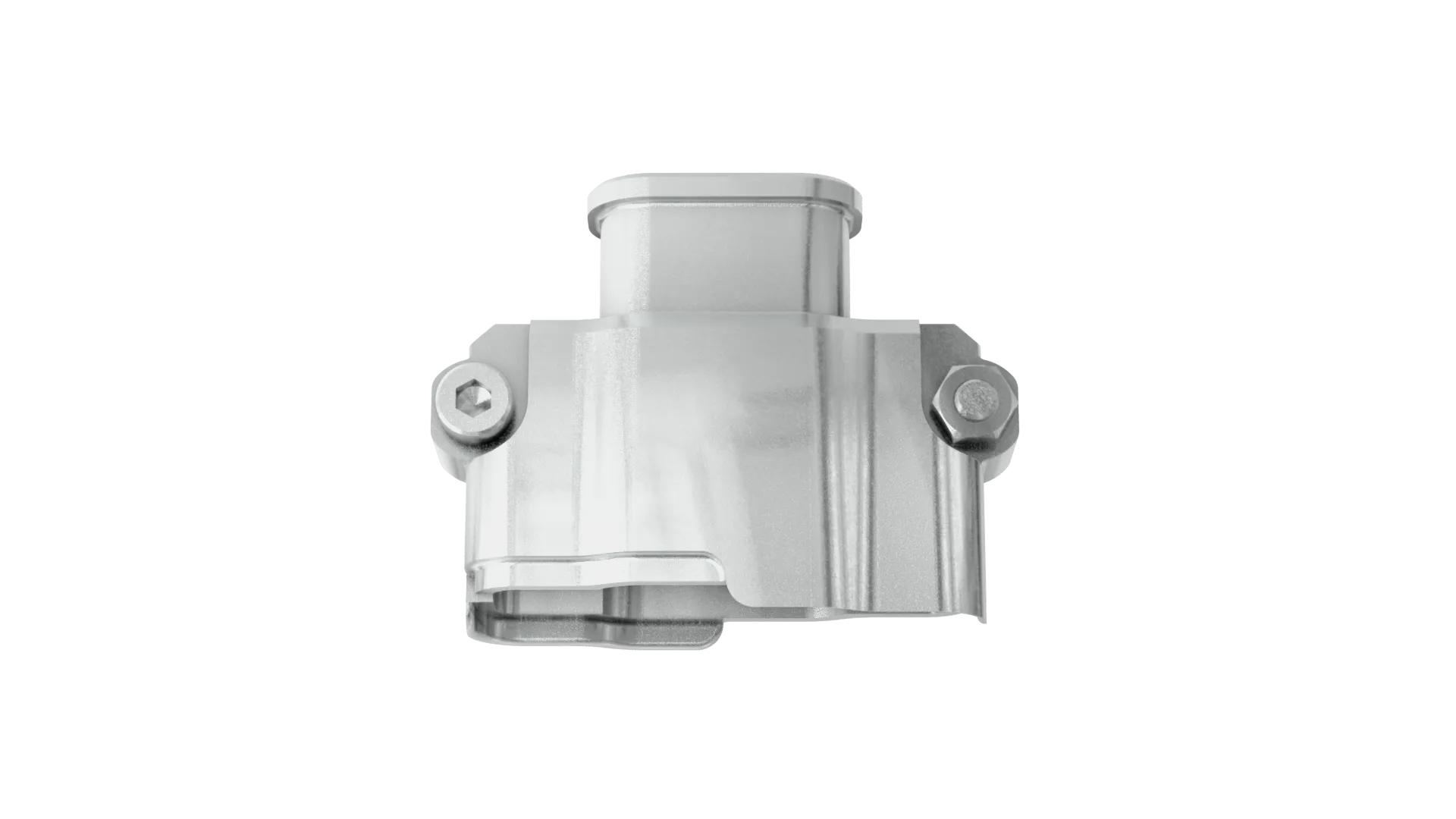

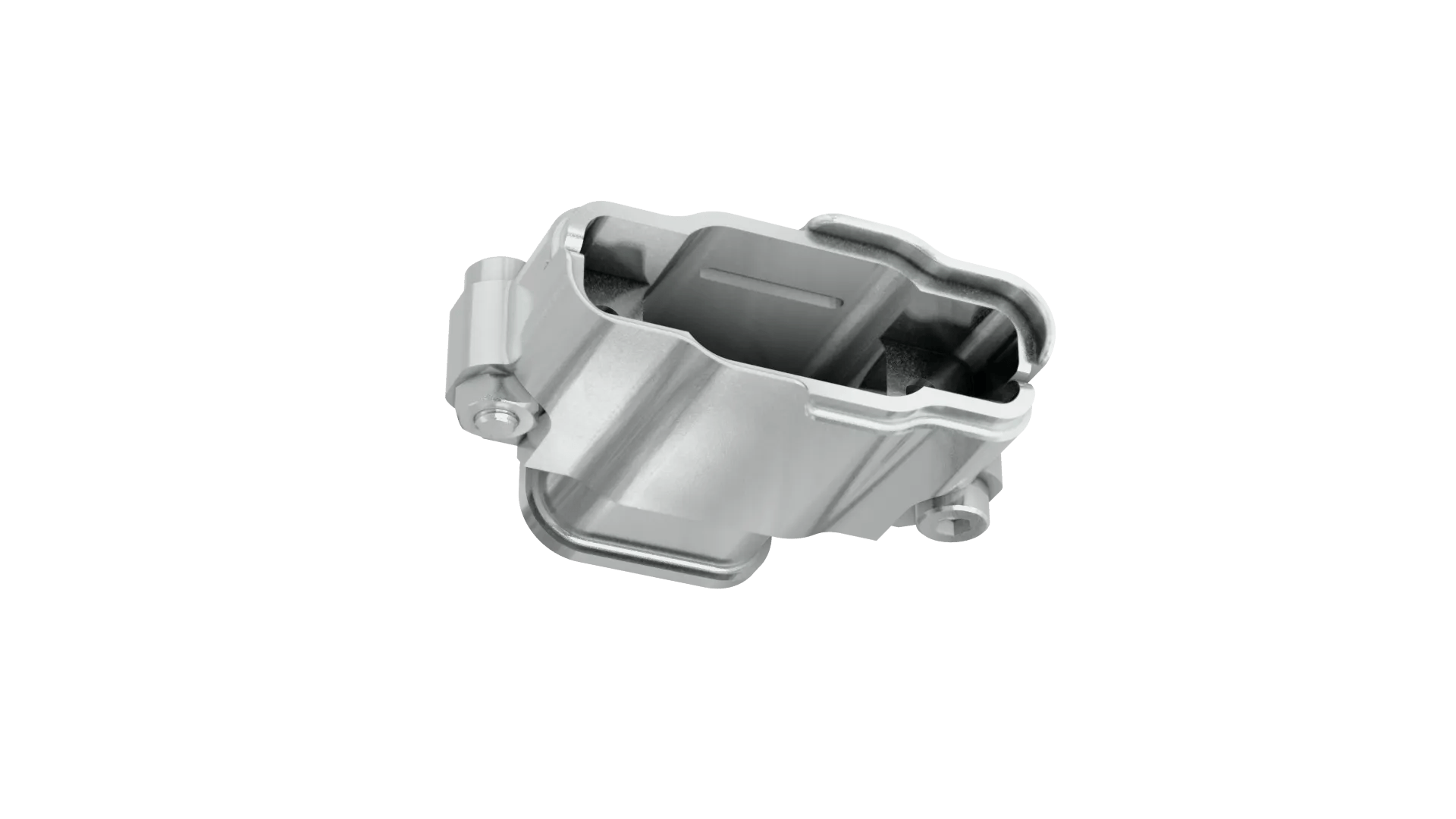

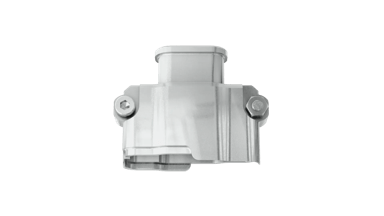

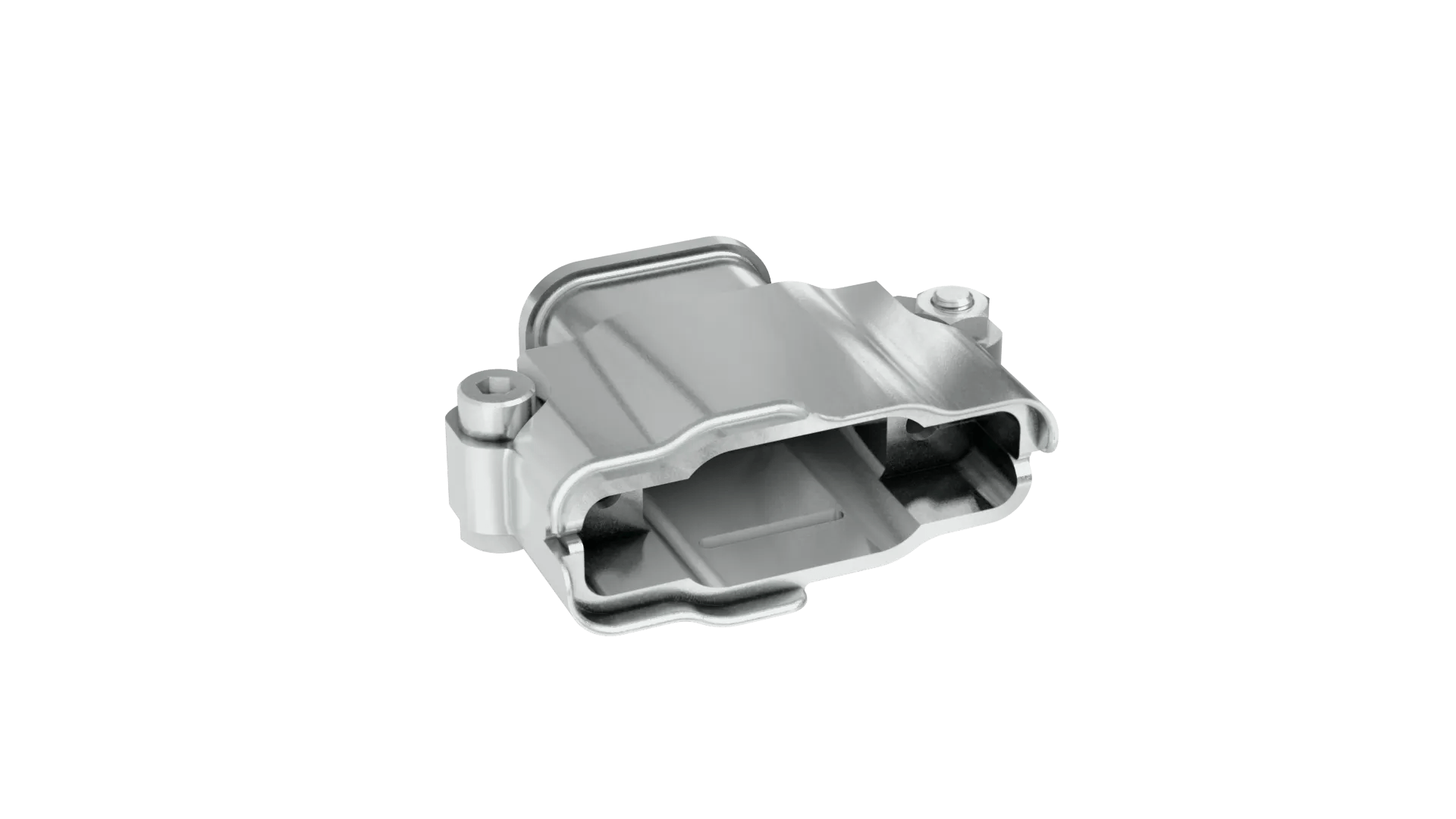

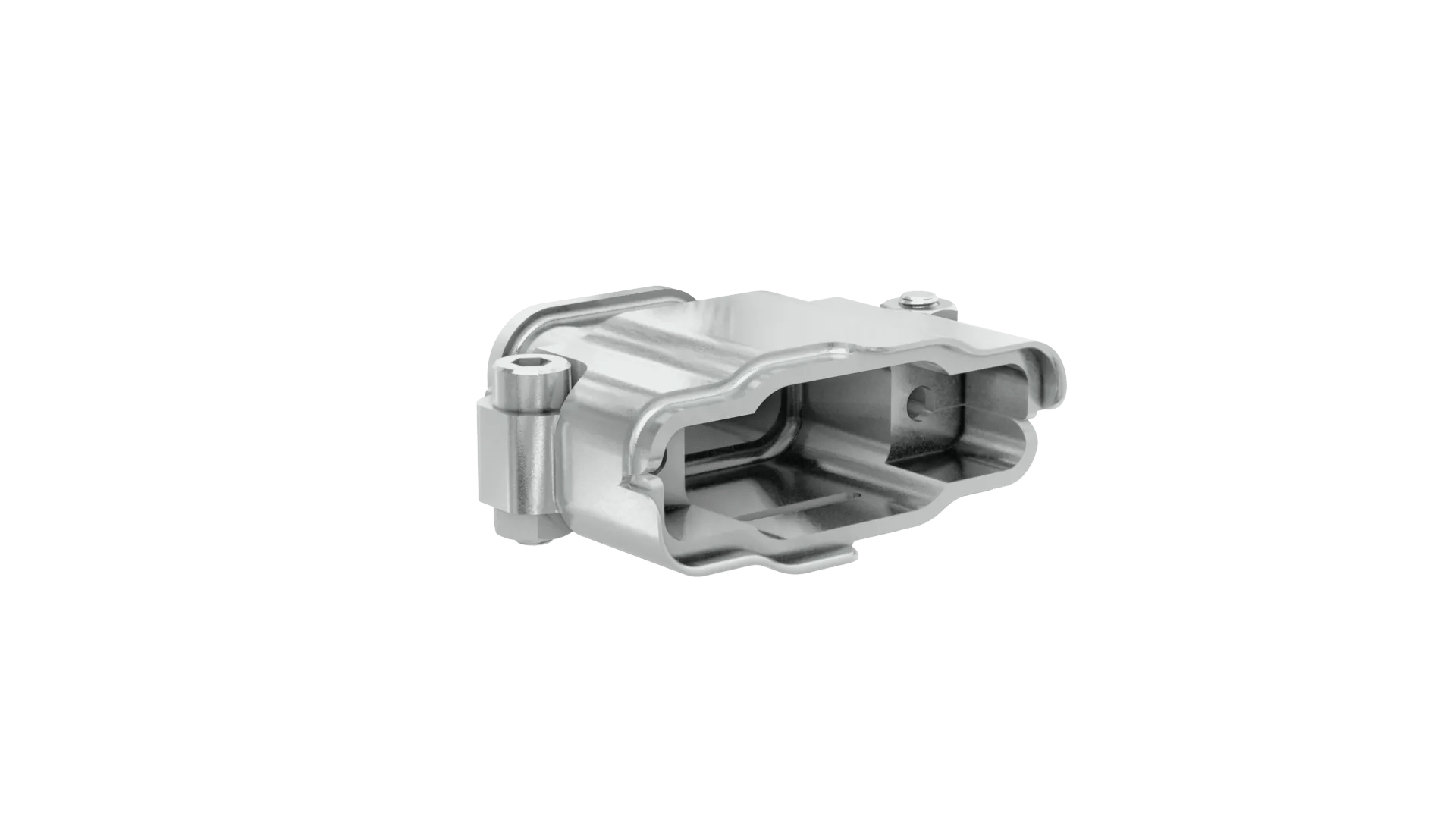

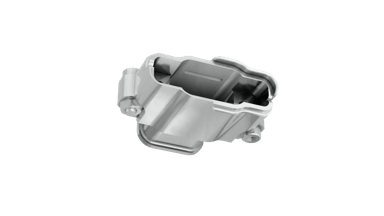

Metal Backshell kit for cable connectors – includes 2 metal hood halves and short screws & nuts for joining the halves.
Use with the following 2-contact housings: female cable housing KA1-2010298F1 or male cable housing KA1-3010298M5.
Can be fitted after cable assembly construction. Tie-band M80-9480000 available separately for attaching braid.

KA1-9700200 - 2 Pos. Cable Metal Backshell for Kona

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

8.50mm (0.335")

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Operating Temperature:

-65°C to +150°C

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Housing Material:

Aluminium Alloy

Housing Colour:

Nickel

Packaging Style:

Bulk/Loose

Individual Part Weight:

17.343g

Overall Dimensions (L x W x D) in mm:

42.60 x 15.00 x 33.00

Frequently Asked Questions Ask a Question

If you need to tighten your fixings to a torque setting for longer term installation, our recommendation is 22-25Ncm for both screw-locks and board/panel mount fixings. You can find this value stated in the Component Specification for Kona.

Was this answer useful?

Downloads

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download
