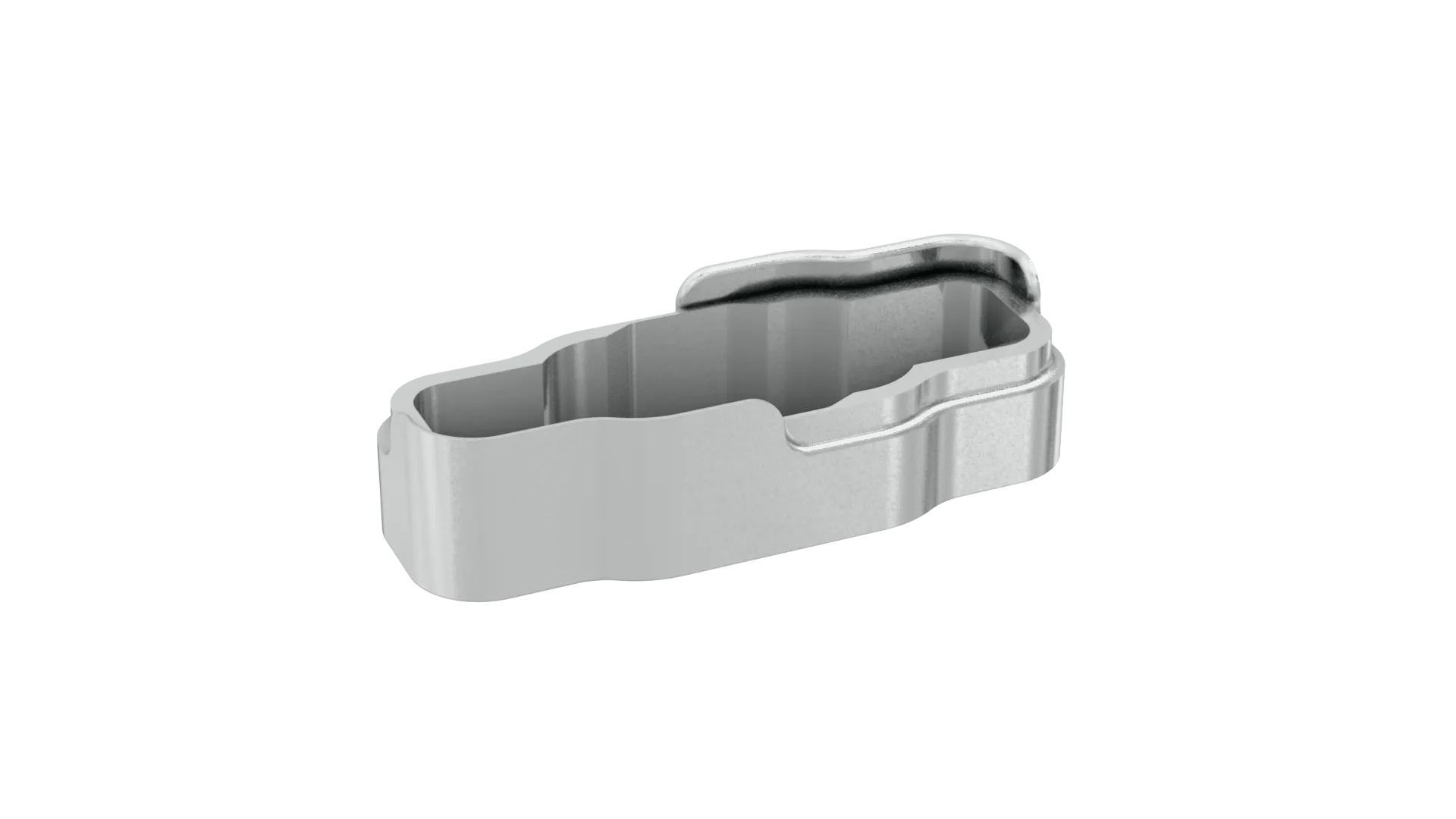

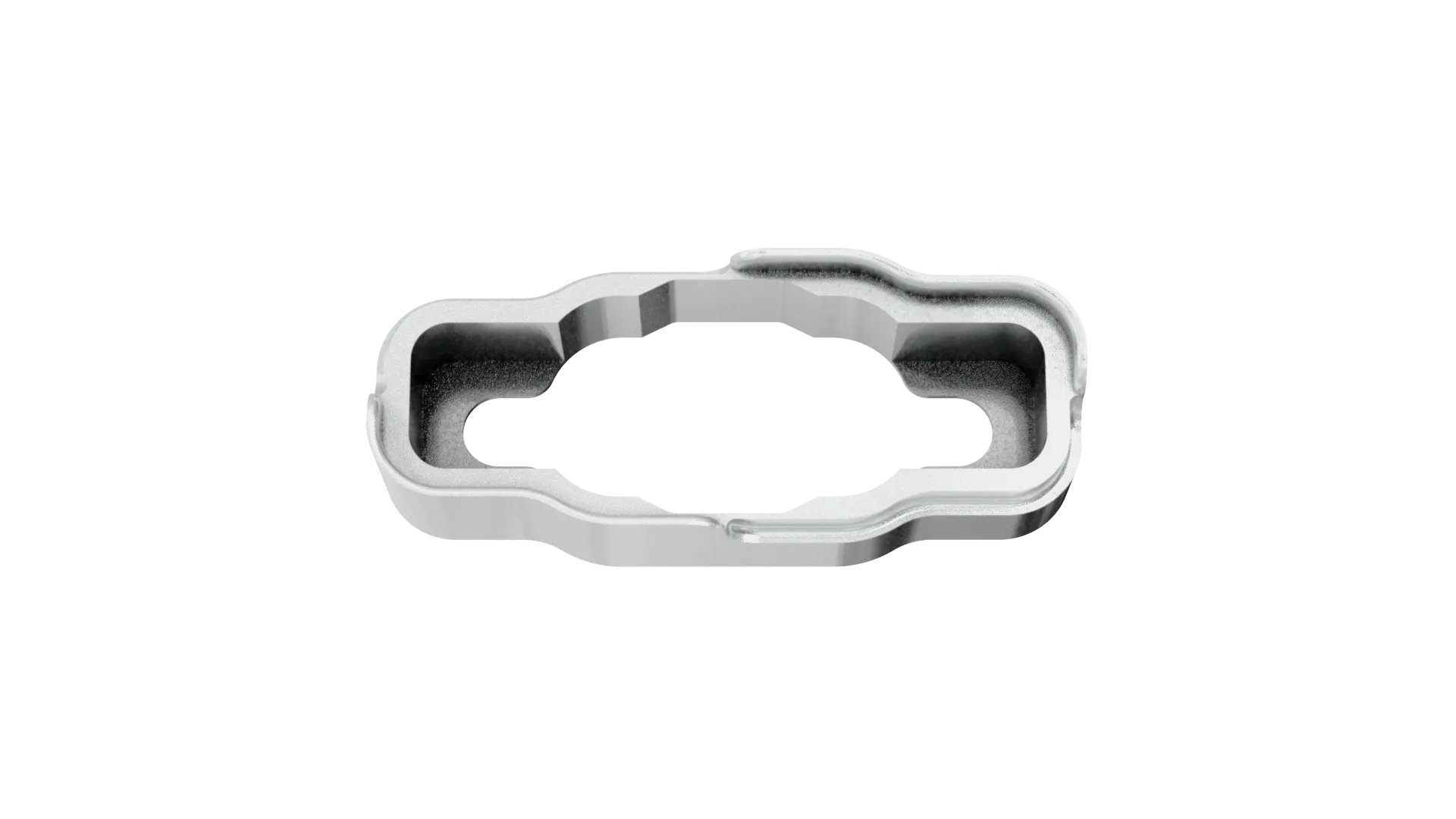

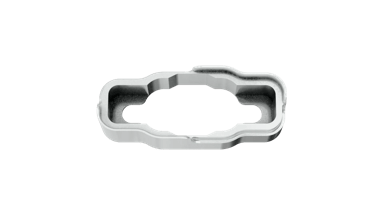

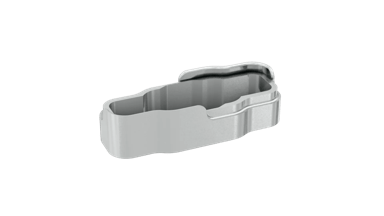

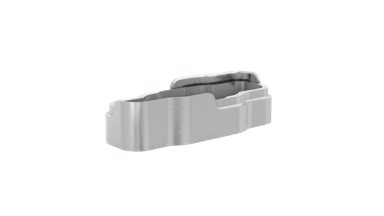

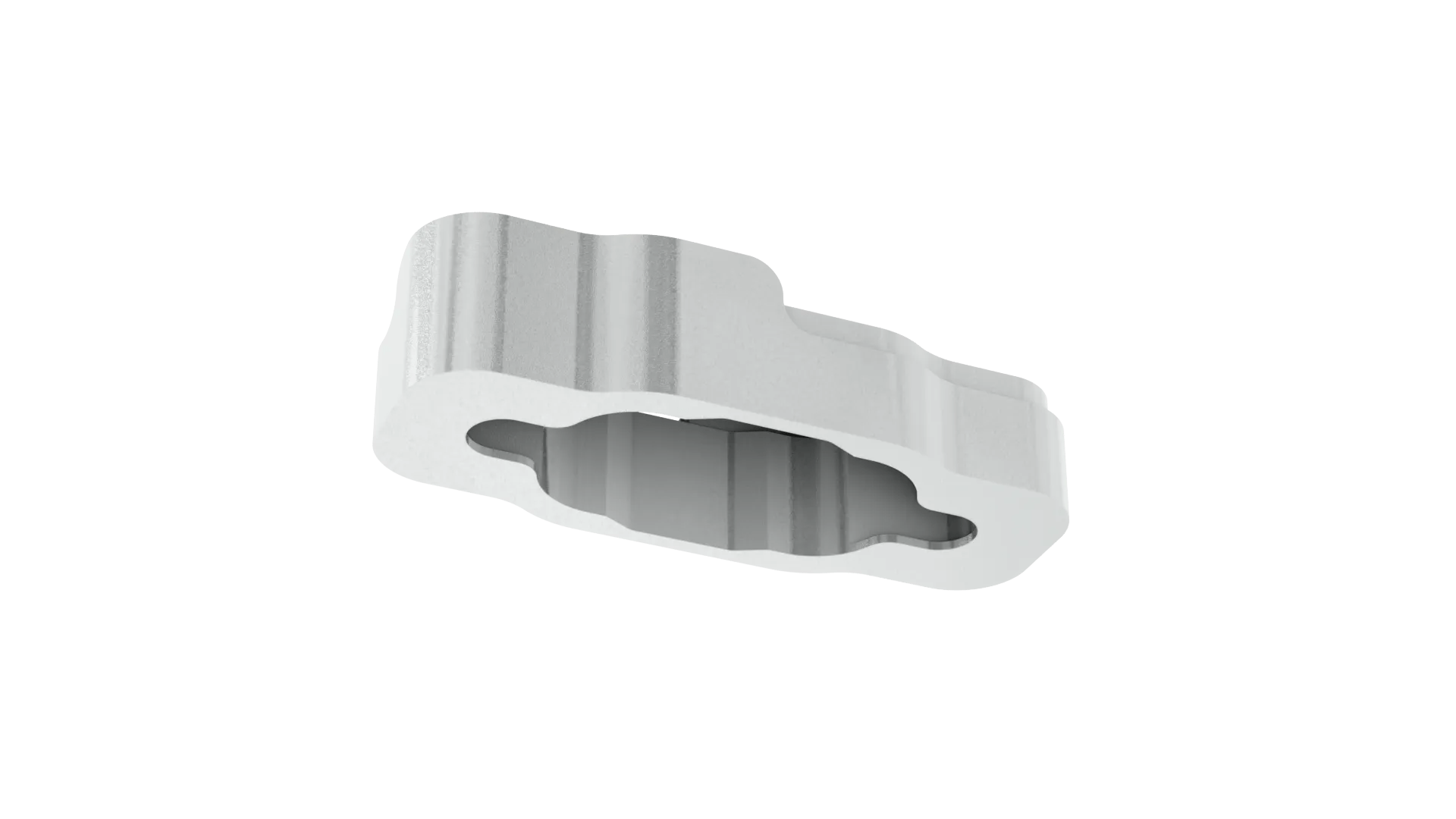

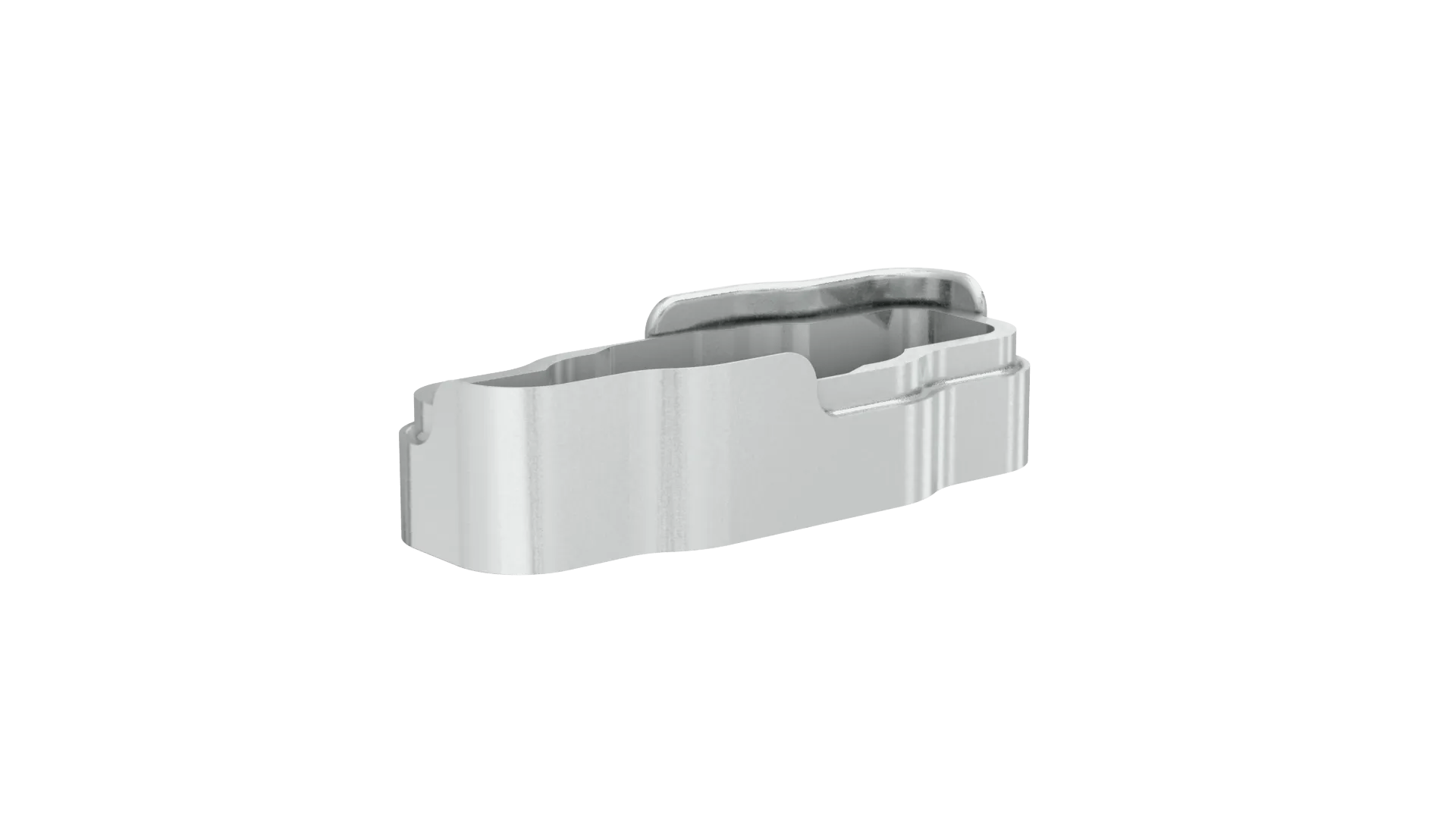

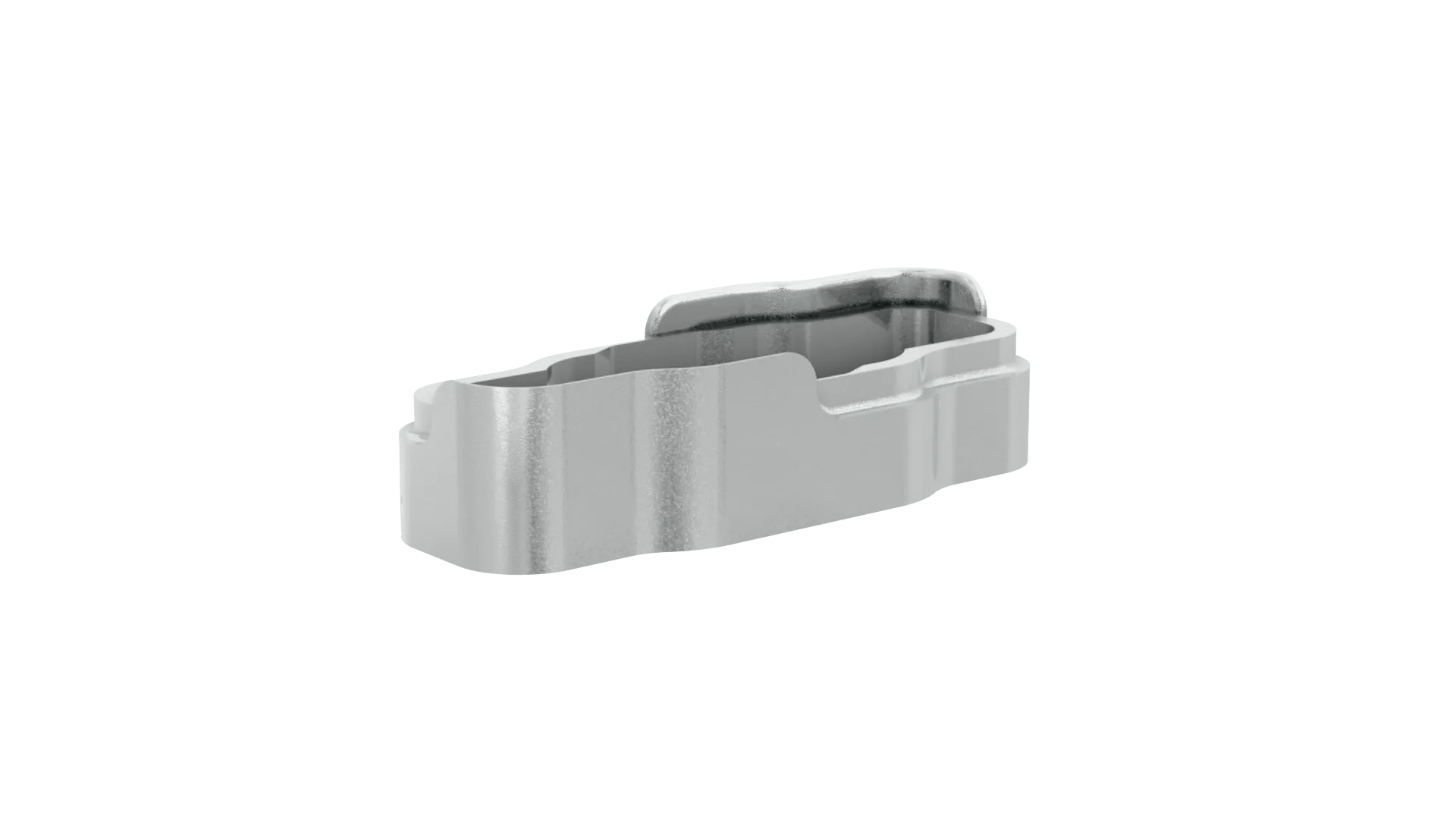

Aluminium alloy Metal Backshell with nickel plating, for front panel mount (straight cable) or board mount (vertical PCB) connectors. Suitable for female reverse fix or male standard gender fixings, mate with cable backshells for full shielding.
Use with the following 2-contact connectors or housings: male PCB connector KA1-MV10205M1 or KA1-MV20205M1; female cable front panel mount KA1-2010298F2 or male cable front panel mount KA1-3010298M1.
If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Number of Rows
1
Connector Orientation
Vertical
Country of Origin
GB
Side Stackable
No
Number of Power/Coax Contacts
2
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Cuttable
No
Materials
Housing Material
Aluminium Alloy
Packaging Style
Bulk/Loose
Housing Colour
Nickel
Dimensions
Contact Pitch
8.50mm (0.335")
Weight
3.682g
Dimensions
37.50 x 15.00 x 9.50
Downloads
Technical Documentation
Technical Drawing / Datasheet - KA1-950.pdf
C052XX Component Specification - Kona KA1 Series (8.50mm pitch High-Reliability)
