KA1-4300000

KA1-4300000

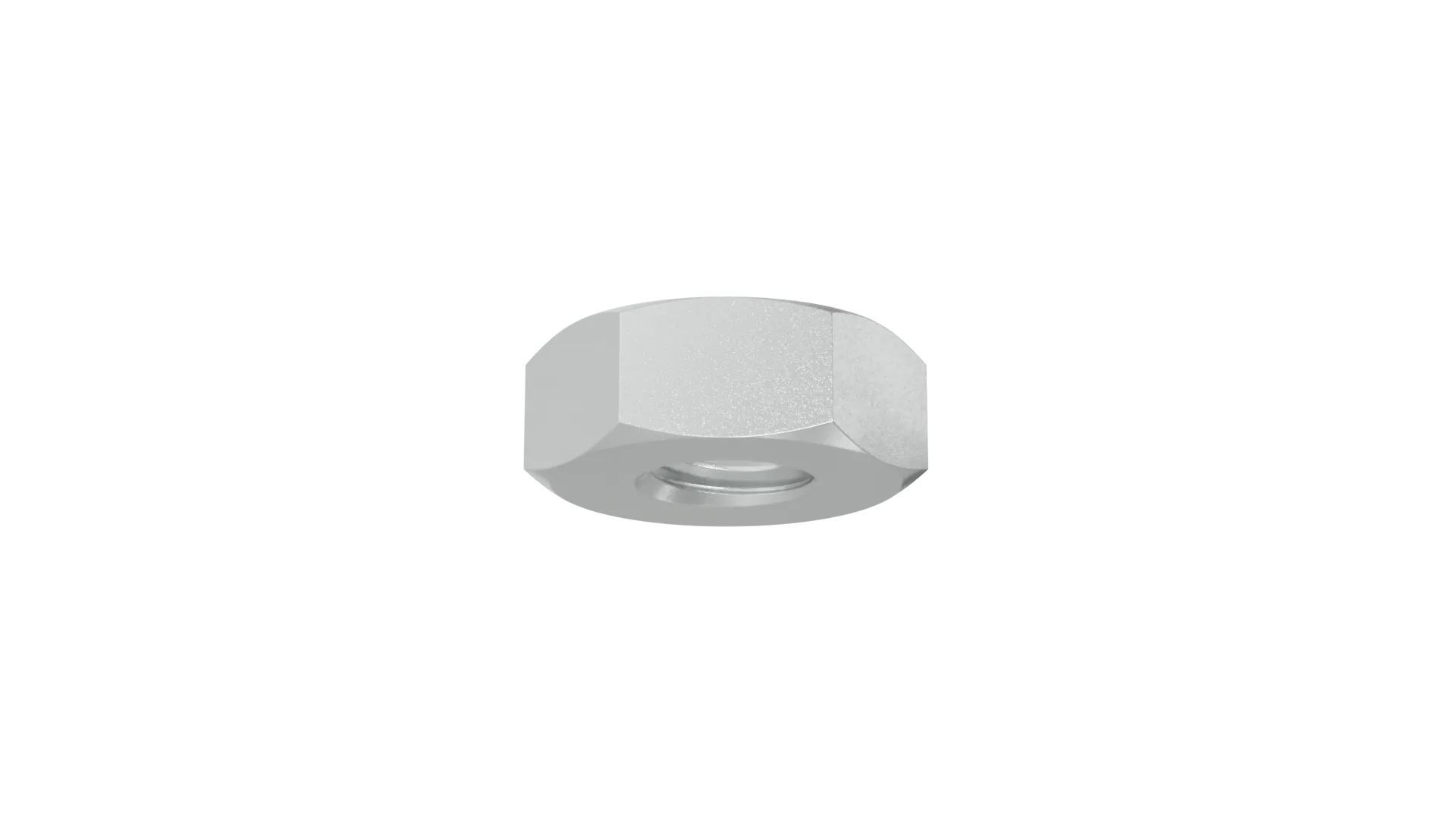

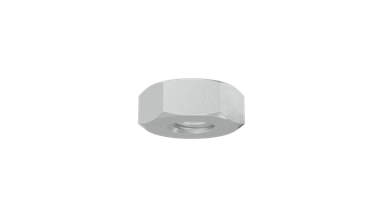

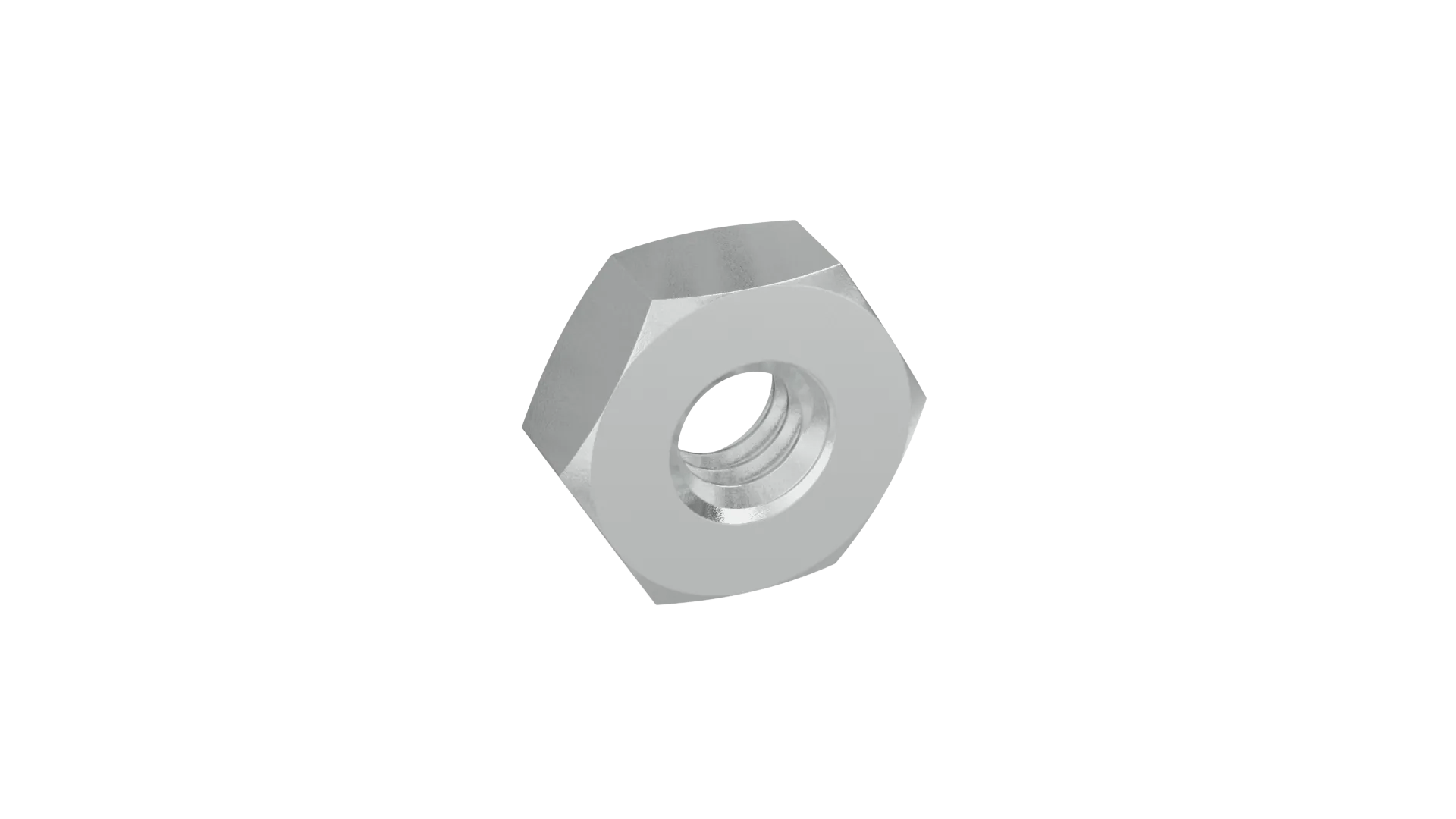

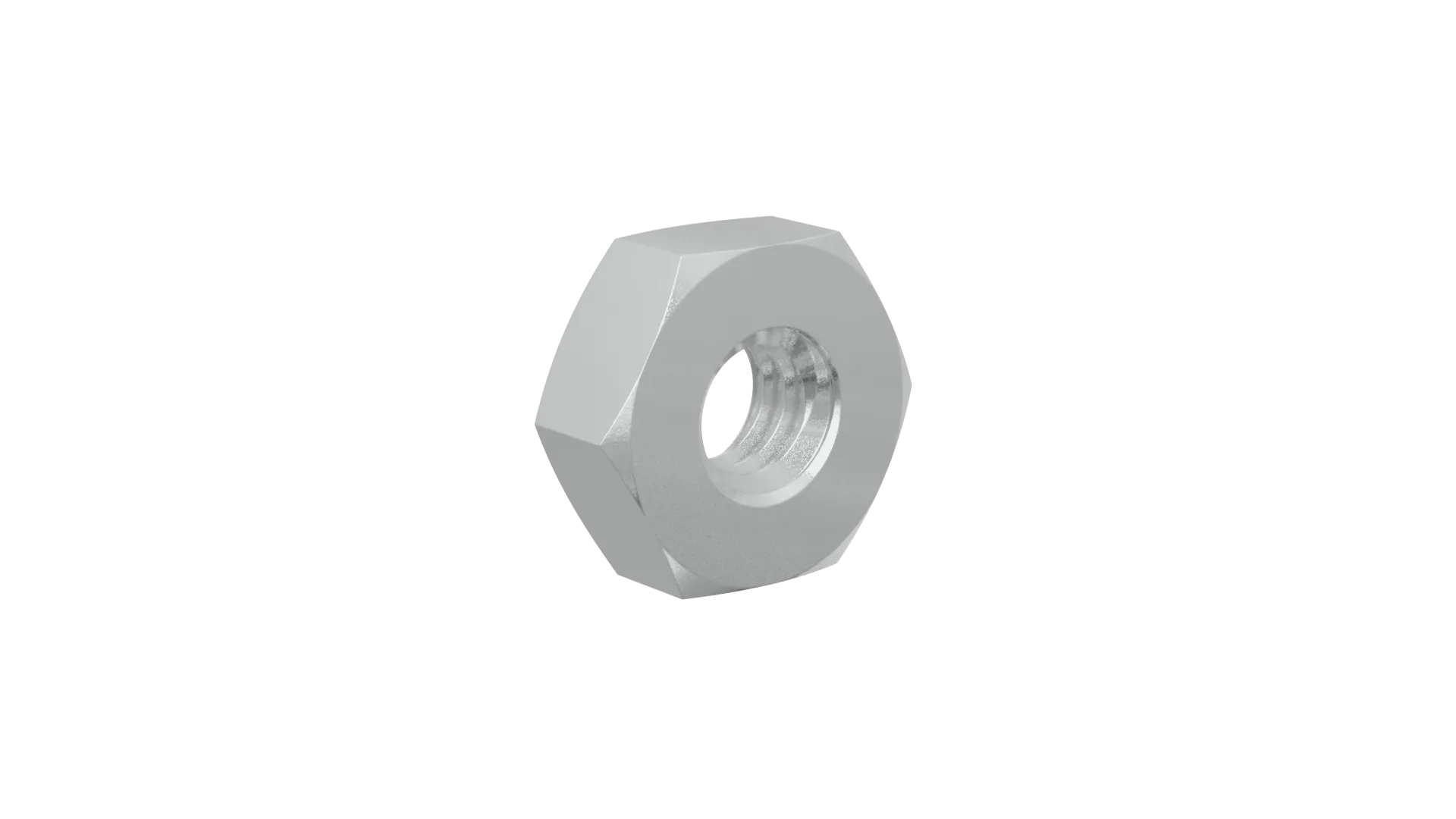

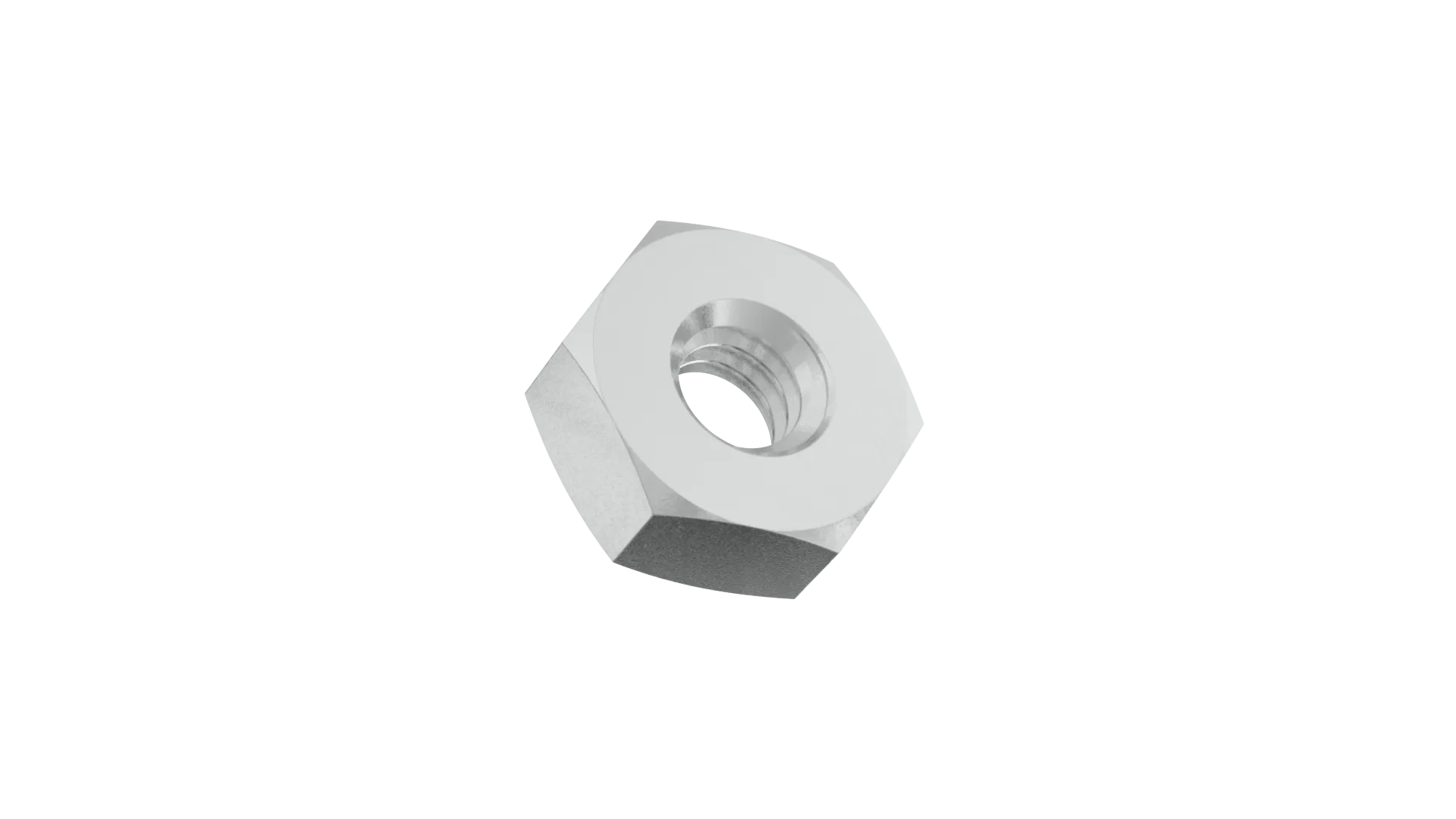

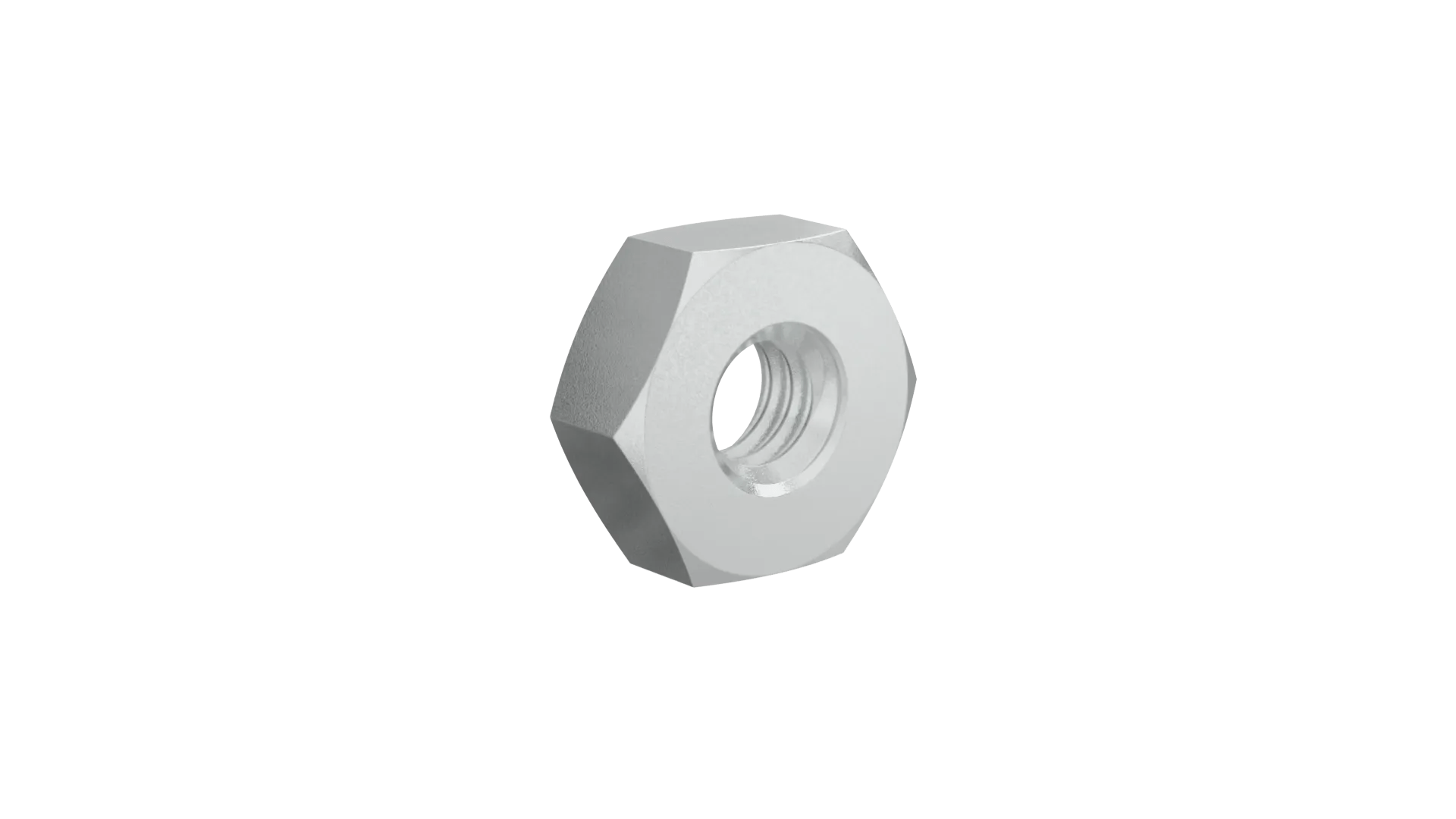

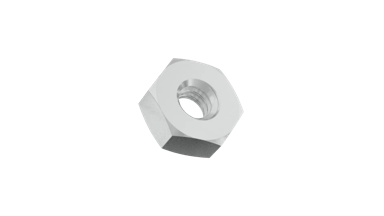

Hex M3 Nut

KA1-4300000

Hex M3 Nut

8.50mm Pitch High-Reliability Connector - Kona

  • Hexagonal nut, for use with studs for board-mount strain relief or panel mount fixing. Also use with cable backshells to secure the two halves.

  • M3 thread size, for use with Kona connectors.

  • Supplied with cable backshell kits KA1-970 metal backshells - use this part number for spares.

View Technical Details

Checking stock availability...

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • Country of Origin:

    GB

  • Operating Temperature:

    -65°C to +150°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

Materials

  • Base Material of Contact:

    Stainless Steel

  • Packaging Style:

    Bulk/Loose

Dimensions

  • Contact Pitch:

    8.50mm (0.335")

  • Weight:

    0.35g

  • Dimensions:

    2.30 x 5.5 A/F Hex

  • Thread Size:

    M3

Downloads

Technical Documentation

  • Technical Drawing / Datasheet - KA1-430.pdf

  • C052XX Component Specification - Kona KA1 Series (8.50mm pitch High-Reliability)

Product Information

  • Product Training Module - Overview Guide to the Kona range + 8.5mm pitch Power High-Reliability

  • Product Datasheet - Kona range (HRi)

Test Reports

  • Test Report HT076 - Kona (KA1 Series) - Electrical + Mechanical and Environmental

Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • Material composition for KA1-4300000 product

  • RoHS - KA1-4300000
