KA1-4200000
Panel Mount or Board Mount M3 Bolt
8.50mm Pitch High-Reliability Connector - Kona
Loading… Check availability
0 similar products View products
Traceparts account required
Product Description

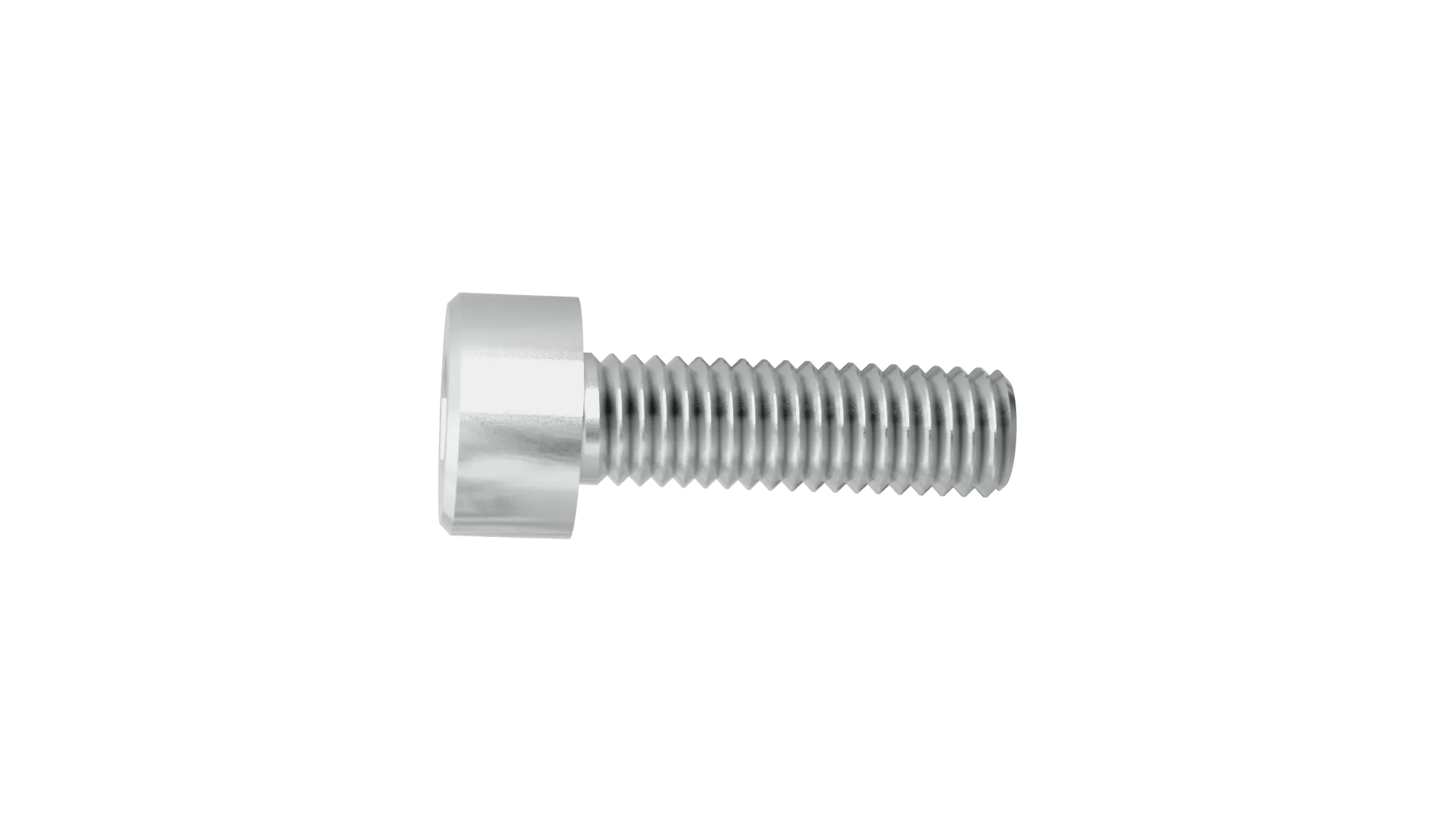

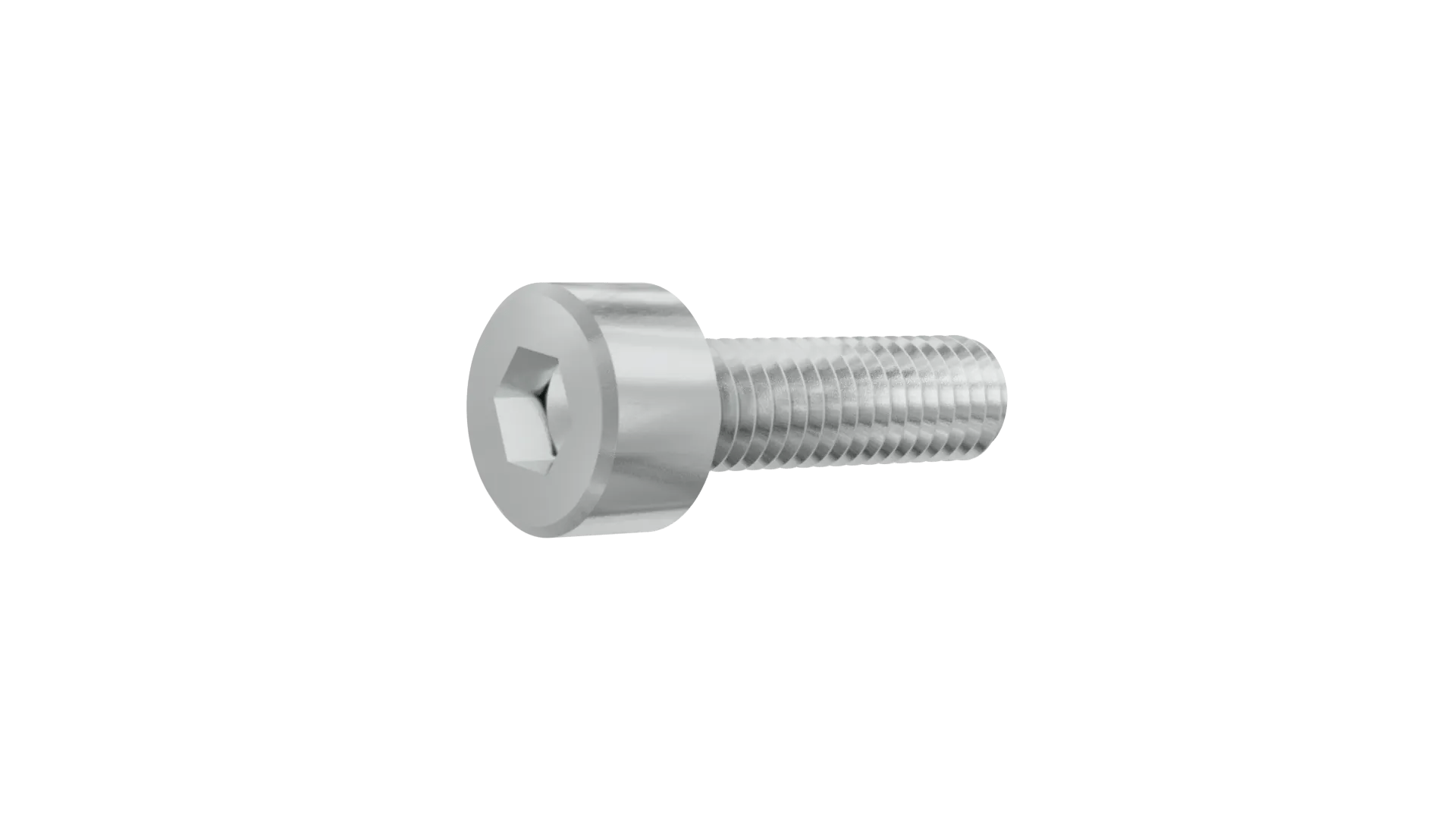

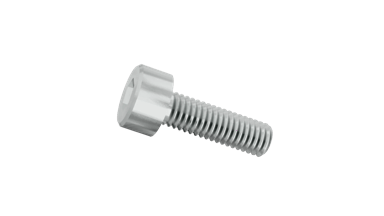

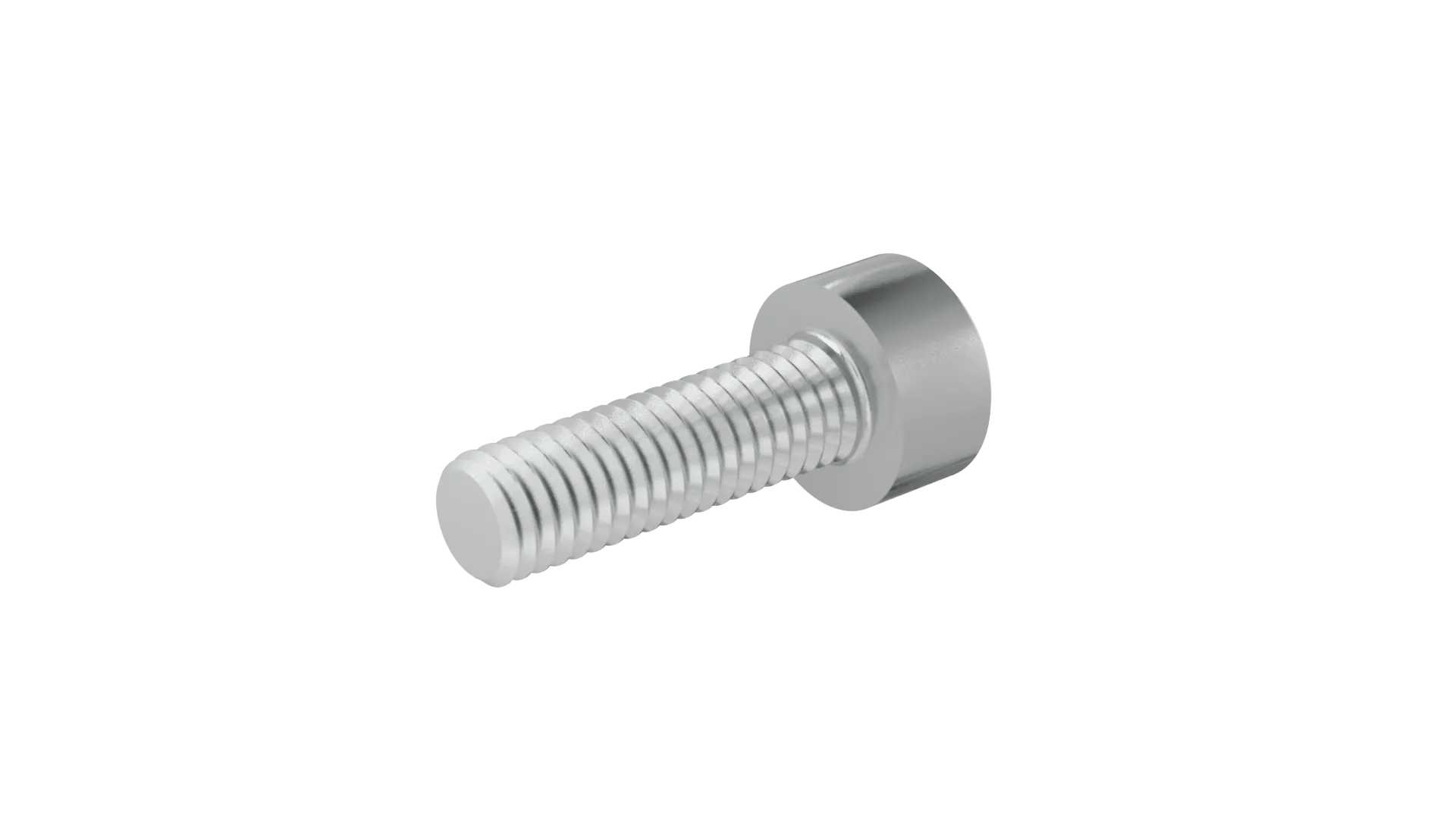

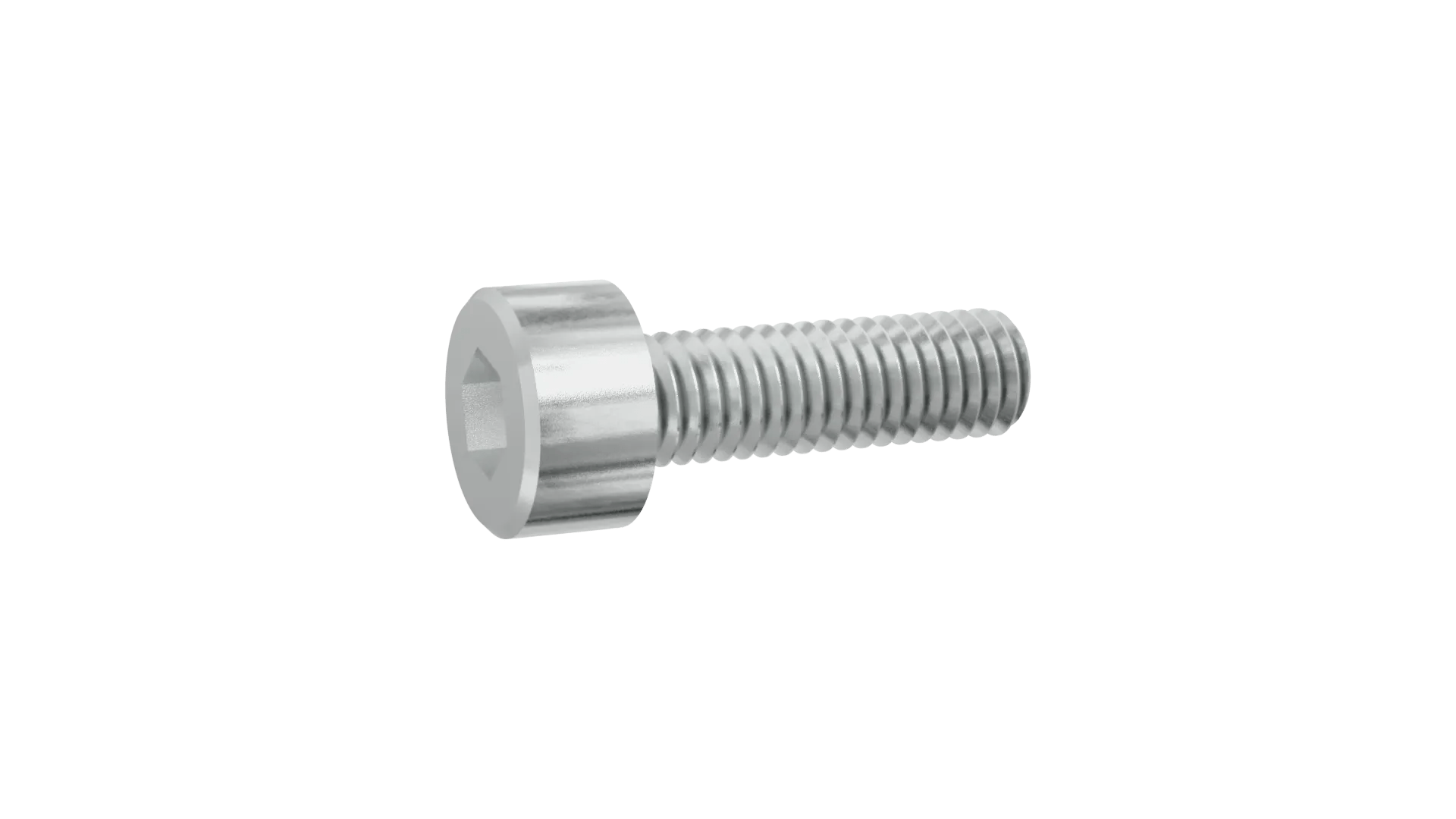

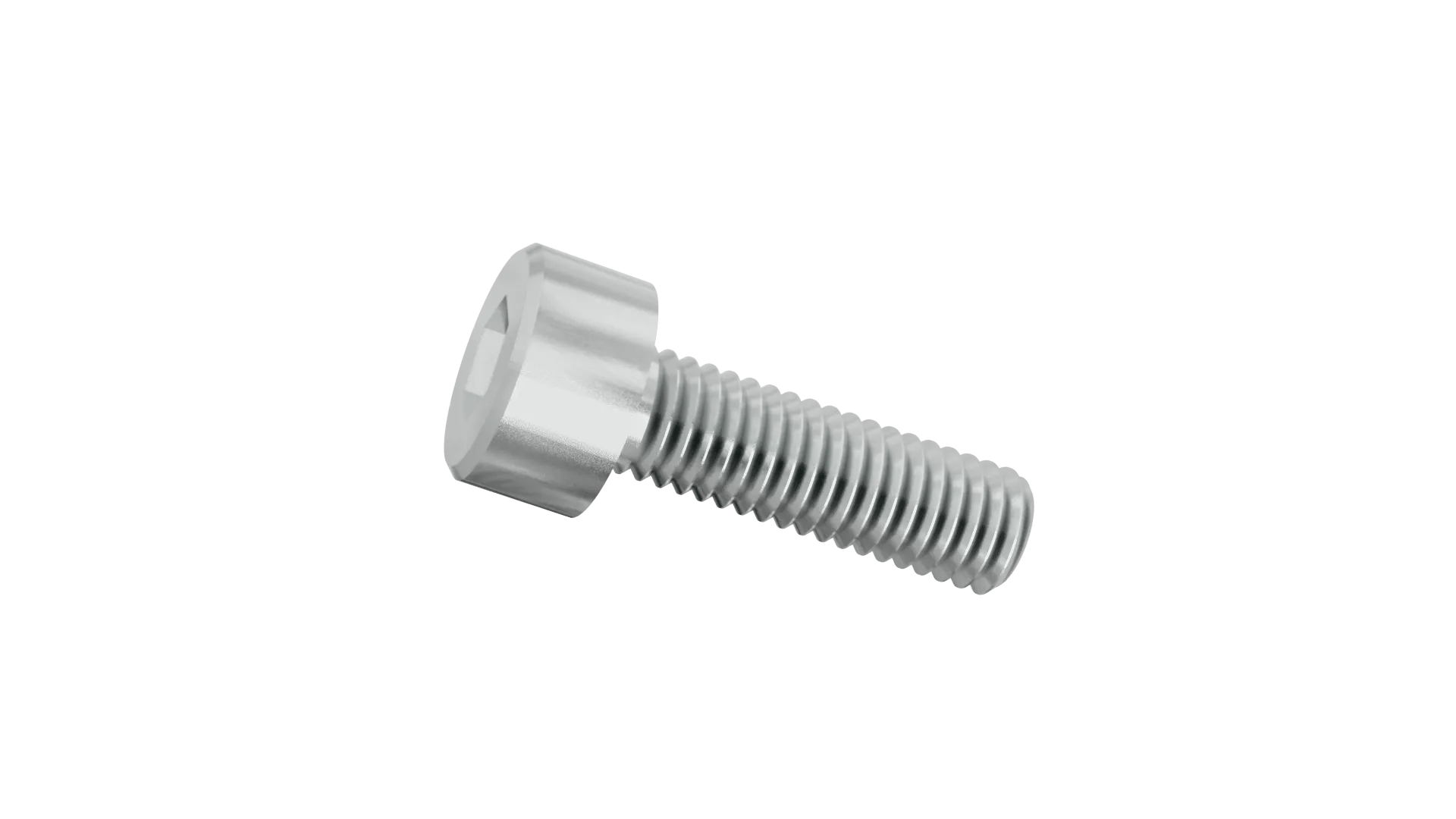

- 10mm long bolt with hexagon socket head, for use with connectors for board-mount strain relief or panel mount fixing. Also use with cable backshells to secure the two halves.
- M3 thread size, for use with Kona connectors.
- Supplied with cable backshell kits KA1-970 metal backshells – use this part number for spares.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
8.50mm (0.335")
Operating Temperature:
-65°C to +150°C
Materials
Base Material of Contact:
Stainless Steel
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.97g
Overall Dimensions (L x W x D) in mm:
12.90 x Ø5.50
Male Stud Length:
10.00mm
Thread Size:
M3
Frequently Asked Questions Ask a Question
What torque value do you recommend for the screw-locks?
If you need to tighten your fixings to a torque setting for longer term installation, our recommendation is 22-25Ncm for both screw-locks and board/panel mount fixings. You can find this value stated in the Component Specification for Kona.
