Home > KA1-3010298M5
Active Product

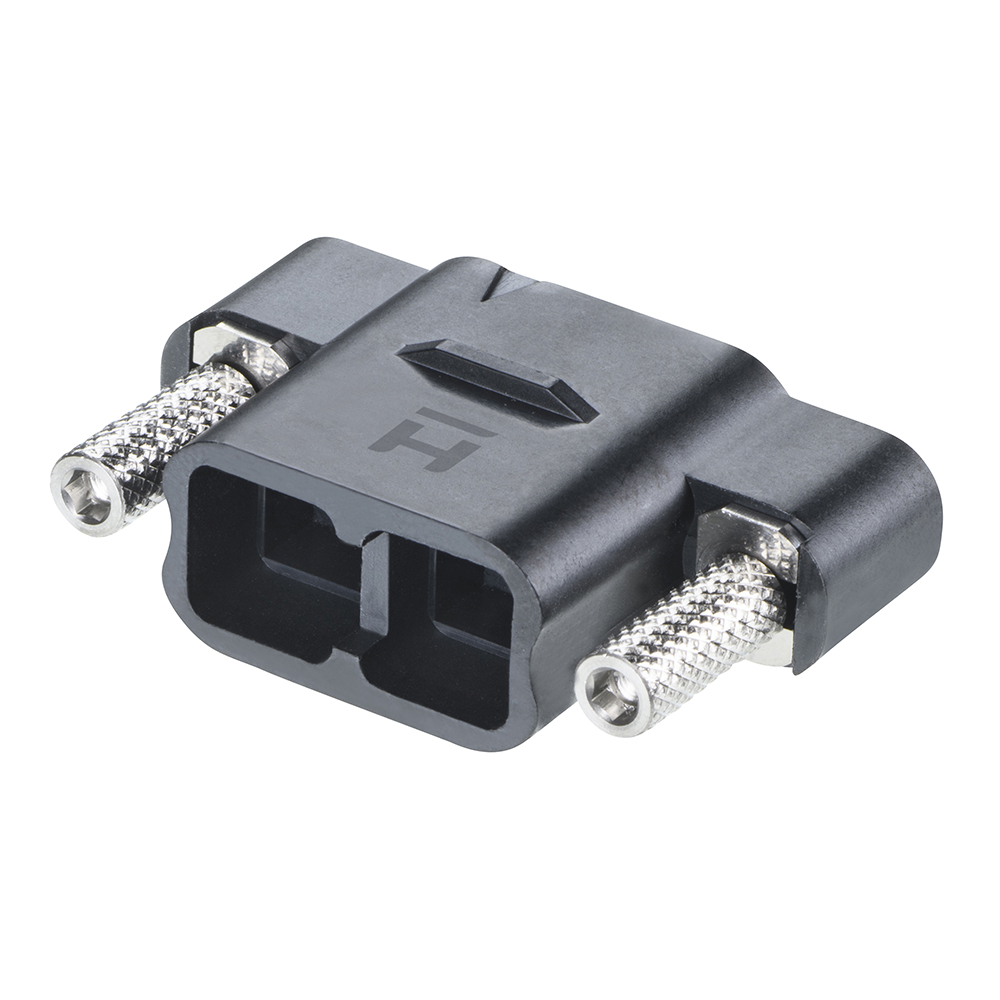

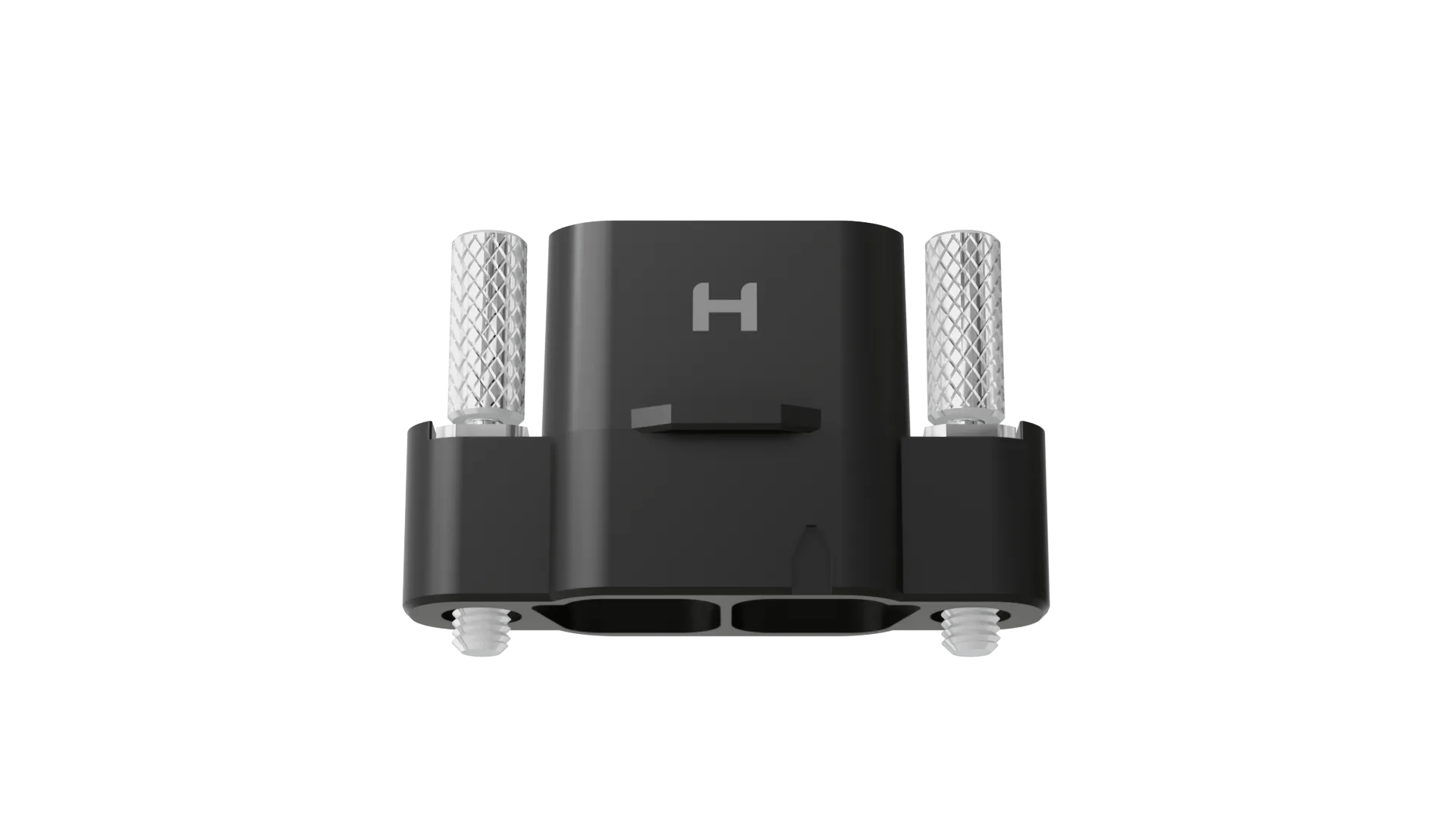

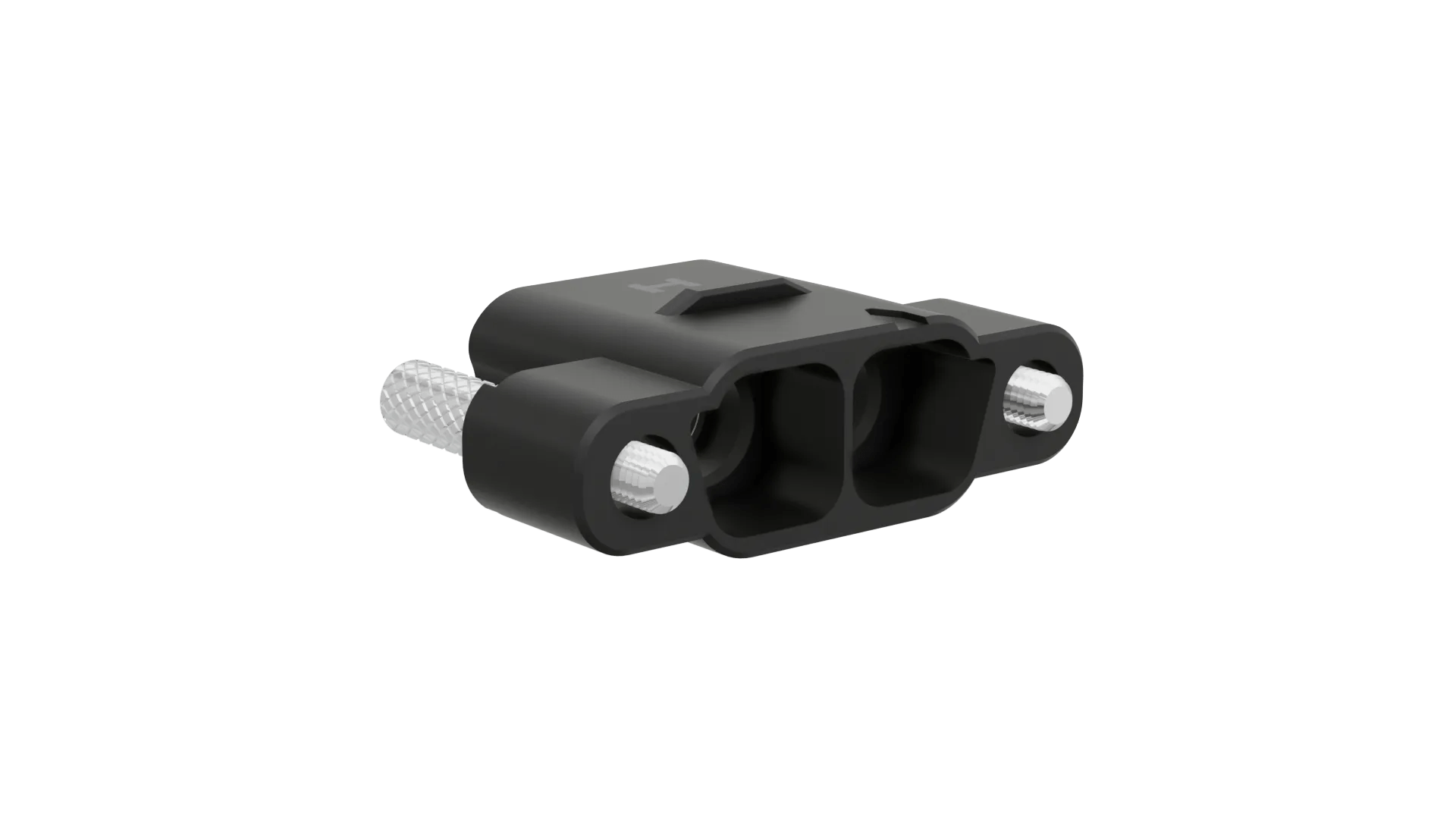

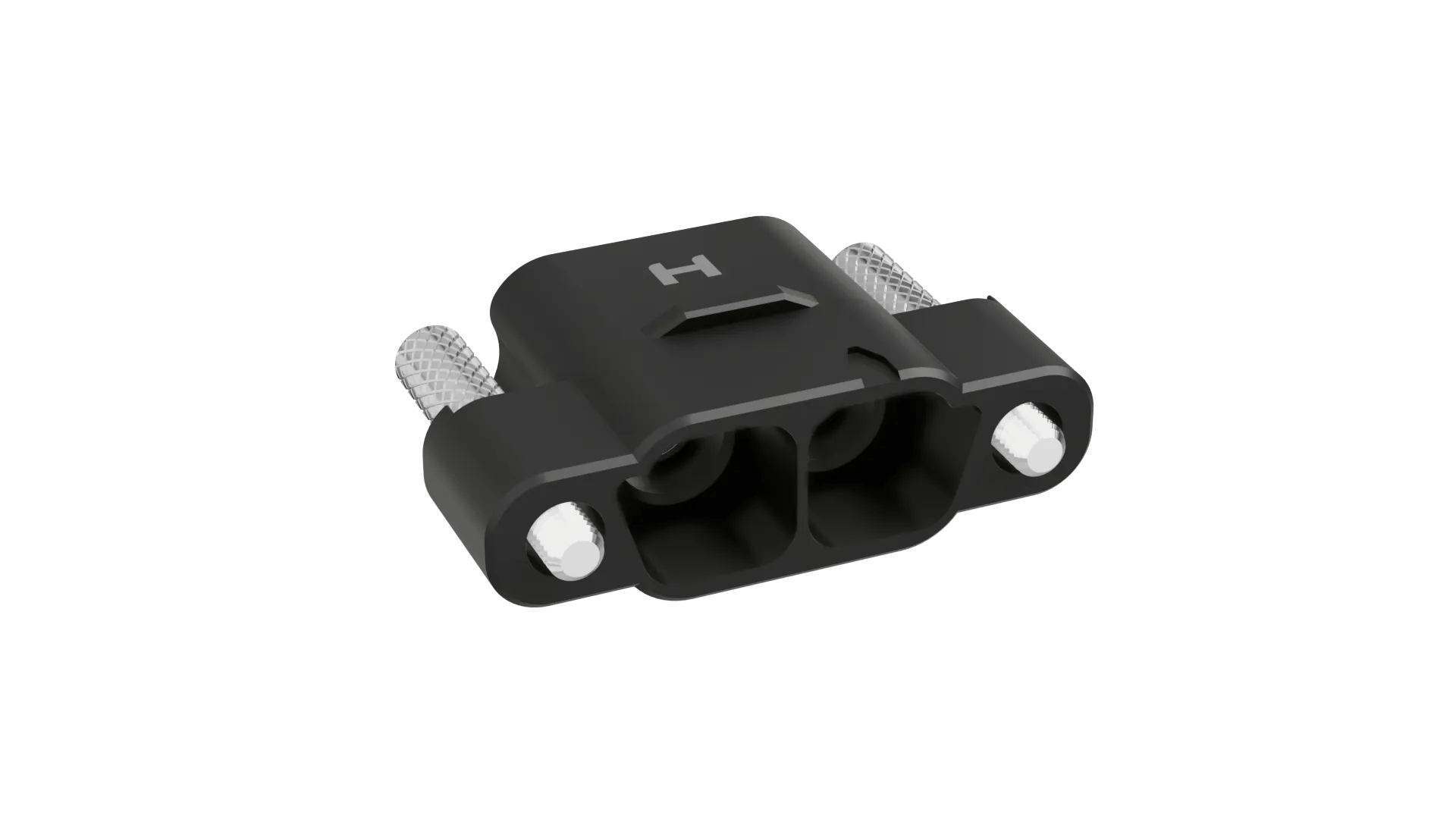

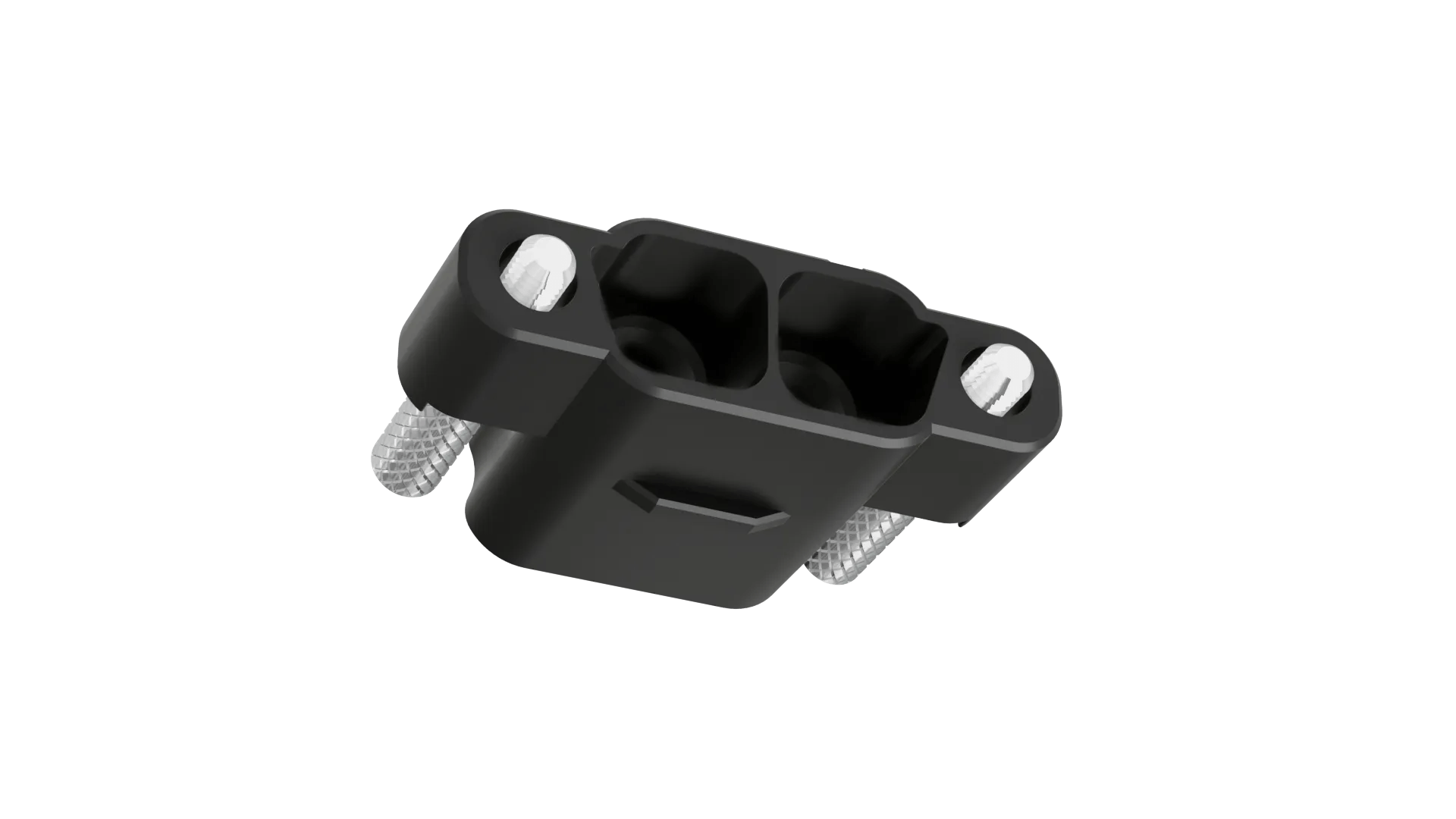

KA1-3010298M5

2 Pos. Male SIL Cable Housing, Reverse Fix Thumbscrews

8.50mm Pitch High-Reliability Connector - Kona

Add to Favorites

Loading…   Check availability

7 similar products View products

Traceparts account required

Product Description

  • Single Row Polarized Male Housing with individually shrouded recessed contact locations – 2 contact. Includes fitted reverse fix mate-before-lock thumbscrews with added Hex Socket head.
  • Contacts to be purchased separately – use with 8 AWG power solder contact KA1-1410005.
  • For complete pin numbering or pin out information, see Component Specification C052XX.

Technical Details

Specification

Contact Pitch:

8.50mm (0.335")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Current Rating:

60A max per contact

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Floating Thumbscrew with Hex Socket Head (Reverse Fix)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

7.05g

Overall Dimensions (L x W x D) in mm:

33.00 x 12.50 x 22.20

Thread Size:

M3

Frequently Asked Questions Ask a Question

On the Kona series is the temperature rise shown in the test data the contact temperature rise or overall connector temperature rise?

In the Test Report Summary HT076, each connector tested is wired in series, as shown in the diagram and explained in section 3.2. This means the current passes through all contacts in each size connector tested, so the temperature rise will be for the whole connector. If you need any further assistance on this, please do contact one of our Experts.

Was this answer useful?

What’s the derate curve for Kona connections?

You can find derate curves for the mated connectors in the Test Report HT076.

Was this answer useful?

What torque value do you recommend for the screw-locks?

If you need to tighten your fixings to a torque setting for longer term installation, our recommendation is 22-25Ncm for both screw-locks and board/panel mount fixings. You can find this value stated in the Component Specification for Kona.

Was this answer useful?

What tool do I need for assembling the contacts?

No tool is required for assembling the soldered contacts into the housing. We do supply an optional extraction tool if you need to remove a cable contact from the housing – see part ZA1-9040000.

Was this answer useful?

What is the pin numbering for a Kona connector?

Each housing is marked with a number 1 contact identifier in the plastic of the housing body. Once you find this, simply count along the row from that position.

Was this answer useful?

Do I need a tool to fasten these connectors together?

It’s not necessary to use a tool unless you want to achieve the recommended torque of 22-25Ncm. The female connectors are fitted with thumbscrews that can be hand-tightened, but also have a hex socket feature in the end so that a 2mm A/F hex driver (or allen key) can be used.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
