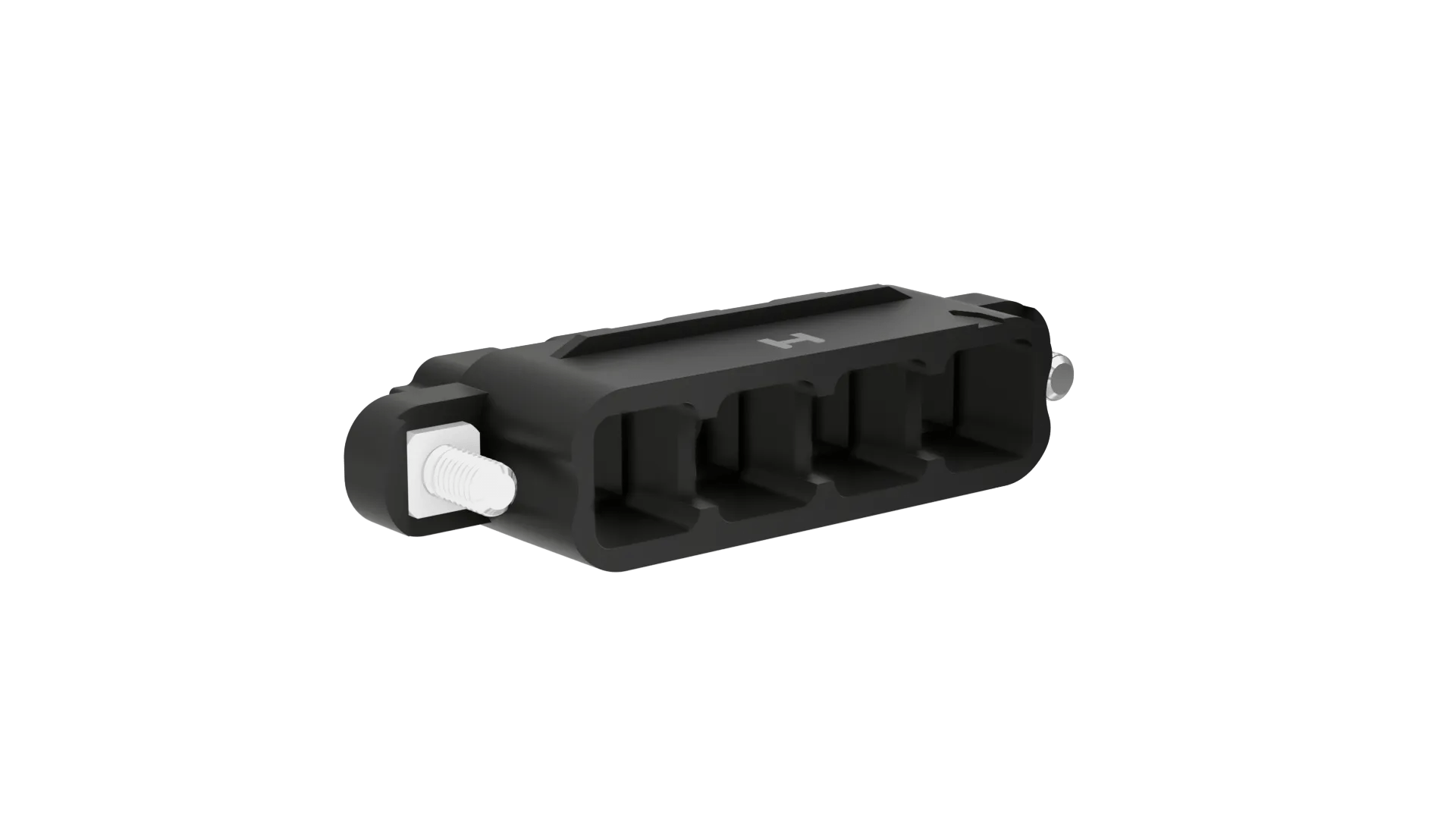

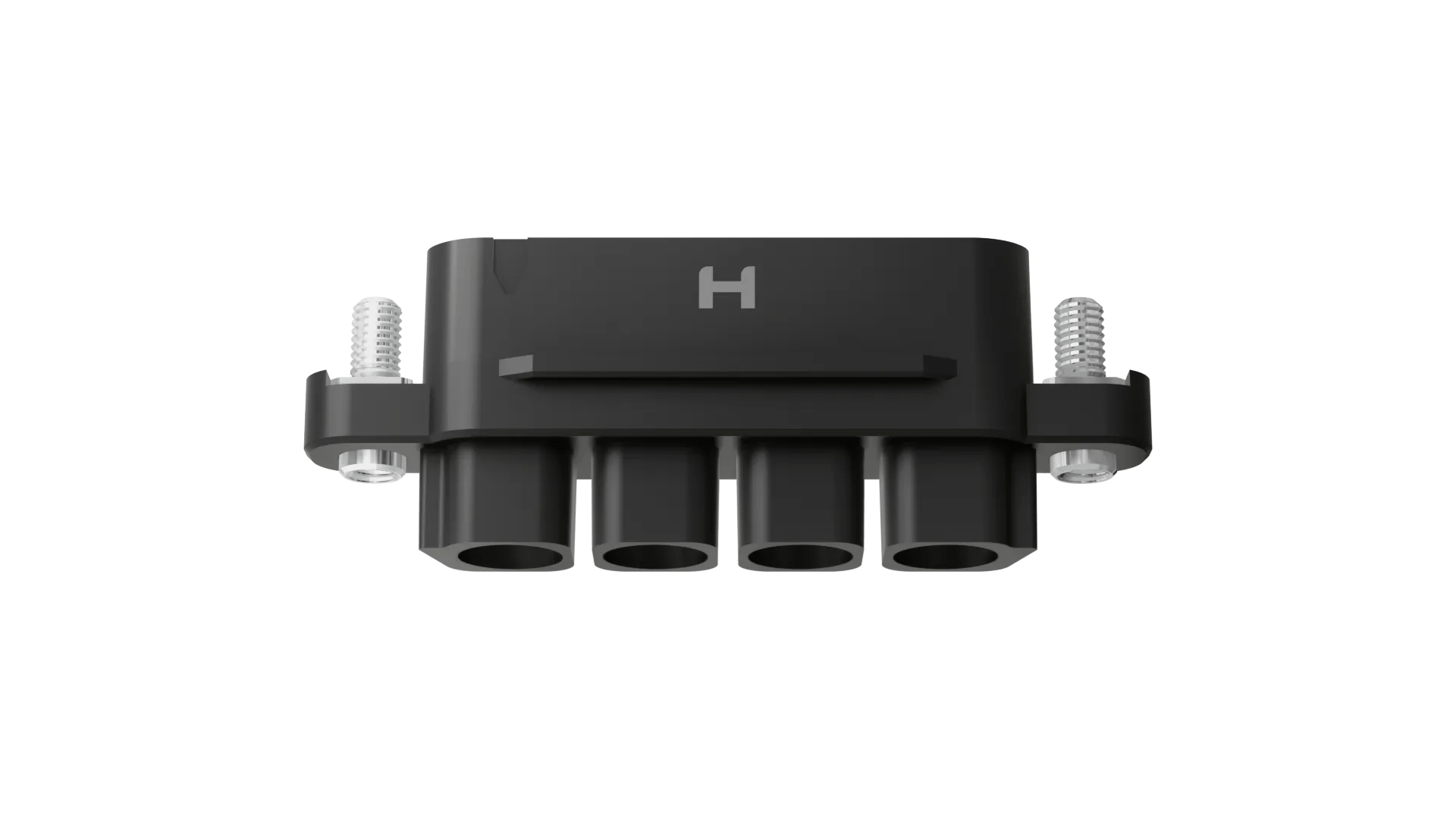

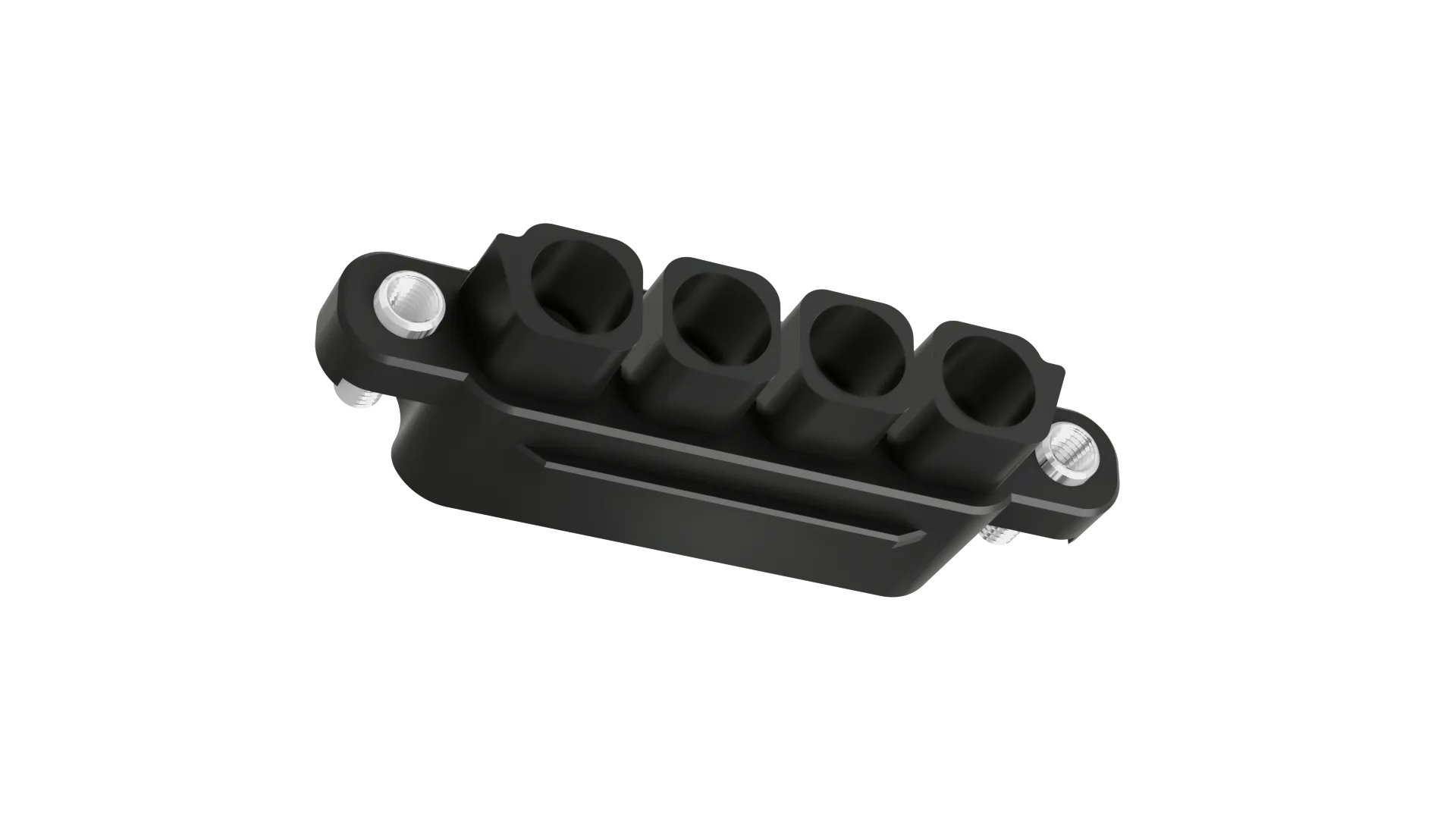

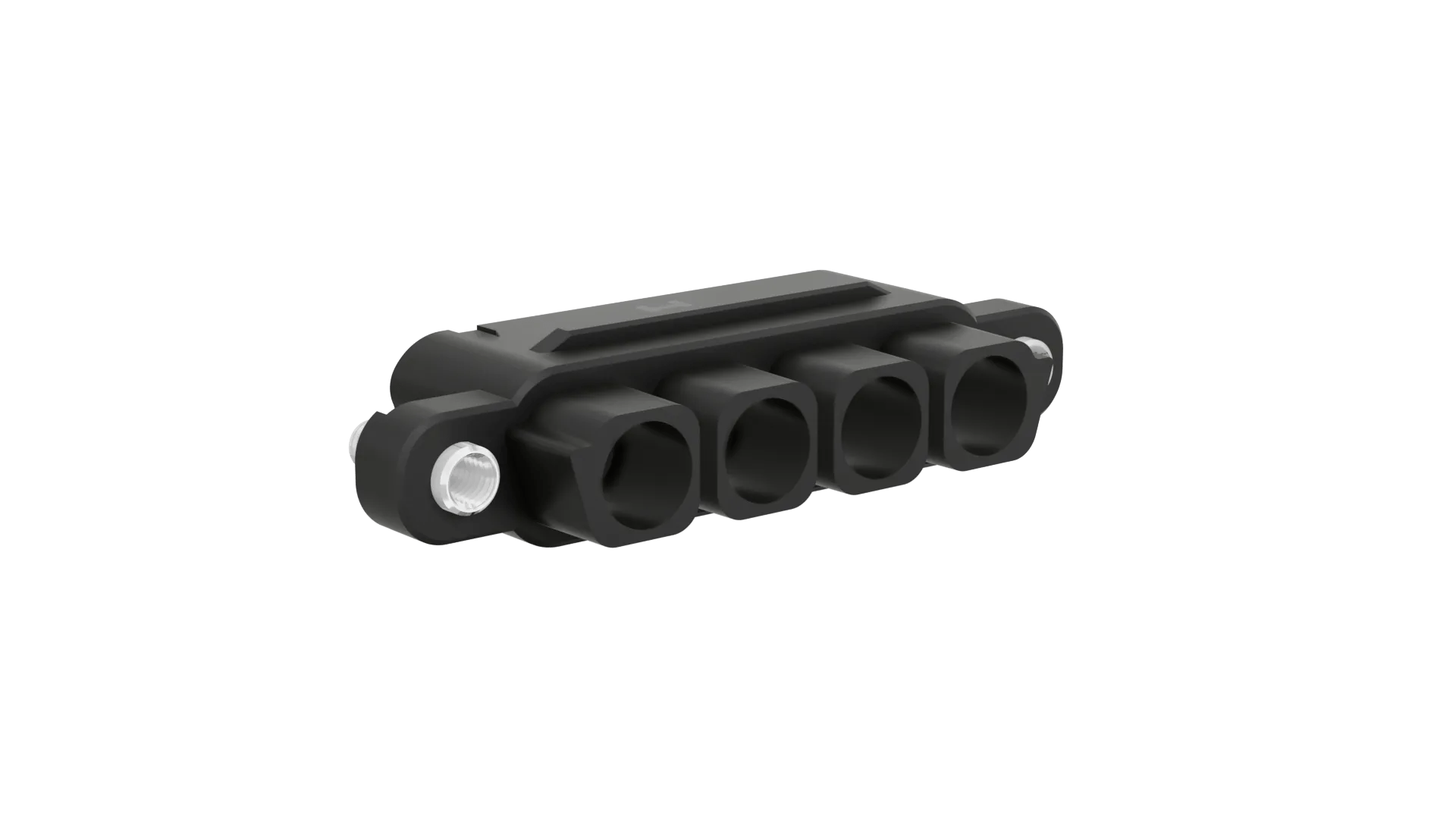

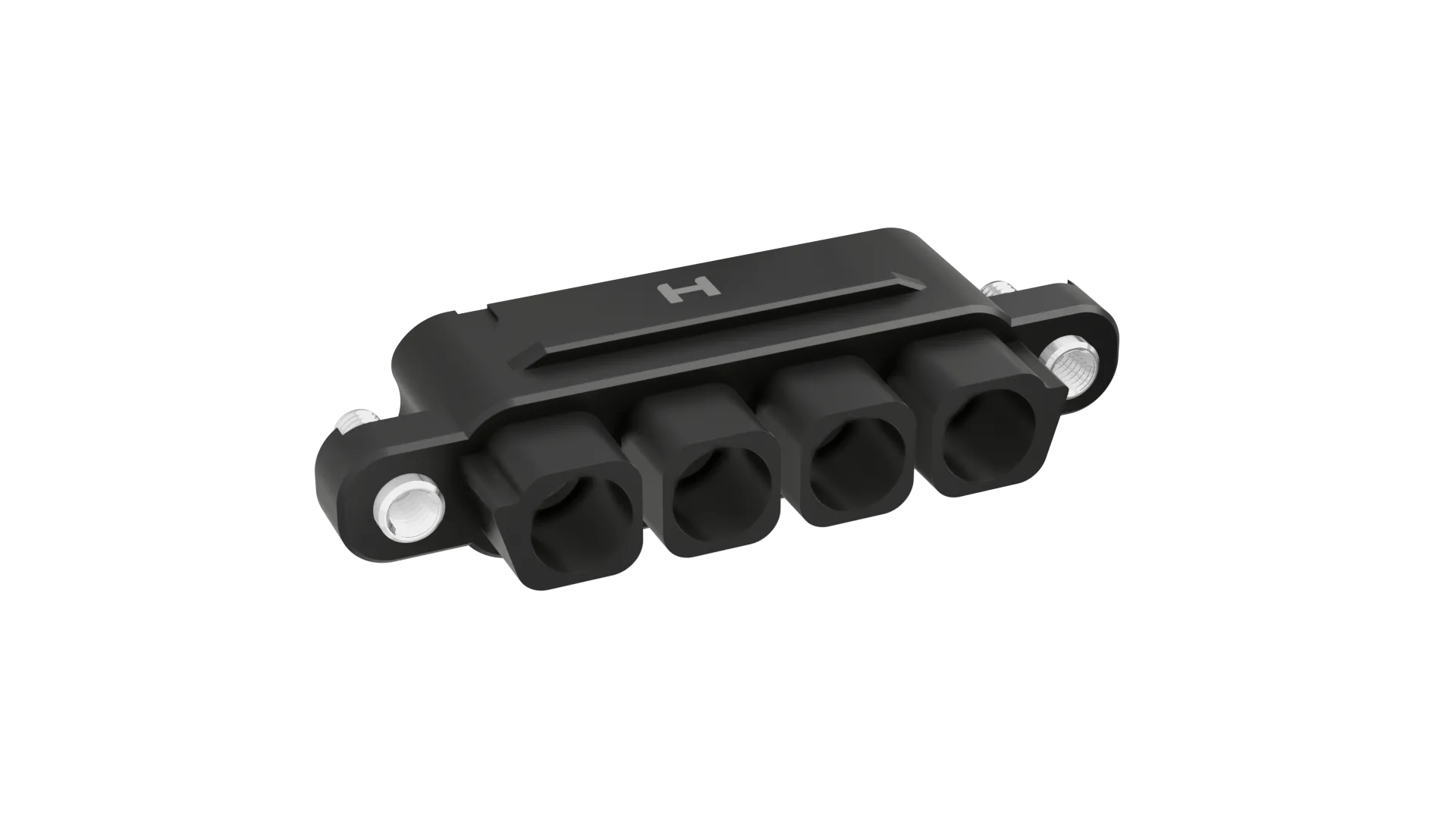

KA1-2010498F2

4 Pos. Female SIL Cable Housing, Reverse Fix Panel Mount

8.50mm Pitch High-Reliability Connector - Kona

  • Single Row Polarized Female Housing with individually shrouded scoop-proof contact locations and rear potting area – 4 contact. Includes fitted reverse fix screws with 5.2mm panel mount studs. Use Slotted Board Mount nut KA1-4240000 for panel mounting.
  • Contacts to be purchased separately – use with 8AWG power solder contact KA1-0400005.
  • For complete pin numbering or pin out information, see Component Specification C052XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

8.50mm (0.335")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Current Rating:

60A max per contact

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Reverse Fix Panel Mount Screw

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

4

Materials

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

6.73g

Overall Dimensions (L x W x D) in mm:

50.00 x 12.50 x 18.00

Thread Size:

M3

Availability

375 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 40
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 30
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 30

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 275

Questions & Answers Ask a Question

Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?

No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. The part number is KA1-4240000 for a slotted circular nut.

What’s the derate curve for Kona connections?

You can find derate curves for the mated connectors in the Test Report HT076.

What torque value do you recommend for the jackscrews?

If you need to tighten your fixings to a torque setting for longer term installation, our recommendation is 22-25Ncm for both screw-locks and board/panel mount fixings. You can find this value stated in the Component Specification for Kona.

What tool do I need for assembling the contacts?

No tool is required for assembling the soldered contacts into the housing. We do supply an optional extraction tool if you need to remove a cable contact from the housing – see part ZA1-9040000.

What is the pin numbering for a Kona connector?

Each housing is marked with a number 1 contact identifier in the plastic of the housing body. Once you find this, simply count along the row from that position.

Do I need a tool to fasten these connectors together?

Yes, you will need a 2mm A/F hex driver (or allen key). You can either use this to hand-tighten, or achieve the recommended torque of 22-25Ncm.

What torque value should be used for these screw-locks?

The torque value for board or panel mounting and for mating screw-locks is 22-25cmN. This value is given in the Component Specification C052xx (page 3).
