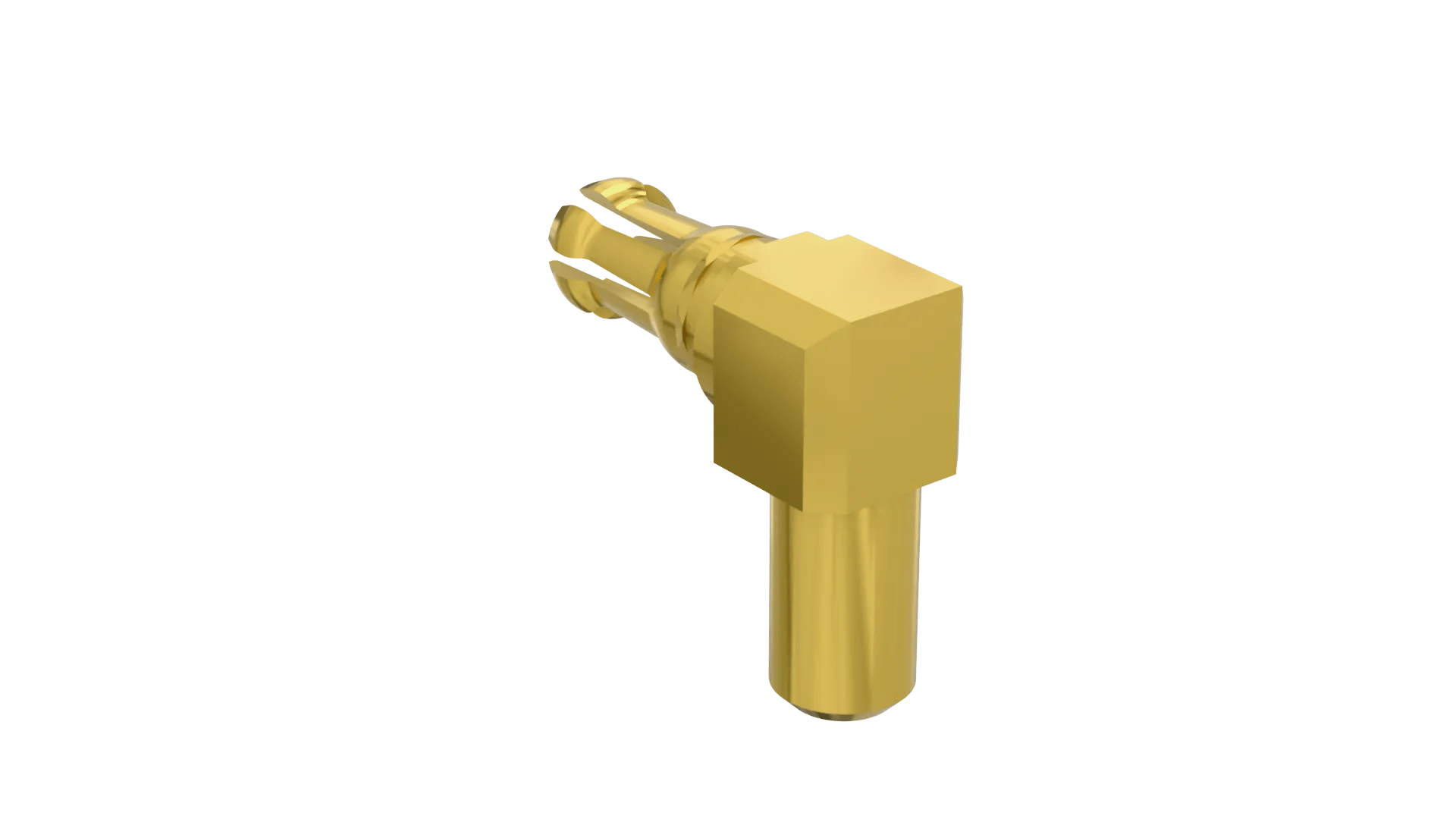

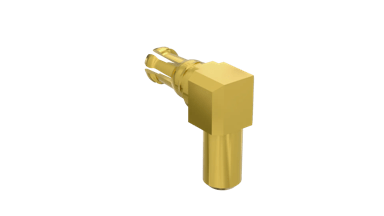

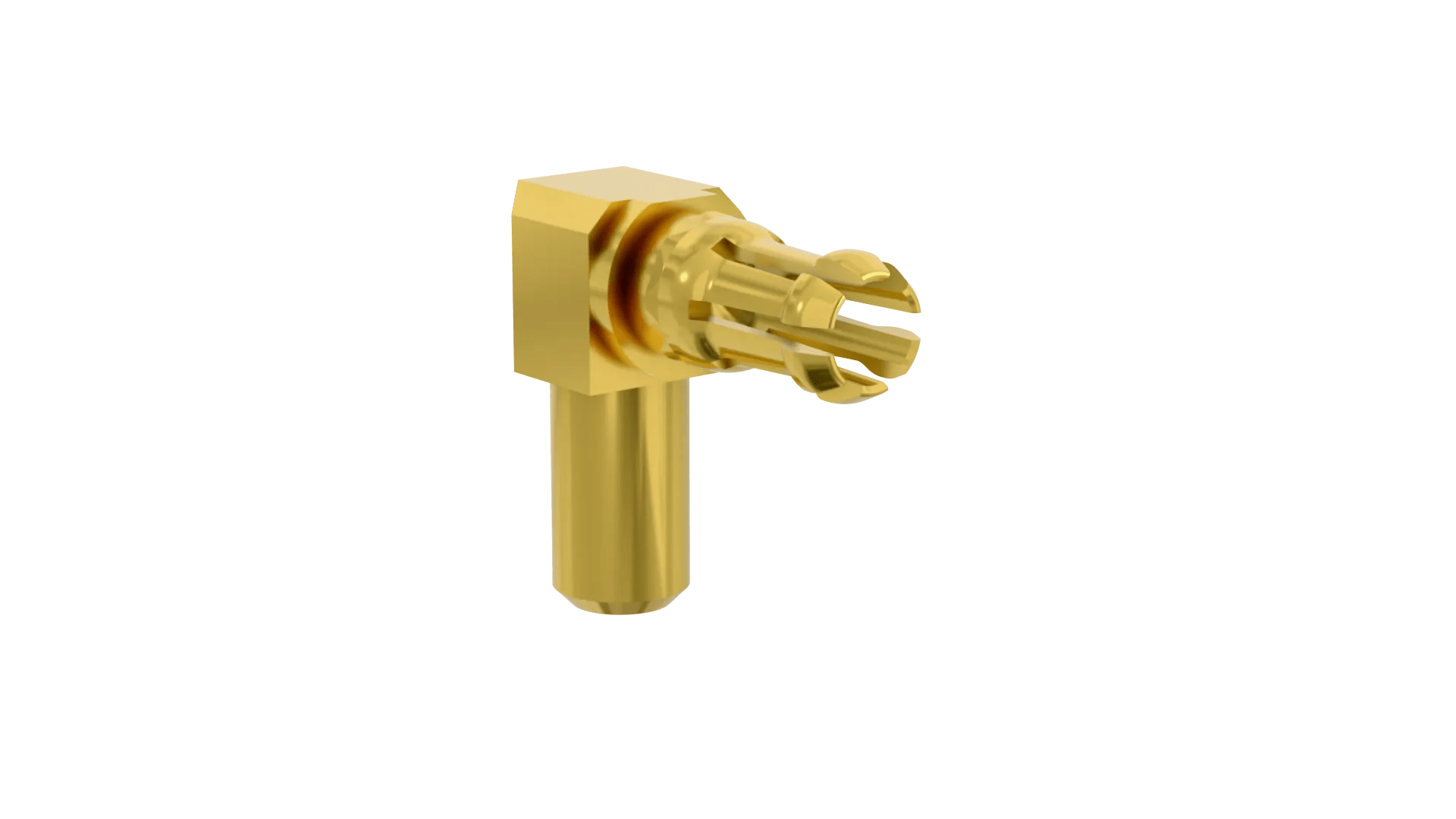

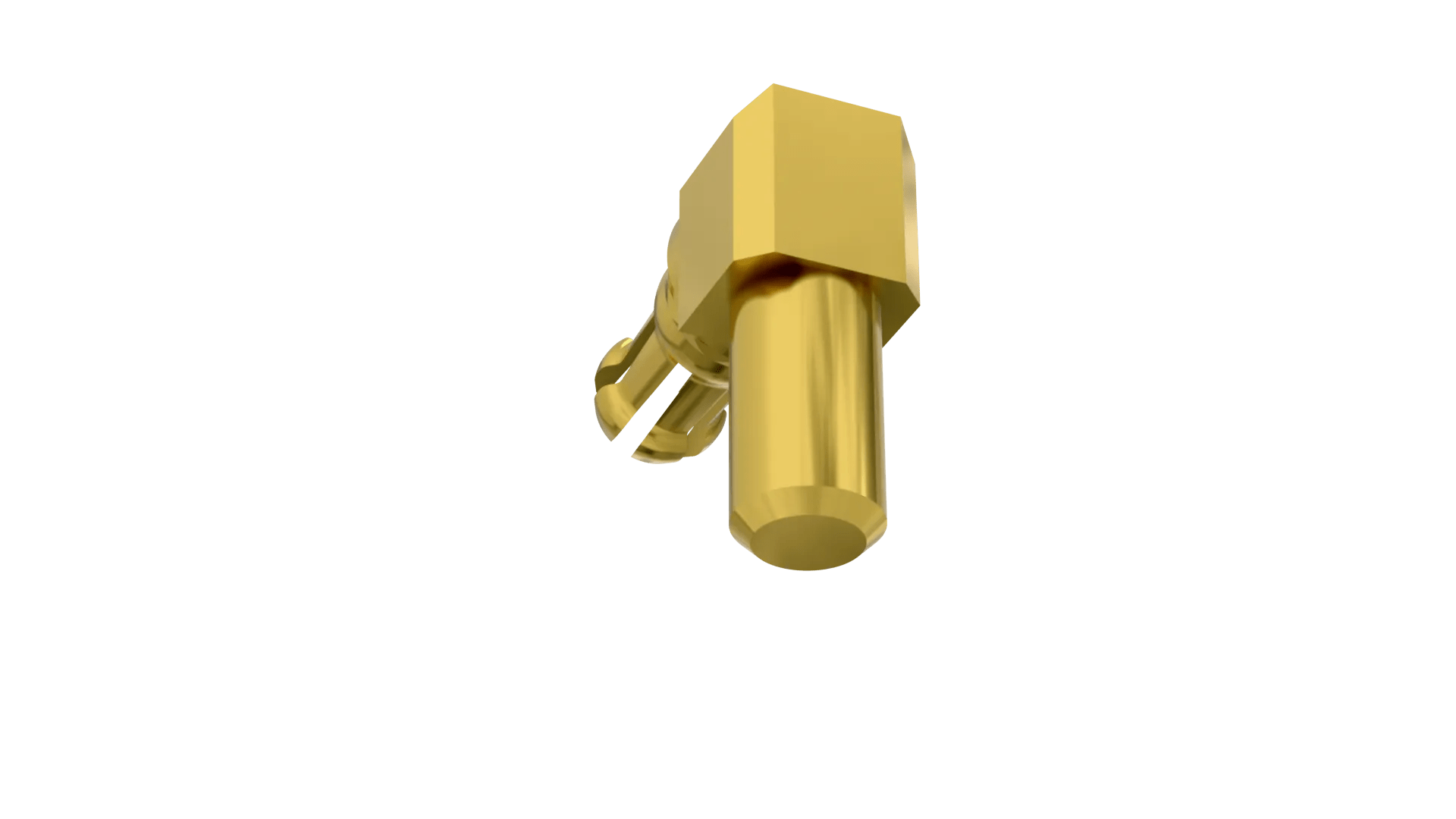

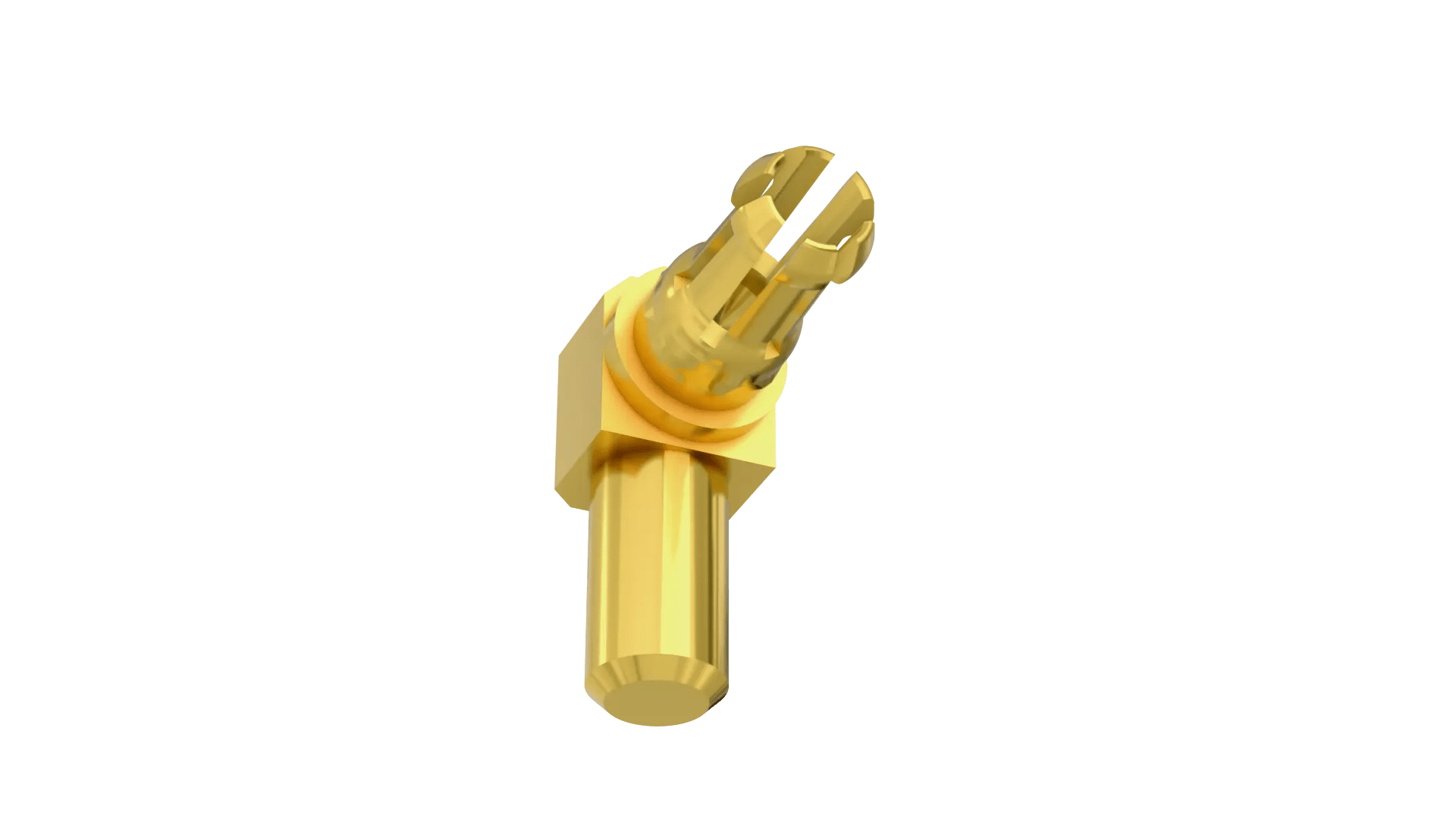

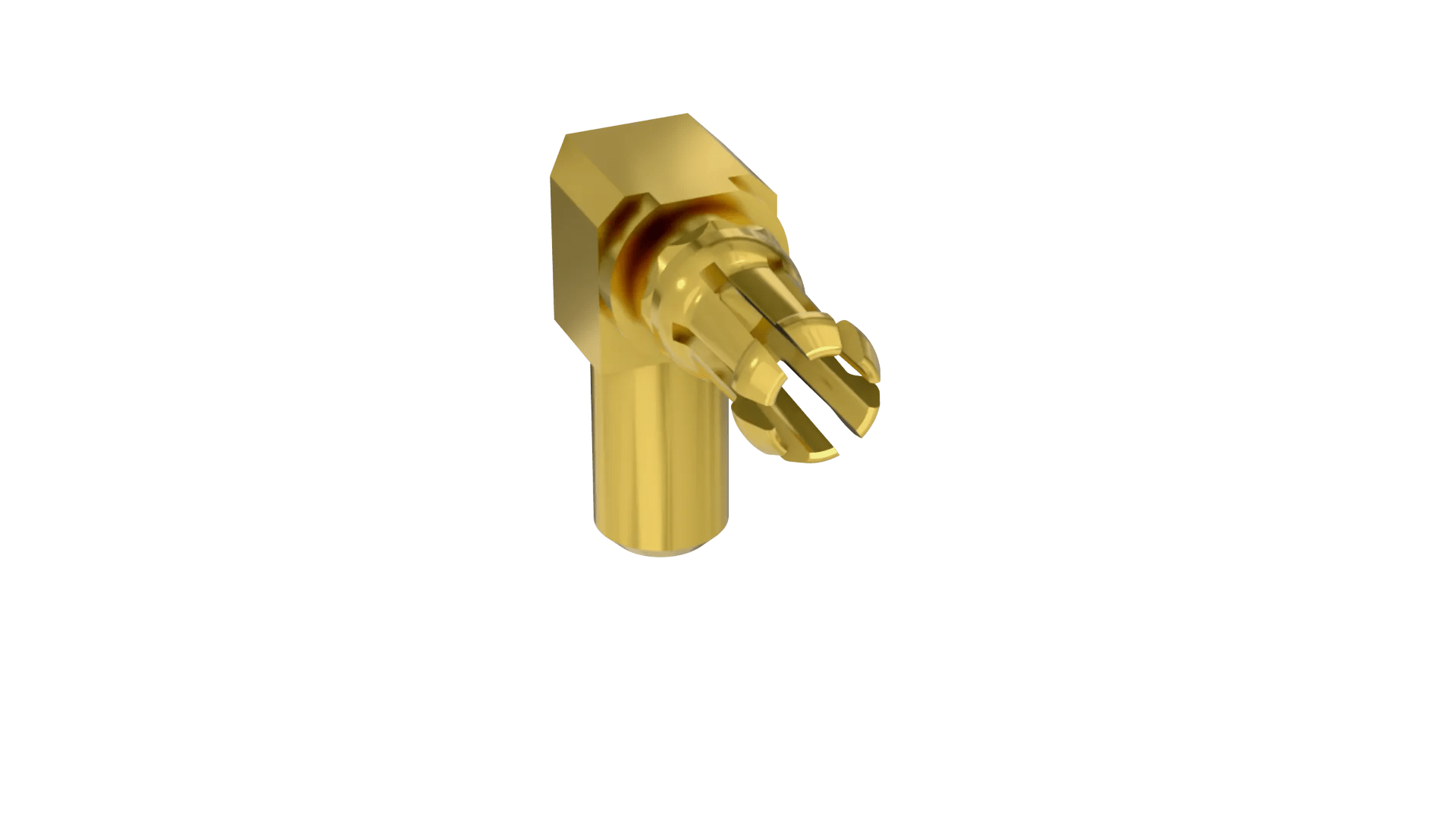

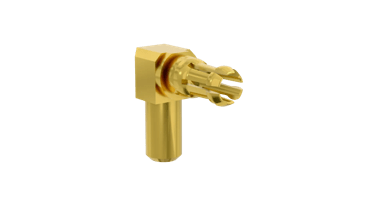

Individual male plug right-angle (horizontal) contact, throughboard for PCB with 6.5mm termination, up to 60A per contact nominal.
Used as the male plug contact in KA1-MH1 right-angle (horizontal) throughboard connectors.
Gold finish on contact area and termination.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Product Change Notifications
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Connector Orientation
Right-Angle
Country of Origin
GB
Number of Power/Coax Contacts
1
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
60A max per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface
Gold
Base Material of Contact
Beryllium Copper
Packaging Style
Bulk/Loose
Finish / Plating on Termination
Gold
Dimensions
Contact Pitch
8.50mm (0.335")
Weight
2.005g
Dimensions
12.52 x 11.50 x 5.00
PC Tail Length
6.50mm
Height of Connector above PCB
5.00mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - KA1-115.pdf
C052XX Component Specification - Kona KA1 Series (8.50mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on Kona contacts
Product Information
Product Training Module - Overview Guide to the Kona range + 8.5mm pitch Power High-Reliability
Product Datasheet - Kona range (HRi)
Environmental Compliance
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for KA1-1150005.pdf
Harwin REACH Statement - KA1-1150005
RoHS Declaration - KA1-1150005
