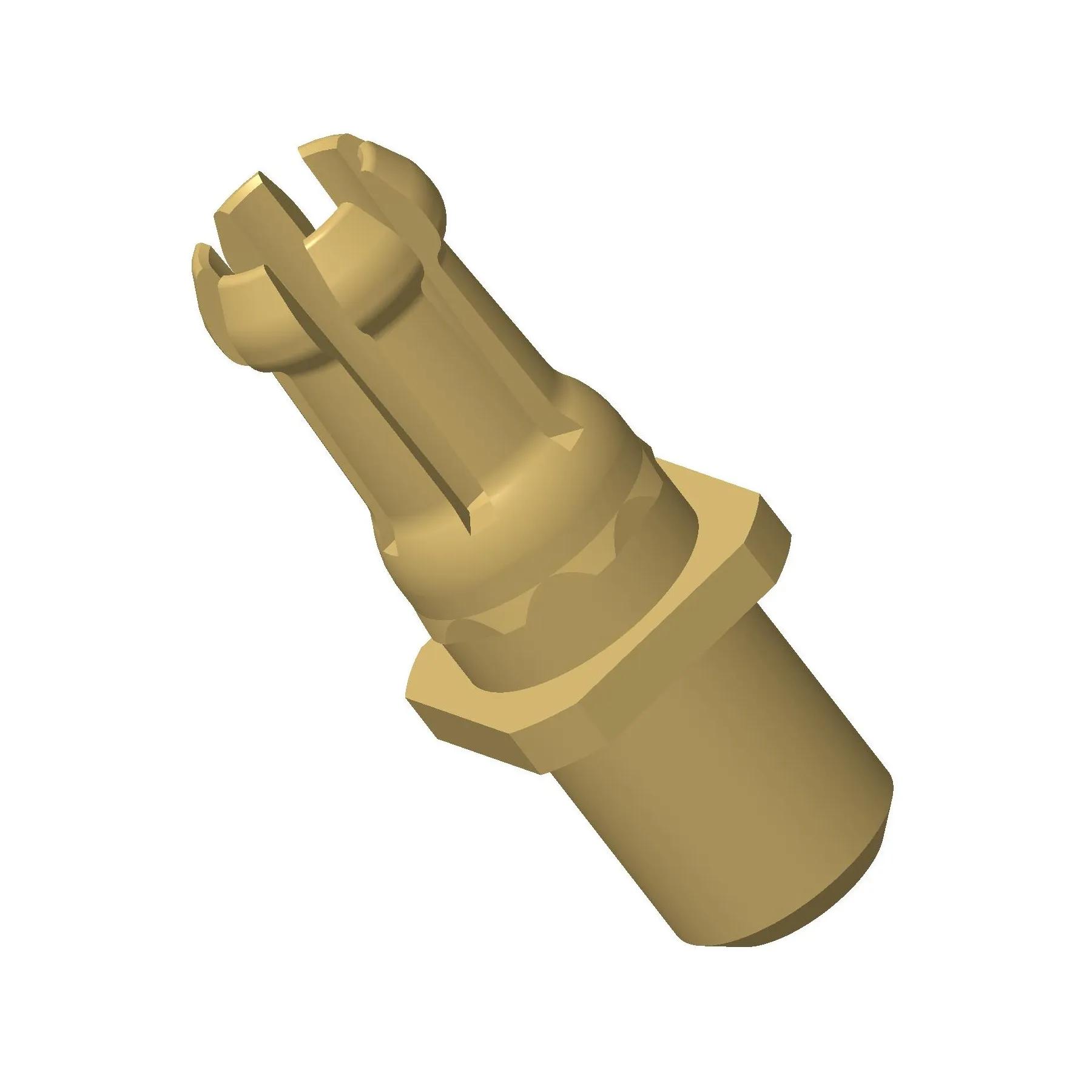

Male Vertical Throughboard Power Contact

HRi

Traceparts account required

KA1-1100005

Male Vertical Throughboard Power Contact


8.50mm Pitch High-Reliability Connector - Kona

  • Vertical orientation with 4.7mm PC Tail.

  • Used as the male contact in KA1-MV1 vertical throughboard connectors.

  • Gold finish on contact area and termination.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • Connector Orientation:

    Vertical

  • Country of Origin:

    GB

  • Operating Temperature:

    -65°C to +150°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    60A max per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    Gold

Dimensions

  • Contact Pitch:

    8.50mm (0.335")

  • Weight:

    1.005g

  • Dimensions:

    12.98 x 5.00 square

  • PC Tail Length:

    4.70mm

  • Height of Connector above PCB:

    8.28mm

Downloads

    Product Information

  • Product Datasheet - Kona range (HRi)

  • Product Training Module - Overview Guide to the Kona range + 8.5mm pitch Power High-Reliability

  • Technical Documentation

  • Technical Drawing / Datasheet - KA1-1100005.pdf

  • Plating thickness on Kona contacts

  • C052XX Component Specification - Kona KA1 Series (8.50mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - KA1-1100005

  • Material composition for KA1-1100005 product

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Test Reports

  • Test Report HT076 - Kona (KA1 Series) - Electrical + Mechanical and Environmental
