KA1-0400005

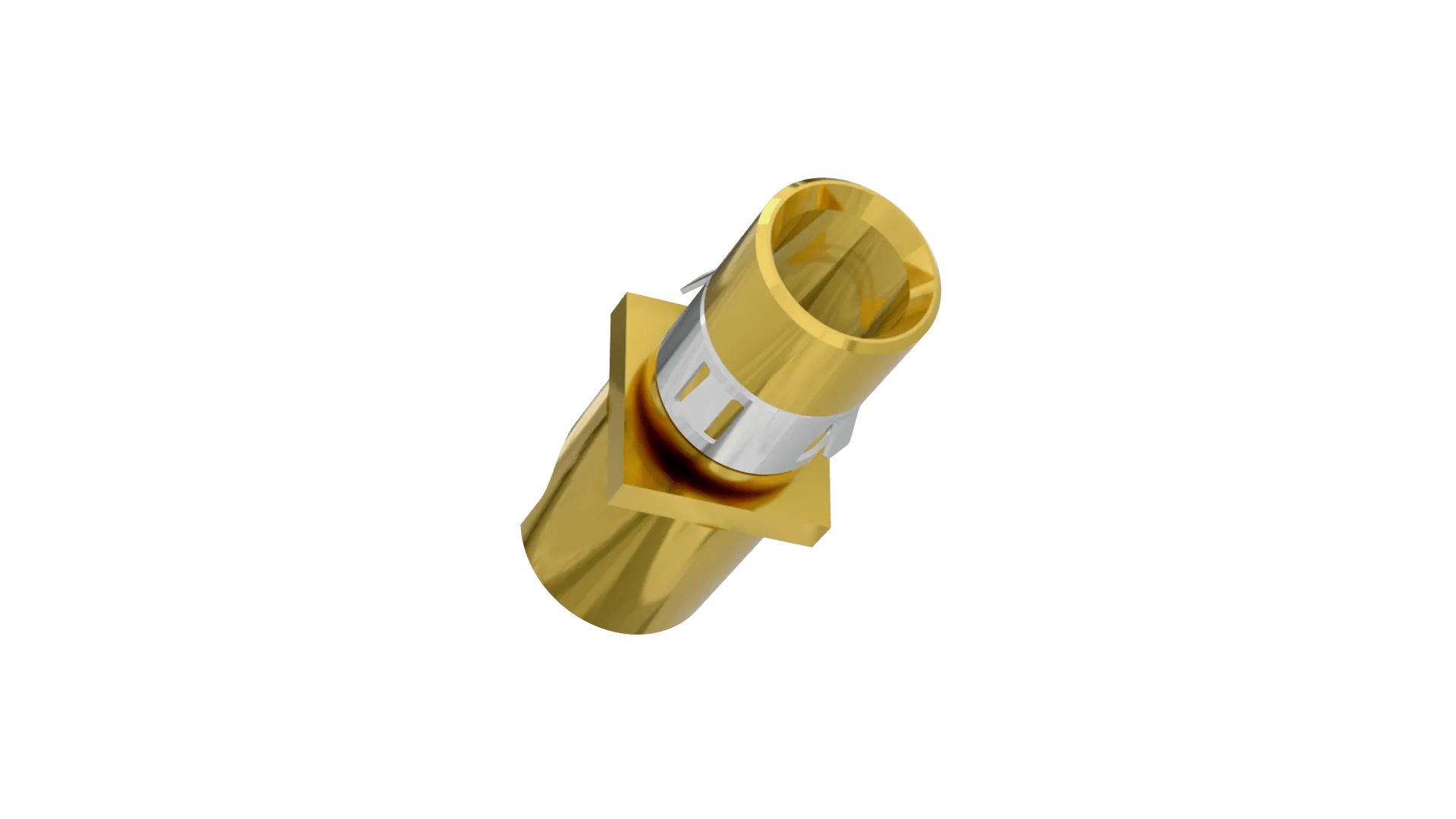

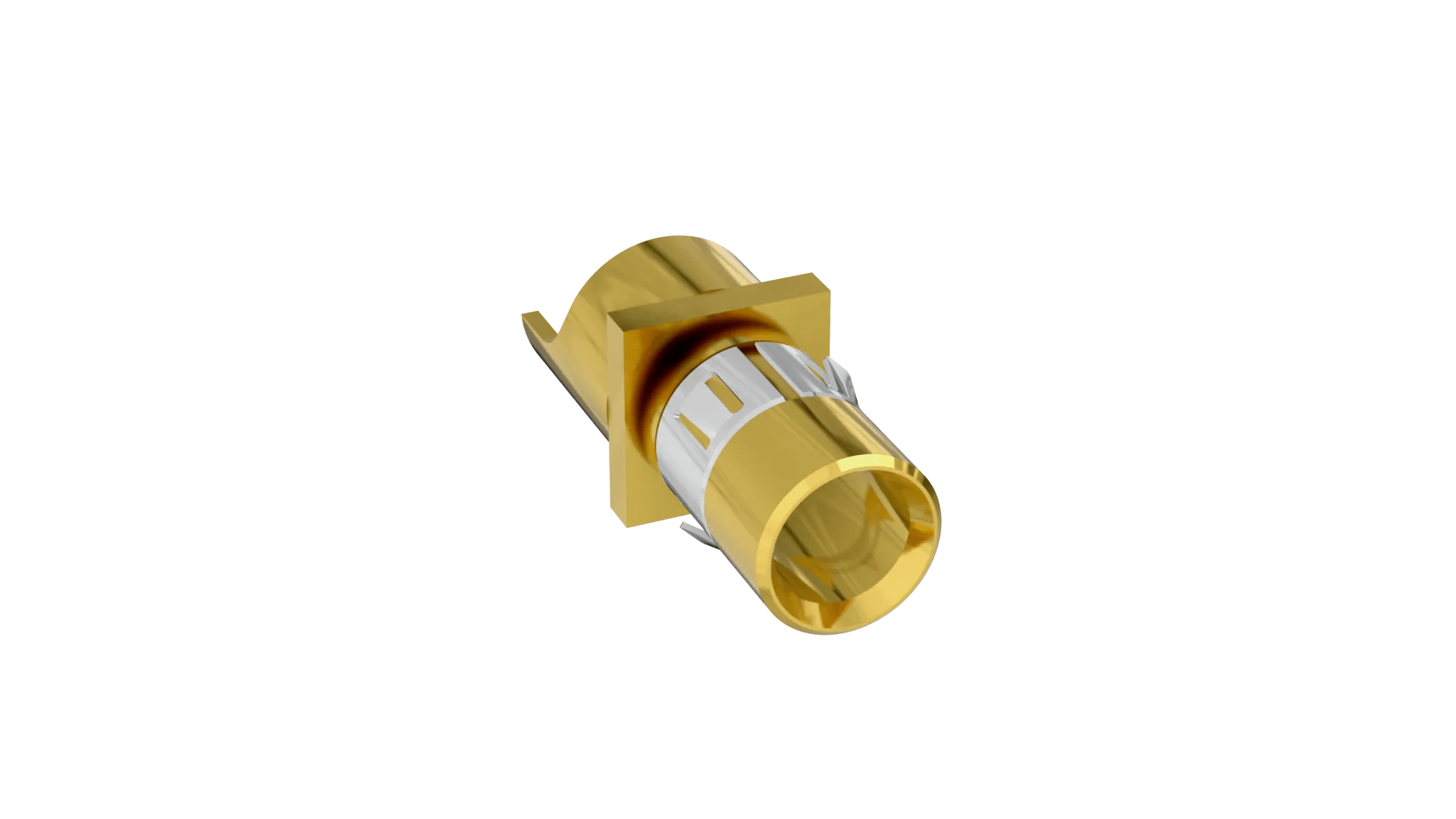

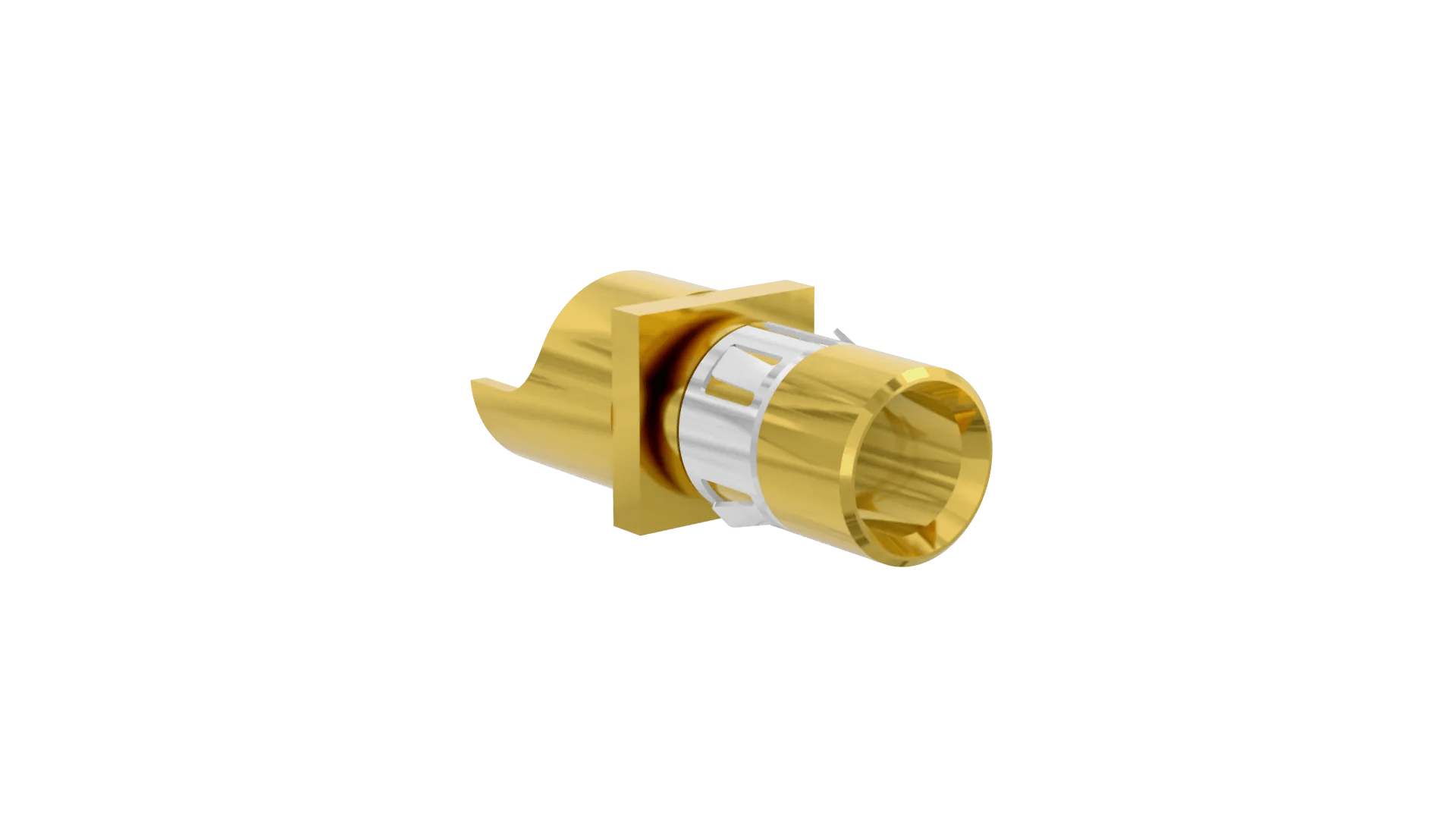

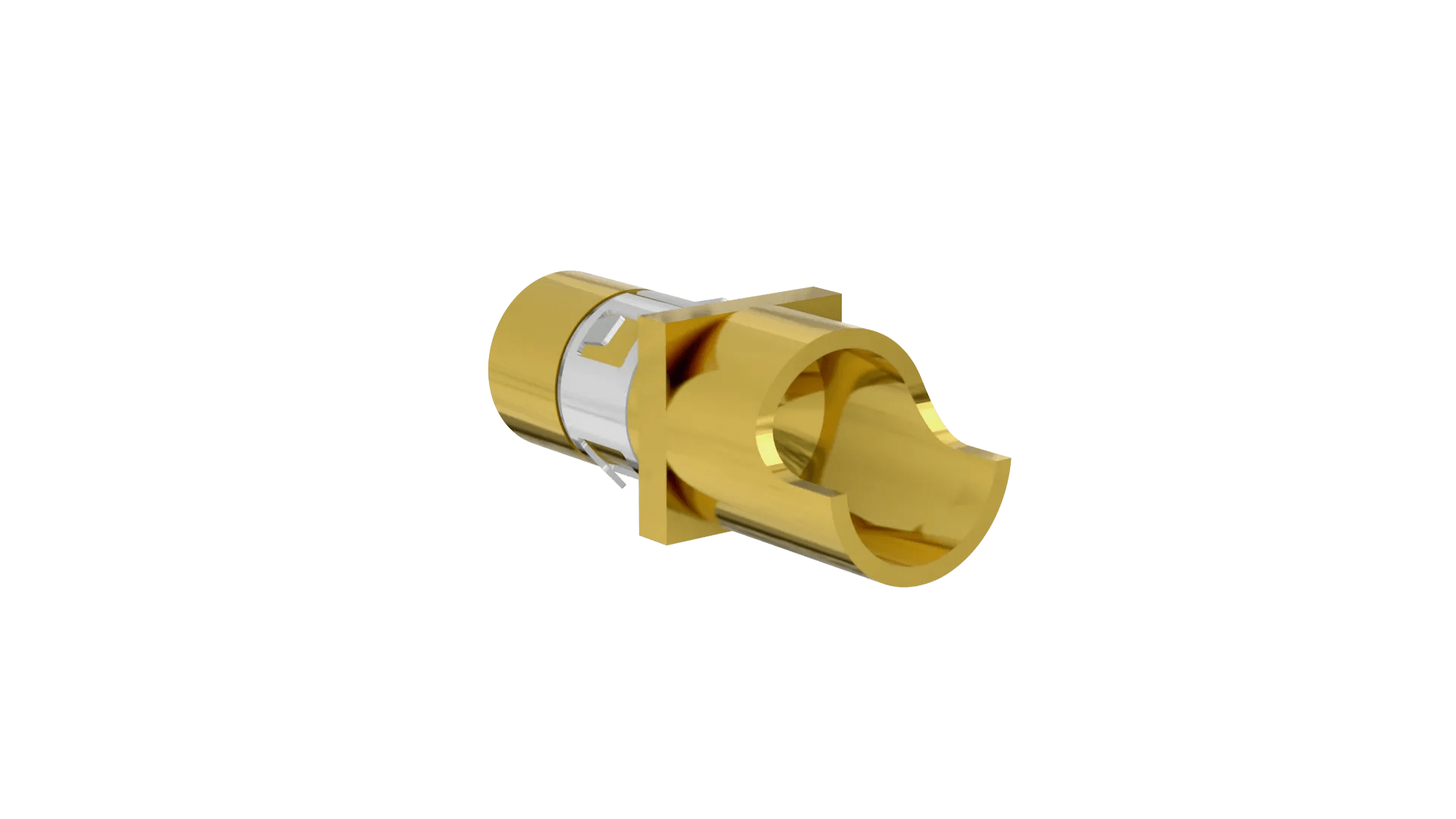

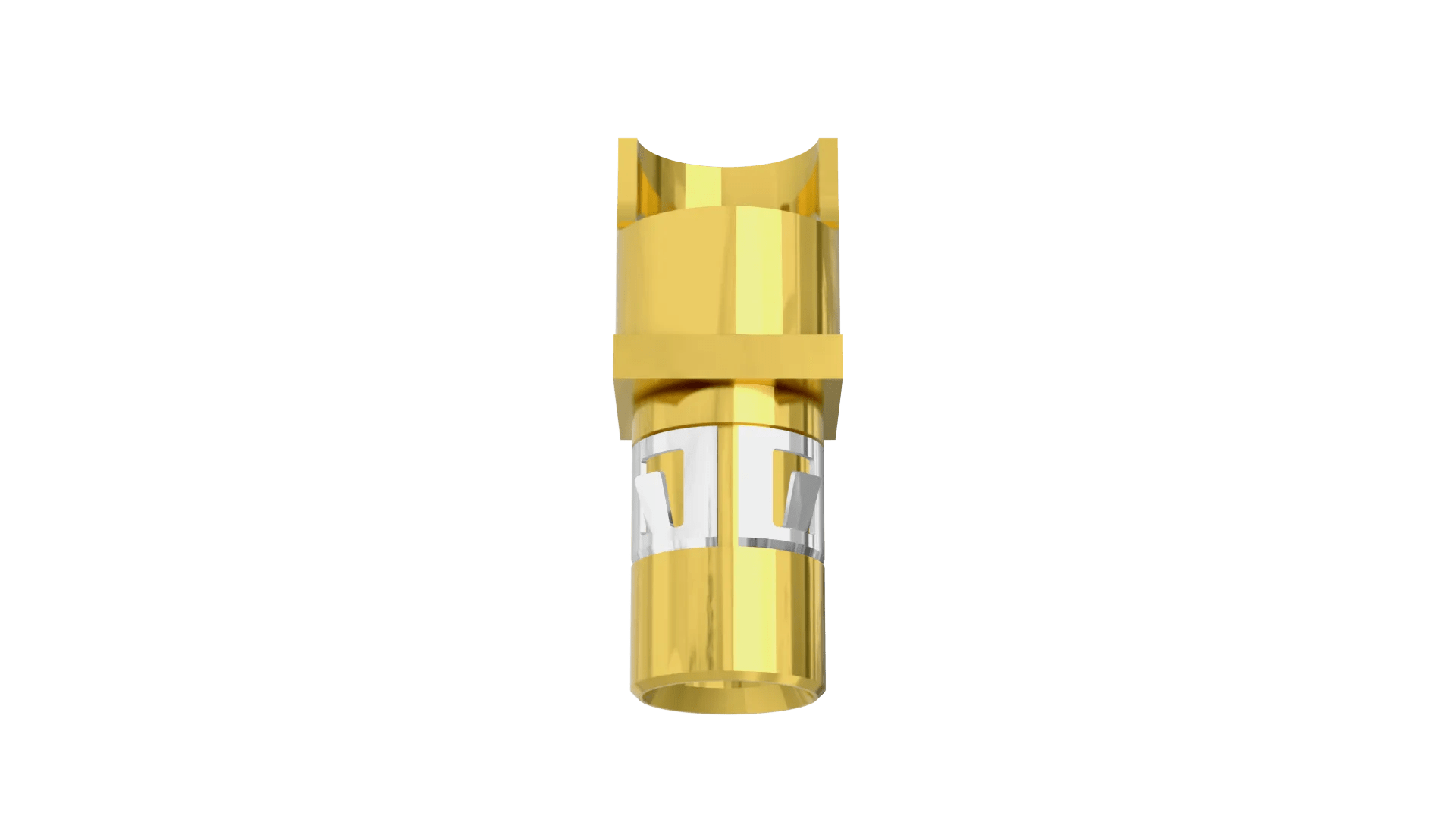

Female 8AWG Straight Solder Power Contact, loose

8.50mm Pitch High-Reliability Connector - Kona

Add to Favorites

Technical Details

Specification

Contact Pitch:

8.50mm (0.335")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

8AWG

Current Rating:

60A max per contact

Operating Temperature:

-65°C to +150°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.322g

Overall Dimensions (L x W x D) in mm:

15.00 x 5.70 square

Availability

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Currently made to order*

* Please request minimum quantities, lead times and pricing from an authorized distributor.

Questions & Answers Ask a Question

What’s the derate curve for Kona connections?

You can find derate curves for the mated connectors in the Test Report HT076.

Is there a crimp version of this solder contact? What wire do you recommend?

Sorry, I’m afraid we only have a solder contact available at this time. The wire we recommend is 8AWG fitted with a Silicone insulation – this gives you a thinner insulation to fit on 8.5mm pitch, and allows for some flexibility. You can see specific information on some possible options in the document Distributor part numbers for suitable cables for Datamate, Gecko, M300 & Kona.

What’s the gold plating thickness on this connector?

Gold thickness on both male and female connectors is 0.76-1.00 microns (30-40 microinches) over a nickel undercoat. Please also consult our Support article on plating thicknesses for all our high-reliability connectors, where you can download a statement with more detailed information.

What tool do I need for assembling the contacts?

No tool is required for assembling the soldered contacts into the housing. We do supply an optional extraction tool if you need to remove a cable contact from the housing – see part ZA1-9040000.
