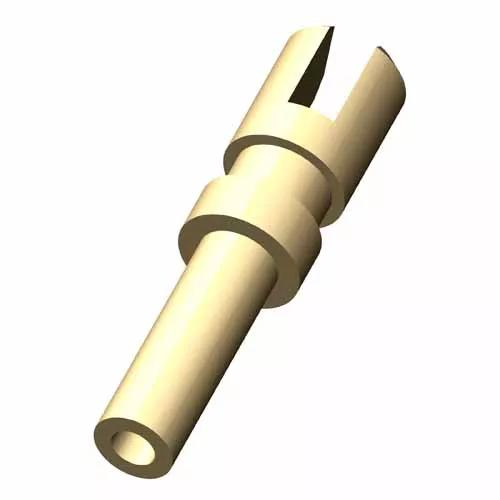

Hardware - Terminal Pin, Terminal Lug, Turret Lug
3.96mm high, Ø1.83mm diameter, for 3.2mm panel thickness.
Gold finish.
Swage for additional mechanical retention. Product still requires soldering for electrical connection.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Connector Orientation:
Vertical
Country of Origin:
GB
Number of Power/Coax Contacts:
1
Number of Signal Contacts:
1
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Dimensions
Weight:
0.095g
Dimensions:
7.64 x Ø1.83
PC Tail Length:
3.68mm
Height of Connector above PCB:
3.96mm
Downloads
Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
IS-35 - Punch and Die Tools Instruction Sheet
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for H9025 series
RoHS - H9025-05
