H8505-01

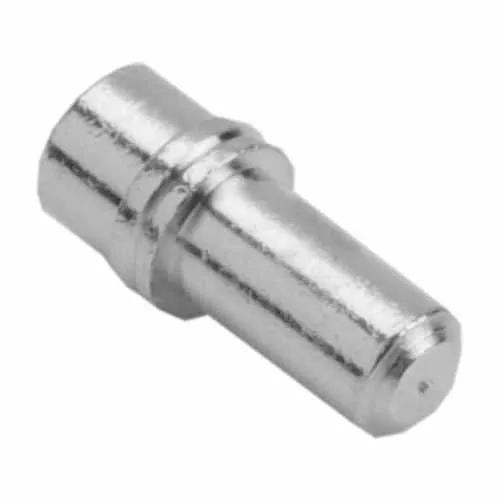

PC Board Socket for Ø0.80mm Pin, gold clip + tin shell, 2.25mm raised shoulder


Sockets - Individual Throughboard PCB Socket

  • PC Board Socket for mating Ø0.80mm Pin - Gold finish on contact area, Tin finish on termination.

  • Uses 4-finger Beryllium Copper contact clip - Vibration 10-2,000Hz, 10G, 6 hours.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Technical Details

Specifications

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Vertical

  • PCB Mounting:

    PC Tail / Throughboard

  • Mating Pin Size:

    Ø0.8mm

  • Entry Style:

    Top Entry

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper contact clip, Brass shell

  • Packaging Style:

    Bulk/Loose

  • Height of Connector above PCB:

    2.25mm

  • PC Tail Length:

    3.65mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    PC Tail / Throughboard

  • Current Rating:

    10A max at 25°C, 7.5A max at 85°C

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    0.11g

  • Dimensions:

    5.90 x Ø2.61

  • Operating Temperature:

    -55°C to +125°C

  • Country of Origin:

    GB

Downloads

    Environmental Compliance

  • RoHS - H8505-01

  • Material composition for H8505 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - H8505.pdf

  • C010XX Component Specification - PC Board Sockets for 0.80mm pins

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Product Training Module - Overview of the PCB Socket contacts range
