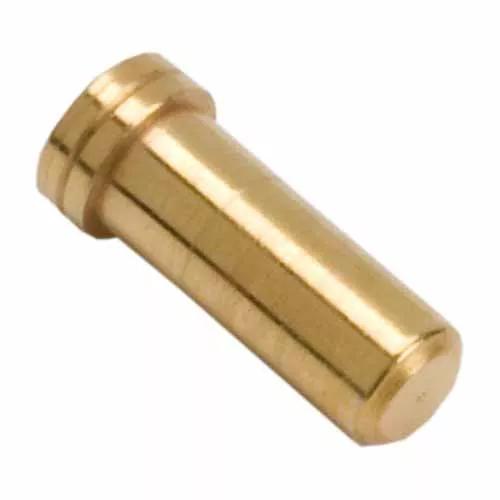

Female Vertical Throughboard Ø0.80mm Contact
Sockets - Individual Throughboard PCB Socket
13,145 in stock Check availability
4 similiar products View products
- PC Board Socket for mating Ø0.80mm Pin – Gold finish on contact area and termination.
- Uses 4-finger Beryllium Copper contact clip – Vibration 10-2,000Hz, 10G, 6 hours.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
10A max at 25°C, 7.5A max at 85°C
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
5.70 x Ø2.33
Height of Connector above PCB:
Length of Throughboard Tail:
Frequently Asked Questions Ask a Question
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
Was this answer useful?
Are these available in tape and reel?
Sorry, but our PCB turned sockets are not offered in a tape and reel format. To use them as part of an automated system, you would have to consider something like a vibratory bowl feed. Our SMT stamped contacts are available in tape and reel: SYCAMORE Contacts S9111-45R, S9121-45R, S9131-45R and S9141-45R, or our Twin-Beam SMT contacts S9091-46R and S9101-46R.
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
