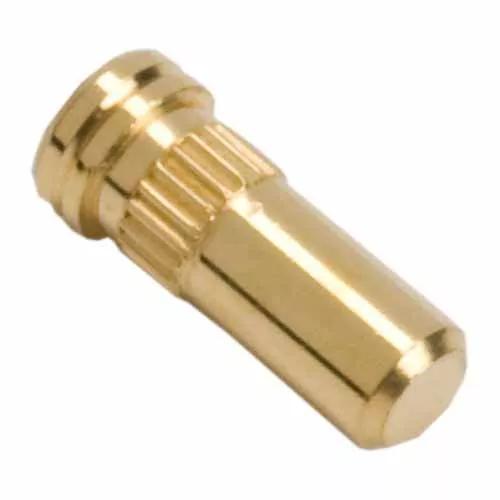

Image may be representative. Refer to the product title for more information.
Straight (vertical) PC Board socket (female receptacle) for mating with Ø0.8mm pin (Ø0.6 to 0.85mm). Gold finish on contact area and termination.
Total contact length 5.7mm, shoulder height 0.90mm. Knurled for mechanical board retention. Product still requires soldering to PCB for electrical connection.
Uses 4-finger Beryllium Copper contact clip - Vibration 10-2,000Hz, 10G, 6 hours.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
Mating Pin Size
Ø0.8mm
Connector Orientation
Straight
Country of Origin
GB
Number of Power/Coax Contacts
1
Number of Signal Contacts
1
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
10A max at 25°C, 7.5A max at 85°C
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface
Gold
Base Material of Contact
Beryllium Copper contact clip, Brass shell
Packaging Style
Bulk/Loose
Finish / Plating on Termination
Gold
Dimensions
Weight
0.08g
Dimensions
5.70 x Ø2.33
PC Tail Length
4.80mm
Height of Connector above PCB
0.90mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - H8501.pdf
C010XX Component Specification - PC Board Sockets for 0.80mm pins
