H3194-01

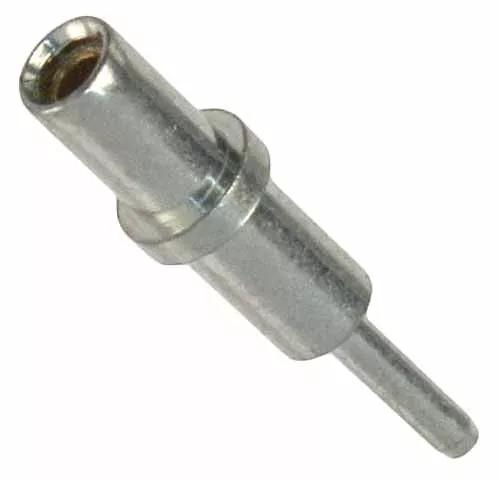

Female Vertical Throughboard Ø1.00mm Contact
Sockets - Individual Throughboard PCB Socket
16,470 in stock Check availability
9 similiar products View products
Samacsys account required
No login is required
Product Description
- PC Board Socket for mating Ø1.00mm Pin – Gold finish on contact area, Tin finish on termination.
- Uses 4-finger Beryllium Copper contact clip – Vibration 10-2,000Hz, 10G, 6 hours.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
Ø1mm
Current Rating:
10A max at 25°C, 7.5A max at 85°C
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Number of Signal Contacts:
1
Entry Style:
Top Entry
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.282g
Overall Dimensions (L x W x D) in mm:
13.35 x Ø3.18
Height of Connector above PCB:
4.60mm
Length of Throughboard Tail:
8.75mm
Frequently Asked Questions Ask a Question
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
Was this answer useful?
Are these available in tape and reel?
Sorry, but our PCB turned sockets are not offered in a tape and reel format. To use them as part of an automated system, you would have to consider something like a vibratory bowl feed. Our SMT stamped contacts are available in tape and reel: SYCAMORE Contacts S9111-45R, S9121-45R, S9131-45R and S9141-45R, or our Twin-Beam SMT contacts S9091-46R and S9101-46R.
