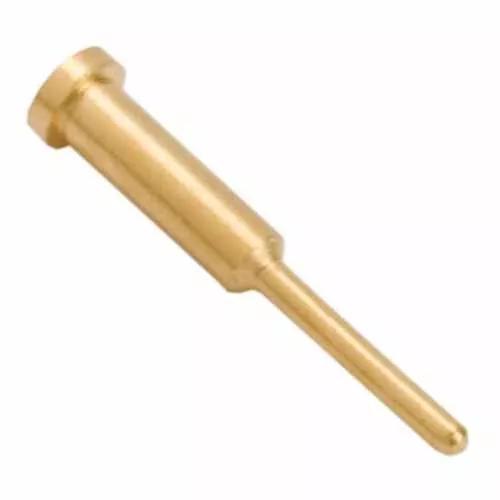

Product Characteristics

• Mating Pin Size:

  Ø0.5mm

• Connector Orientation:

  Vertical

• Country of Origin:

  GB

• Number of Signal Contacts:

  1

• Operating Temperature:

  -55°C to +125°C

• RoHS Status:

  RoHS Compliant (2015/863/EU) with Exemption 6c

• Current Rating:

  2A max at 25°C, 1.75A max at 85°C

• Soldering Data:

  Max Solder Temperature: 260°C for 10 seconds

Materials

• Finish / Plating on Contact Surface:

  Gold

• Base Material of Contact:

  Beryllium Copper contact clip, Brass shell

• Packaging Style:

  Bulk/Loose

• Finish / Plating on Termination:

  Gold

Dimensions

• Weight:

  0.021g

• Dimensions:

  7.29 x Ø1.42

• PC Tail Length:

  6.91mm

• Height of Connector above PCB:

  0.38mm
