H3192-01

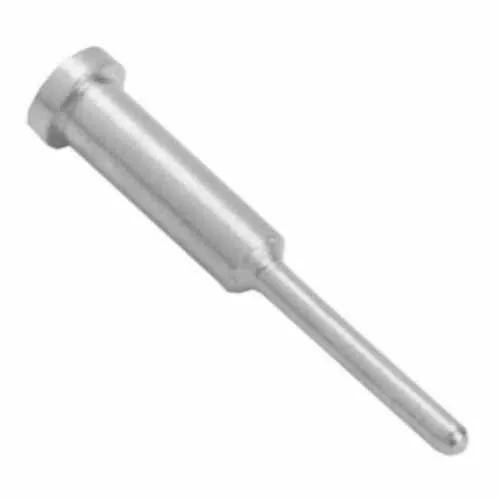

Female Vertical Throughboard Ø0.50mm Contact

Sockets - Individual Throughboard PCB Socket

Add to Favorites

98,425 in stock   Check availability

1 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Sub-miniature PC Board Socket for mating Ø0.5mm Pin, with Ø0.5mm tail – Gold finish on contact area, Tin finish on termination.
  • Uses 4-finger Beryllium Copper contact clip from Datamate – Vibration 10-2,000Hz, 10G, 6 hours.

Technical Details

Specification

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

2A max at 25°C, 1.75A max at 85°C

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Number of Signal Contacts:

1

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.022g

Overall Dimensions (L x W x D) in mm:

7.29 x Ø1.42

Height of Connector above PCB:

0.38mm

Length of Throughboard Tail:

6.91mm

Frequently Asked Questions Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Was this answer useful?

Are these available in tape and reel?

Sorry, but our PCB turned sockets are not offered in a tape and reel format. To use them as part of an automated system, you would have to consider something like a vibratory bowl feed. Our SMT stamped contacts are available in tape and reel: SYCAMORE Contacts S9111-45R, S9121-45R, S9131-45R and S9141-45R, or our Twin-Beam SMT contacts S9091-46R and S9101-46R.

Was this answer useful?
