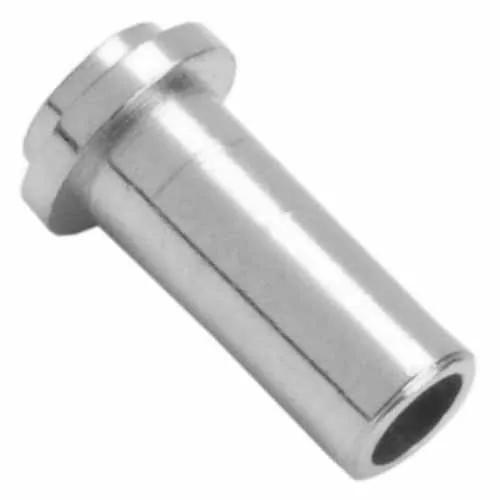

Female Vertical Throughboard Ø1.00mm Contact
Sockets - Individual Throughboard PCB Socket
- PC Board Socket for mating Ø1.00mm Pin, open-ended – Gold finish on contact area, Tin finish on termination.
- Uses 4-finger Beryllium Copper contact clip – Vibration 10-2,000Hz, 10G, 6 hours.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
10A max at 25°C, 7.5A max at 85°C
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
6.00 x Ø3.18
Height of Connector above PCB:
Length of Throughboard Tail:
12,144 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Questions & Answers Ask a Question
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
Are these available in tape and reel?
Sorry, but our PCB turned sockets are not offered in a tape and reel format. To use them as part of an automated system, you would have to consider something like a vibratory bowl feed. Our SMT stamped contacts are available in tape and reel: SYCAMORE Contacts S9111-45R, S9121-45R, S9131-45R and S9141-45R, or our Twin-Beam SMT contacts S9091-46R and S9101-46R.
