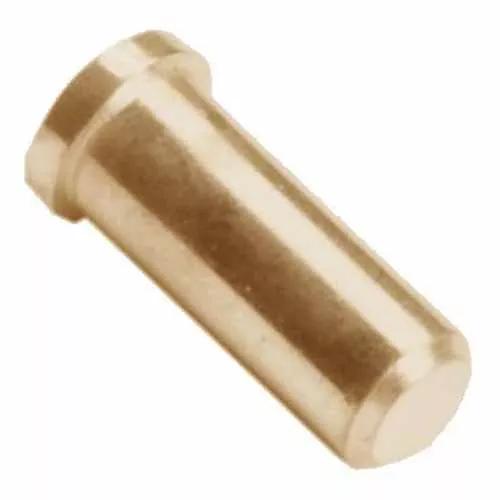

H3183-05

Female Vertical Throughboard Ø1.00mm Contact

Sockets - Individual Throughboard PCB Socket

  • PC Board Socket for mating Ø1.00mm Pin – Gold finish on contact area and termination.
  • Uses 4-finger Beryllium Copper contact clip – Vibration 10-2,000Hz, 10G, 6 hours.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø1mm

Current Rating:

10A max at 25°C, 7.5A max at 85°C

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Number of Signal Contacts:

1

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.066g

Overall Dimensions (L x W x D) in mm:

5.25 x Ø2.33

Height of Connector above PCB:

0.50mm

Length of Throughboard Tail:

4.75.00mm

Availability

126,204 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 39490
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 19605
Distributor Farnell
Location Europe
Quantity (Updated Daily) 19393
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 16000
Distributor Newark
Location USA
Quantity (Updated Daily) 14743
Distributor Anglia
Location Europe
Quantity (Updated Daily) 7106
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 5000
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 2700
Distributor Newark
Location USA
Quantity (Updated Daily) 2060
Distributor Genalog
Location Europe
Quantity (Updated Daily) 107

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Are these available in tape and reel?

Sorry, but our PCB turned sockets are not offered in a tape and reel format. To use them as part of an automated system, you would have to consider something like a vibratory bowl feed. Our SMT stamped contacts are available in tape and reel: SYCAMORE Contacts S9111-45R, S9121-45R, S9131-45R and S9141-45R, or our Twin-Beam SMT contacts S9091-46R and S9101-46R.
