Home > H3182-01
Active

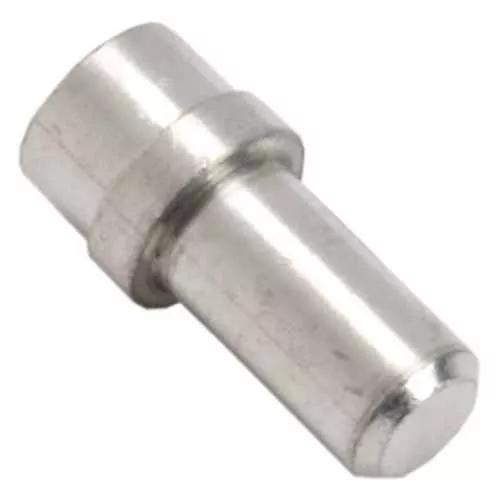

H3182-01

Female Vertical Throughboard Ø1.00mm Contact

Sockets - Individual Throughboard PCB Socket

  • PC Board Socket for mating Ø1.00mm Pin – Gold finish on contact area, Tin finish on termination.
  • Uses 4-finger Beryllium Copper contact clip – Vibration 10-2,000Hz, 10G, 6 hours.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø1mm

Current Rating:

10A max at 25°C, 7.5A max at 85°C

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.101g

Overall Dimensions (L x W x D) in mm:

5.65 x Ø2.61

Height of Connector above PCB:

2.10mm

Length of Throughboard Tail:

3.55.00mm

Availability

133,519 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 36815
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 8000
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 7000
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 3686
Distributor Farnell
Location Europe
Quantity (Updated Daily) 2000
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 1250
Distributor Genalog
Location Europe
Quantity (Updated Daily) 760
Distributor Anglia
Location Europe
Quantity (Updated Daily) 8

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 74000

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Are these available in tape and reel?

Sorry, but our PCB turned sockets are not offered in a tape and reel format. To use them as part of an automated system, you would have to consider something like a vibratory bowl feed. Our SMT stamped contacts are available in tape and reel: SYCAMORE Contacts S9111-45R, S9121-45R, S9131-45R and S9141-45R, or our Twin-Beam SMT contacts S9091-46R and S9101-46R.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - H3182.pdf

ZIP

H3182-01 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C009XX Component Specification - PC Board Sockets for 1.00mm pins

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for H3182 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the PCB Socket contacts range

OTHER DOWNLOADS

PDF

Catalog page - PC Board 1mm Sockets

PDF

Catalog page - PCB Sockets Specification

PDF

Catalog page - PCB Sockets Introduction
