Sockets - Individual Throughboard PCB Socket

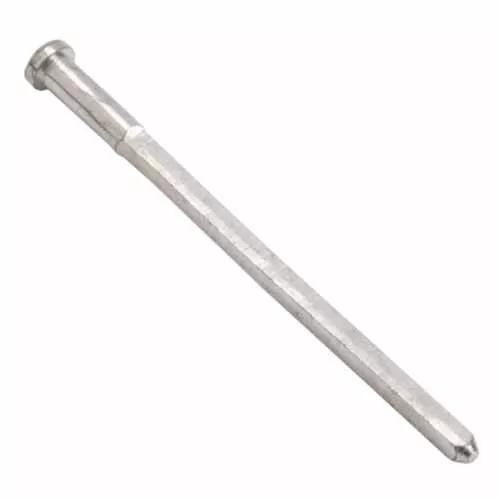

Sub-miniature PC Board Socket for mating Ø0.5mm Pin, 3-level Wire-Wrap tail - Gold finish on contact area, Tin finish on termination.
Uses 4-finger Beryllium Copper contact clip from Datamate - Vibration 10-2,000Hz, 10G, 6 hours.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Technical Details
Product Characteristics
Entry Style:
Top Entry
Mating Pin Size:
Ø0.5mm
Connector Orientation:
Vertical
Country of Origin:
GB
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
2A max at 25°C, 1.75A max at 85°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
100% Tin over Nickel
Dimensions
Weight:
0.061g
Dimensions:
16.51 x Ø1.42
PC Tail Length:
8.23mm
Height of Connector above PCB:
0.38mm
Downloads
Technical Drawing / Datasheet - H3175.pdf
C006XX Component Specification - Sub-miniature PC Board Sockets (for 0.5mm pins)
Outgassing data for Harwin products (plastics)
RoHS - H3175-01
Material composition for H3175 series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
