Home > H3165-01
Active

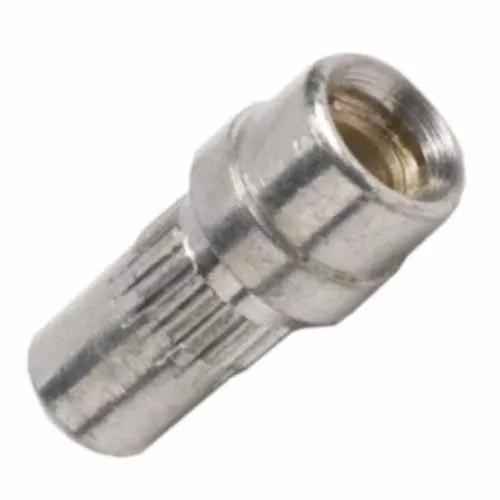

H3165-01

Female Vertical Throughboard Ø1.00mm Contact

Sockets - Individual Throughboard PCB Socket

  • PC Board Socket for mating Ø1.00mm Pin, retention feature – Gold clip, Tin shell.
  • Uses 4-finger Beryllium Copper contact clip – Vibration 10-2,000Hz, 10G, 6 hours.
  • Product still requires soldering for electrical connection.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø1mm

Current Rating:

10A

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.105g

Overall Dimensions (L x W x D) in mm:

5.65 x Ø2.61

Height of Connector above PCB:

2.10mm

Length of Throughboard Tail:

3.55.00mm

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status1987
Avnet Abacus
Europe
Status30000
Digi-Key
Global
Status37840
Farnell
Europe
Status1320
Harwin
Global
Status37000
Mouser Electronics Inc
Global
Status10253
Newark
USA
Status16938
TTI Europe
Europe
Status64000
TTI Inc
USA
Status3917

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Why do we need to solder this press-fit socket, and what method should I use?

The knurl on this PCB contact is solely for mechanical retention. It is not intended to give a gas-tight joint when assembled into a plated-through hole, and performance may vary or be unreliable. We therefore strongly recommend that the PCB socket is soldered to the applicable area of the PCB. Wave soldering or hand soldering on the PCB underside should be suitable methods – pin-in-paste soldering may be possible, but you will need to check how much solder is maintained after assembling the socket.

Was this answer helpful?

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - H3165.pdf

ZIP

H3165-01 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C009XX Component Specification - PC Board Sockets for 1.00mm pins

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for H3165 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the PCB Socket contacts range

OTHER DOWNLOADS

PDF

Catalog page - PC Board 1mm Sockets

PDF

Catalog page - PCB Sockets Specification

PDF

Catalog page - PCB Sockets Introduction
