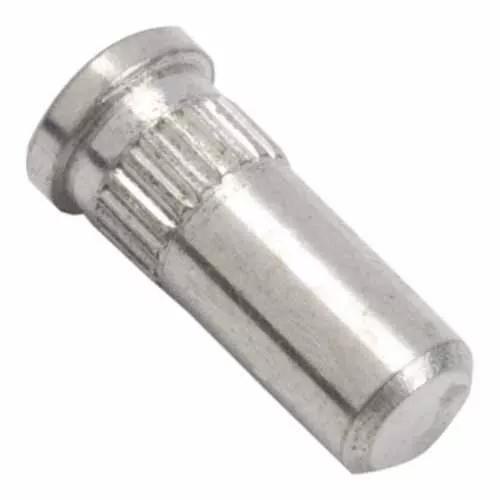

  • H3161-01 - Female Vertical Throughboard Ø1.00mm Contact

H3161-01

Female Vertical Throughboard Ø1.00mm Contact

Sockets - Individual Throughboard PCB Socket

  • PC Board Socket for mating Ø1.00mm Pin, retention feature - Gold clip, Tin shell.
  • Uses 4-finger Beryllium Copper contact clip - Vibration 10-2,000Hz, 10G, 6 hours.
  • Product still requires soldering for electrical connection.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Requires exemption 6c)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 2710 Website
Avnet Abacus Europe 7976 Buy Now
Digi-Key Global 27465 Buy Now
Farnell Europe 29115 Buy Now
Mouser Electronics Inc Global 23761 Buy Now
Newark USA 9754 Buy Now
TTI Europe Europe 291000 Website
TTI Inc USA 13046 Buy Now
Harwin Europe 366000

Stock available: contact distributor to purchase

View more stock

Part Number Stock Count View Stock
H3161-01 770827 View Stock
H3161-05 146671 View Stock
H3161-46 82214 View Stock

Product Information

Specification

+
Product Type: Sockets - Individual Throughboard PCB Socket
Contact Gender: Female/Socket/Jack
Connector Orientation: Vertical
Connection Type: PC Tail / Throughboard
Mating Pin Size: Ø1mm
Current Rating: 10A
Operating Temperature: -55°C to +125°C
Soldering Data: Max Solder Temperature: 260°C for 10 seconds

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Beryllium Copper contact clip, Brass shell
Individual Part Weight: 0.069g
Packaging Style: Bulk/Loose

Dimensions

+
Total Number of Contacts: 1
Body Length: 5.25mm
Height of Connector above PCB: 0.5mm
Body Size: Ø2.33mm
Length of PC Tail: 4.75mm
Entry Style: Top Entry

Related Products

+
Product Family: H3161

Mating Products
