H3155-01

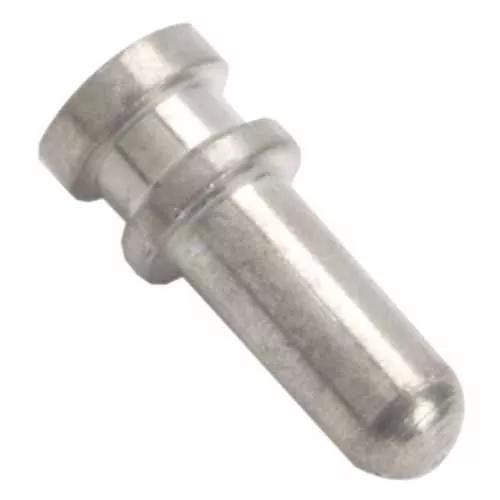

Female Vertical Throughboard Ø0.50mm Contact

Sockets - Individual Throughboard PCB Socket

  • Sub-miniature PC Board Socket for mating Ø0.5mm Pin – Gold clip, Tin shell.
  • Uses 4-finger Beryllium Copper contact clip from Datamate – Vibration 10-2,000Hz, 10G, 6 hours.

Technical Details

Specification

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

2A

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.023g

Overall Dimensions (L x W x D) in mm:

3.56 x Ø1.42

Height of Connector above PCB:

1.20mm

Length of Throughboard Tail:

2.36mm
