H2184-01

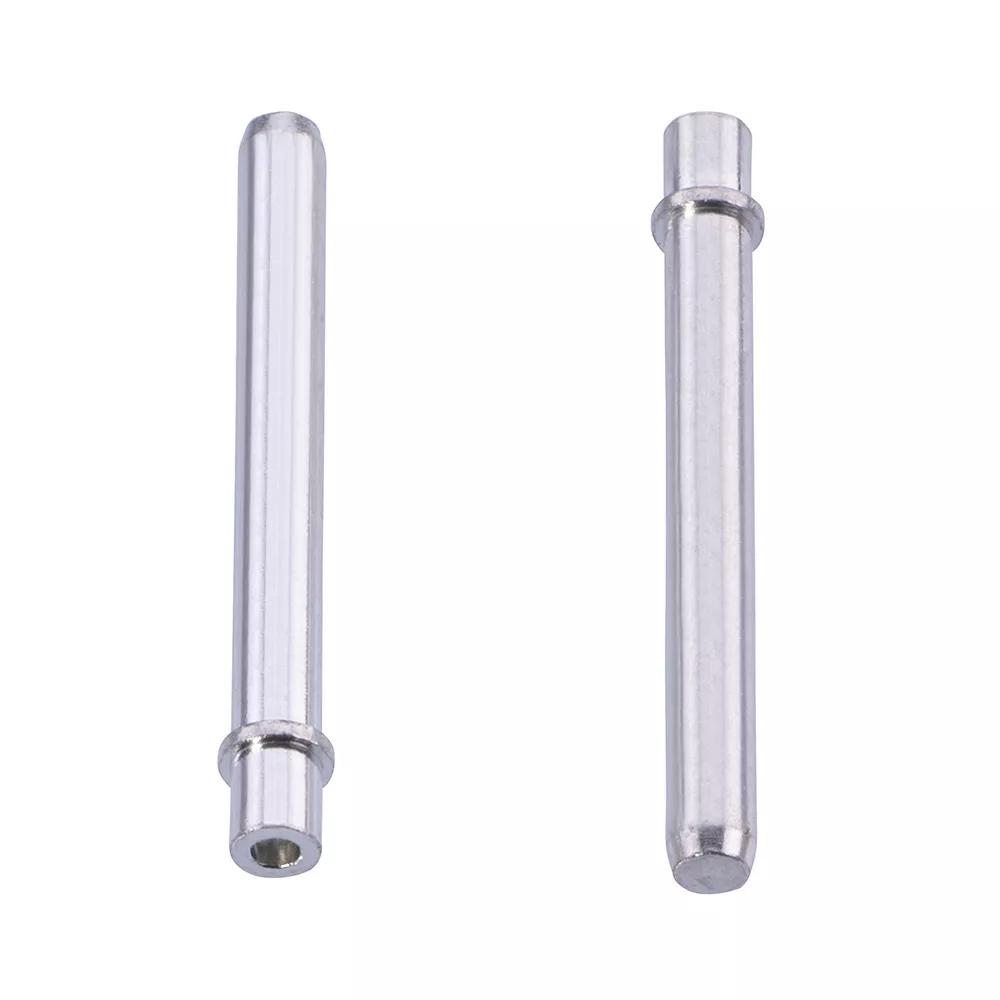

Male Vertical Throughboard Terminal Pin, Ø1.75mm

Hardware - Terminal Pin, Terminal Lug, Turret Lug

Order Sample

Add to Favorites

12,629 in stock Check availability

3 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Ø1.75mm pin diameter, 15.3mm mating length, for 1.6mm panel thickness.
Bright 100% Tin finish.
Swage for additional mechanical retention. Product still requires soldering for electrical connection.

H2184-01 - Male Vertical Throughboard Terminal Pin, Ø1.75mm

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø1.75mm

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.358g

Overall Dimensions (L x W x D) in mm:

17.65 x Ø2.25

Height of Connector above PCB:

15.65mm

Length of Throughboard Tail:

2.00mm

Frequently Asked Questions Ask a Question

The swaging of the terminal contact is for additional mechanical retention only – it will need soldering for a true gas-tight joint. You can use the terminal without swaging.

Was this answer useful?

Downloads

RoHS Compliant (2015/863/EU) with Exemption 6c
