H2182-05

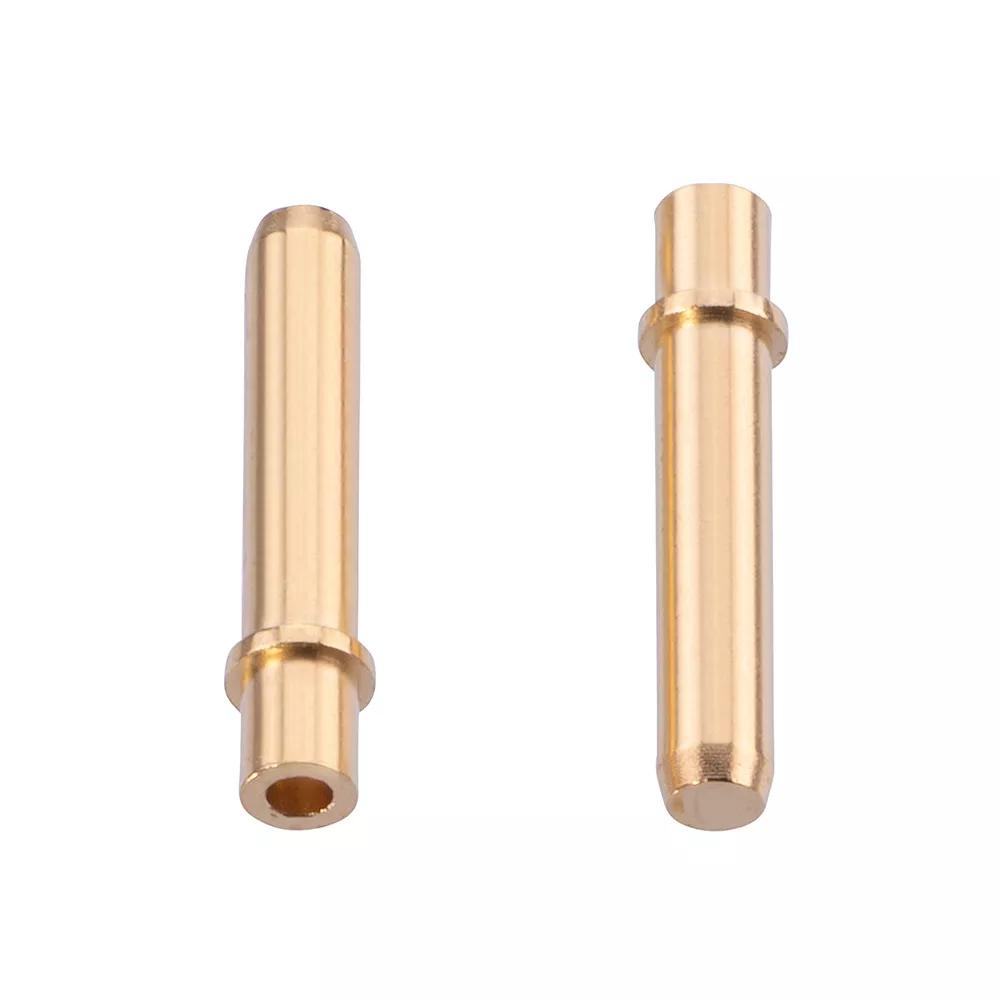

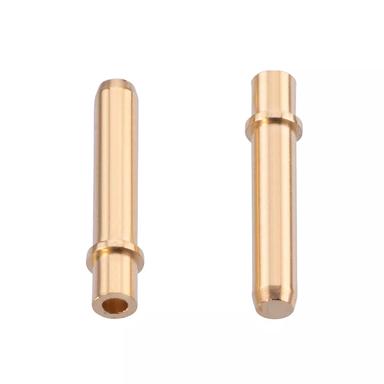

Male Vertical Throughboard Terminal Pin, Ø1.75mm

Hardware - Terminal Pin, Terminal Lug, Turret Lug

Order Sample

Add to Favorites

13,203 in stock Check availability

3 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Ø1.75mm pin diameter, 8.1mm mating length, for 1.6mm panel thickness.
Gold finish.
Swage for additional mechanical retention. Product still requires soldering for electrical connection.

H2182-05 - Male Vertical Throughboard Terminal Pin, Ø1.75mm

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø1.75mm

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.211g

Overall Dimensions (L x W x D) in mm:

10.45 x Ø2.25

Height of Connector above PCB:

8.45mm

Length of Throughboard Tail:

2.00mm

Frequently Asked Questions Ask a Question

The swaging of the terminal contact is for additional mechanical retention only – it will need soldering for a true gas-tight joint. You can use the terminal without swaging.

Was this answer useful?

Downloads

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download
