H2182-01

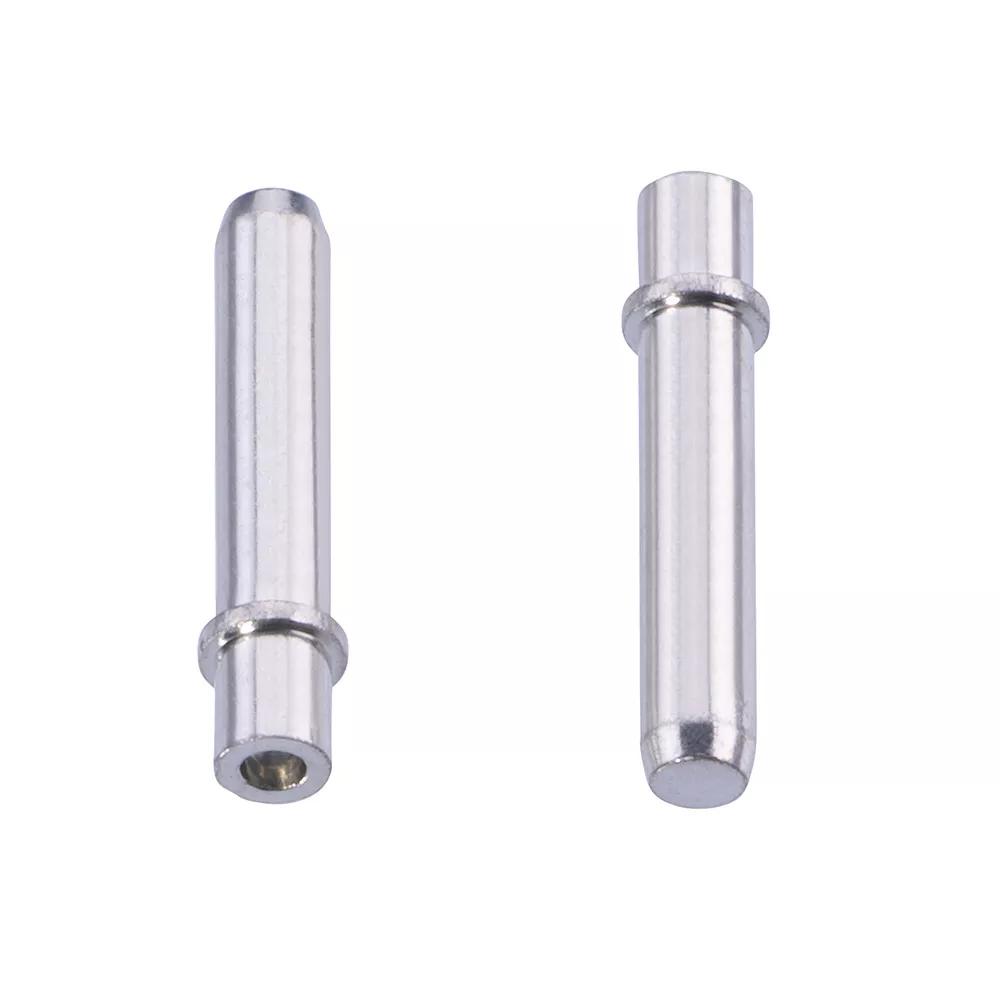

Male Vertical Throughboard Terminal Pin, Ø1.75mm

Hardware - Terminal Pin, Terminal Lug, Turret Lug

  • Ø1.75mm pin diameter, 8.1mm mating length, for 1.6mm panel thickness.
  • Bright 100% Tin finish.
  • Swage for additional mechanical retention. Product still requires soldering for electrical connection.
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø1.75mm

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.215g

Overall Dimensions (L x W x D) in mm:

10.45 x Ø2.25

Height of Connector above PCB:

8.45mm

Length of Throughboard Tail:

2.00mm

Availability

51,274 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 3000
Distributor Newark
Location USA
Quantity (Updated Daily) 2875
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2719
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 2000

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 40680

Questions & Answers Ask a Question

Do I need to swage this terminal contact? Does it need soldering as well?

The swaging of the terminal contact is for additional mechanical retention only – it will need soldering for a true gas-tight joint. You can use the terminal without swaging.
