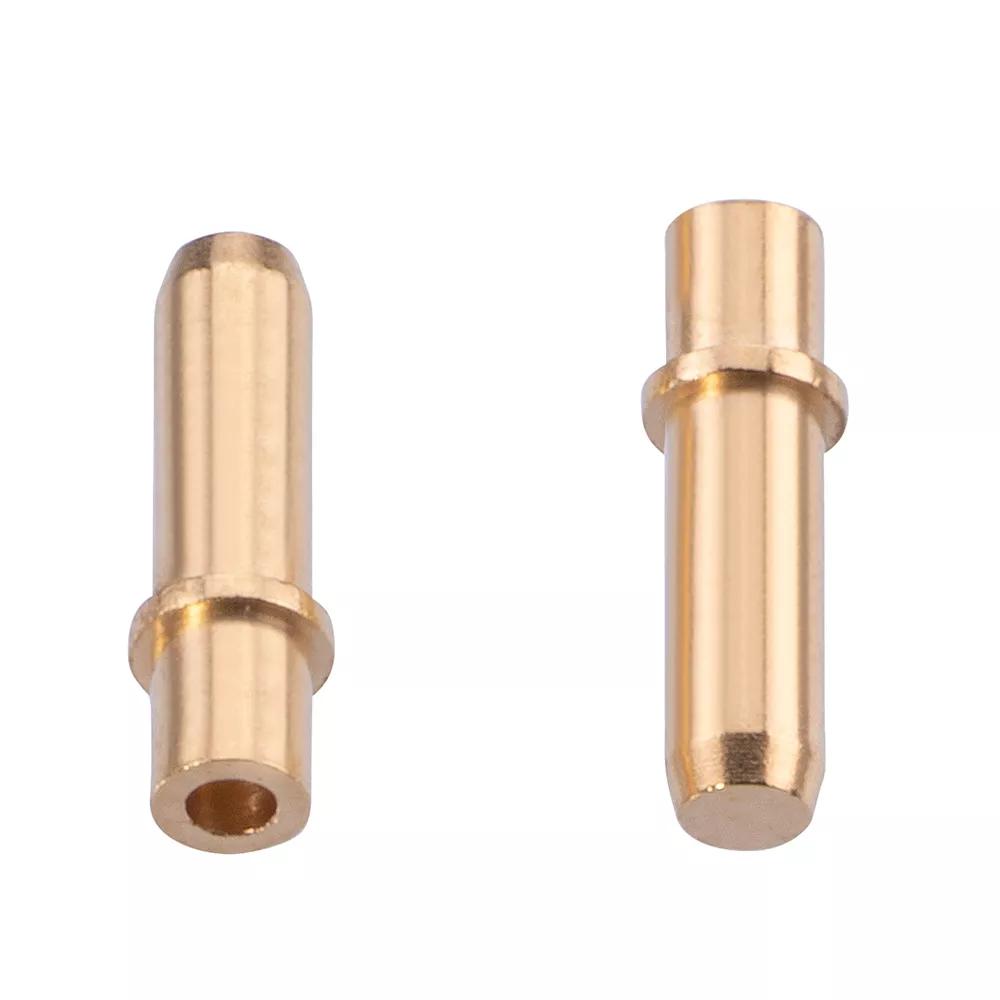

Male Vertical Throughboard Terminal Pin, Ø1.75mm
Hardware - Terminal Pin, Terminal Lug, Turret Lug
- Ø1.75mm pin diameter, 5mm mating length, for 1.6mm panel thickness.
- Gold finish.
- Swage for additional mechanical retention. Product still requires soldering for electrical connection.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
7.35 x Ø2.25
Height of Connector above PCB:
Length of Throughboard Tail:
Frequently Asked Questions Ask a Question
Do I need to swage this terminal contact? Does it need soldering as well?
The swaging of the terminal contact is for additional mechanical retention only – it will need soldering for a true gas-tight joint. You can use the terminal without swaging.
