H2176-01

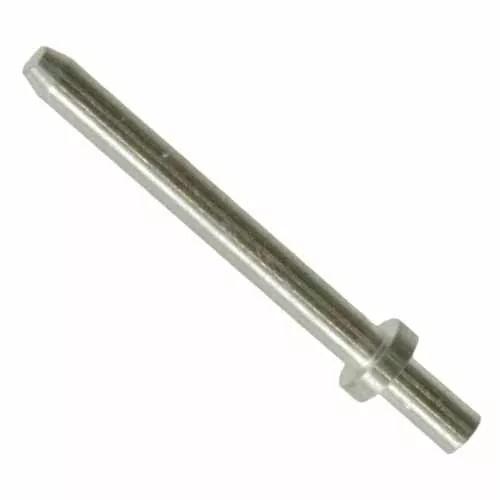

Male Vertical Throughboard Terminal Pin, Ø1mm

Hardware - Terminal Pin, Terminal Lug, Turret Lug

Add to Favorites

16,817 in stock   Check availability

4 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Ø1mm pin diameter, 9.5mm high, for 1.6mm panel thickness.
  • Bright 100% Tin finish.
  • Swage for additional mechanical retention. Product still requires soldering for electrical connection.

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø1mm

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.083g

Overall Dimensions (L x W x D) in mm:

11.61 x Ø1.78

Height of Connector above PCB:

9.53mm

Length of Throughboard Tail:

2.08mm

Frequently Asked Questions Ask a Question

Do I need to swage this terminal contact? Does it need soldering as well?

The swaging of the terminal contact is for additional mechanical retention only – it will need soldering for a true gas-tight joint. You can use the terminal without swaging.

Was this answer useful?

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Was this answer useful?
