H2175-05

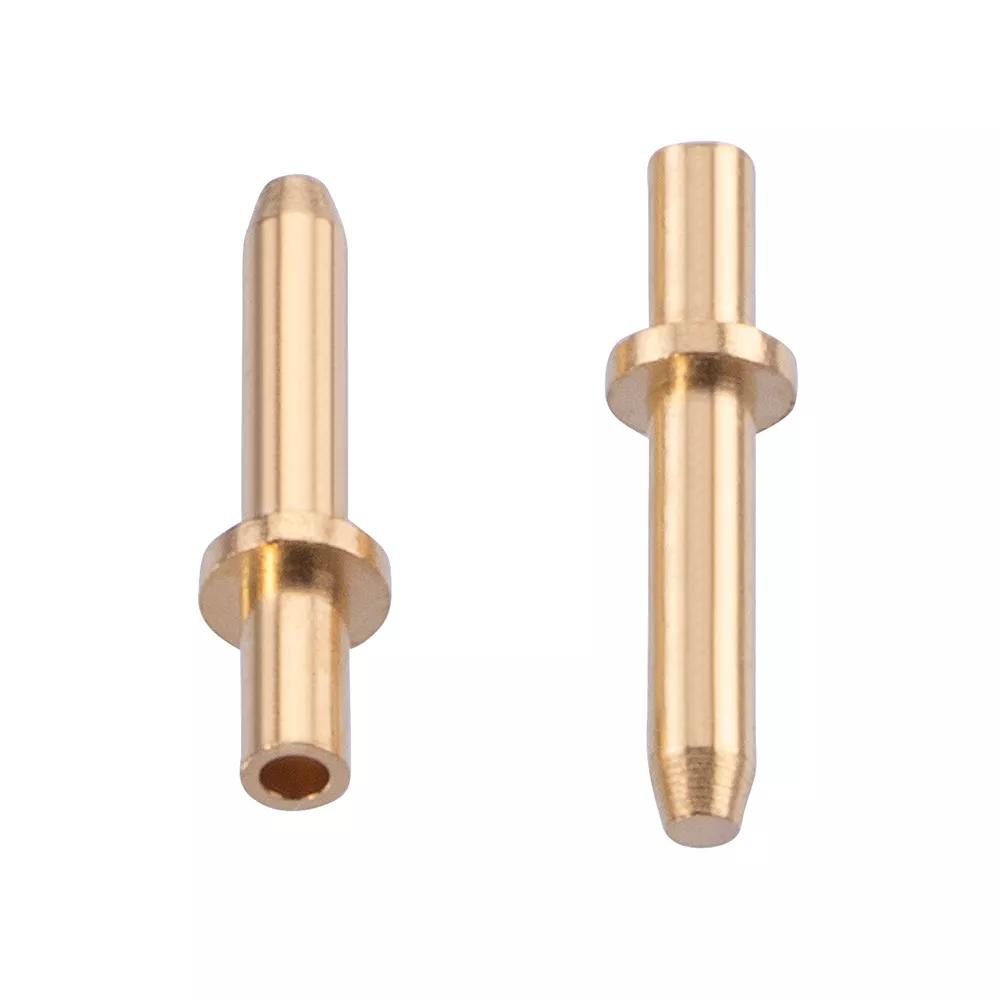

Male Vertical Throughboard Terminal Pin

Hardware - Terminal Pin, Terminal Lug, Turret Lug

  • Ø1mm pin diameter, 5.0mm high, for 1.6mm panel thickness.
  • Gold finish.
  • Swage for additional mechanical retention. Product still requires soldering for electrical connection.
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø1mm

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.044g

Overall Dimensions (L x W x D) in mm:

6.98 x Ø1.78

Height of Connector above PCB:

4.90mm

Length of Throughboard Tail:

2.08mm

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status515
Avnet Abacus
Europe
Status1000
Digi-Key
Global
Status9097
Harwin
Global
Status32000
Mouser Electronics Inc
Global
Status6406

*Stock available: contact distributor to purchase
