H2174-05

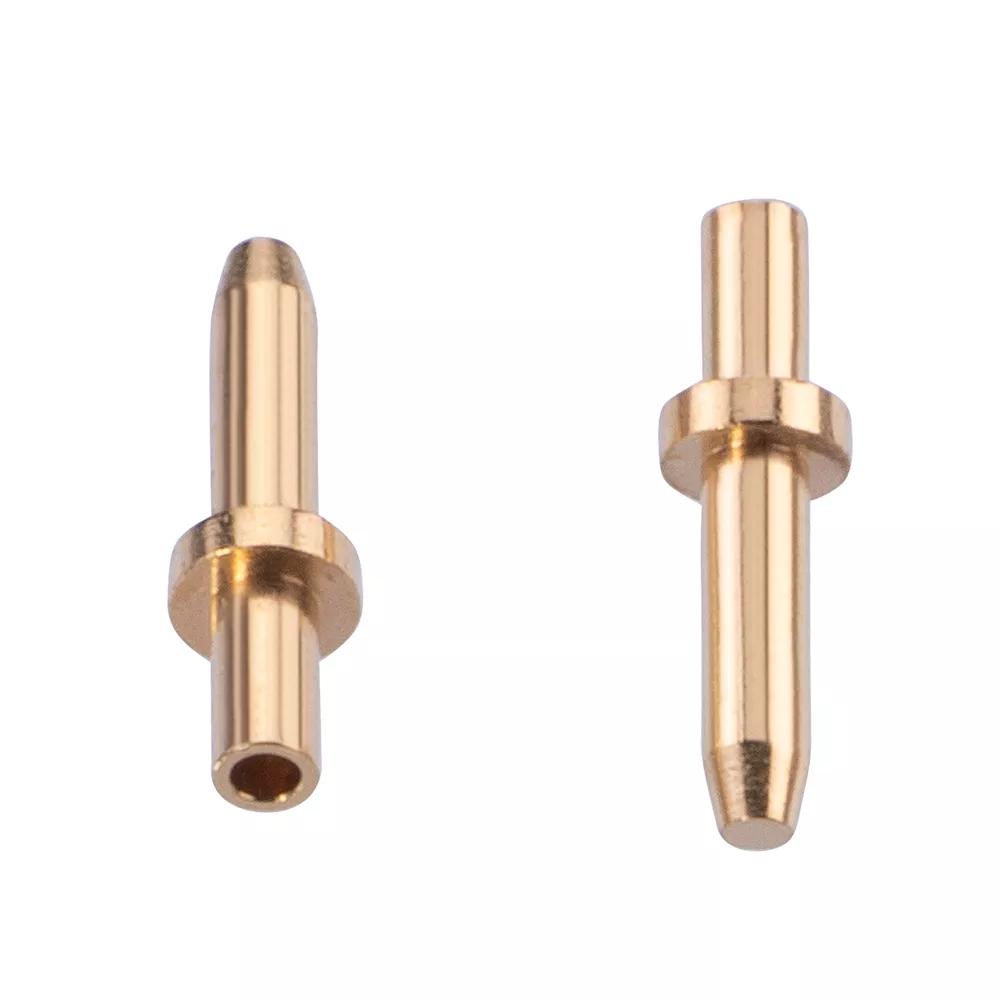

Male Vertical Throughboard Terminal Pin, Ø1mm

Hardware - Terminal Pin, Terminal Lug, Turret Lug

  • Ø1mm pin diameter, 4.3mm high, for 1.6mm panel thickness.
  • Gold finish.
  • Swage for additional mechanical retention. Product still requires soldering for electrical connection.
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø1mm

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.046g

Overall Dimensions (L x W x D) in mm:

6.40 x Ø1.78

Height of Connector above PCB:

4.32mm

Length of Throughboard Tail:

2.08mm

Availability

8,000 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order

Stock held by Harwin: contact distributor to purchase.

Distributor Location Quantity (Updated Daily)
Distributor Harwin
Location Global
Quantity (Updated Daily) 8000

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
