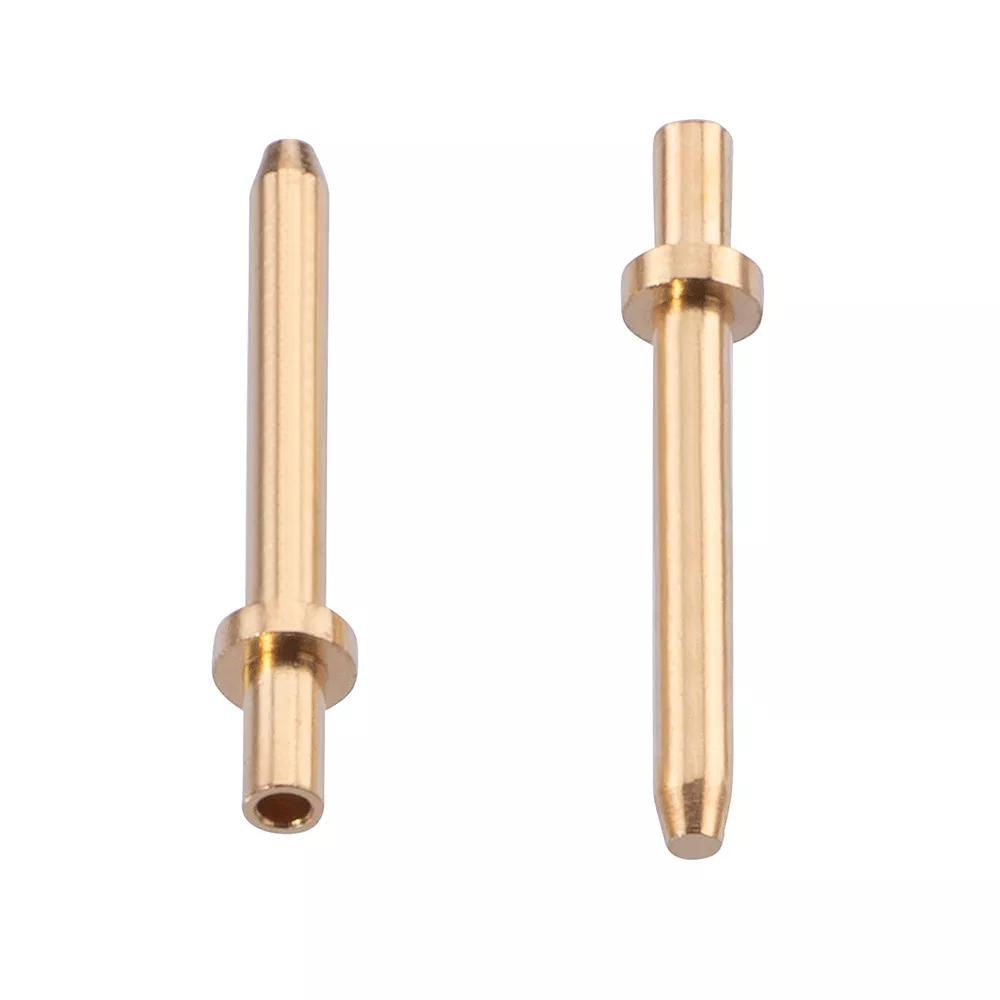

Male Vertical Throughboard Terminal Pin, Ø1mm
Hardware - Terminal Pin, Terminal Lug, Turret Lug
- Ø1mm pin diameter, 8.1mm high, for 1.6mm panel thickness.
- Gold finish.
- Swage for additional mechanical retention. Product still requires soldering for electrical connection.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
10.21 x Ø1.78
Height of Connector above PCB:
Length of Throughboard Tail:
42,953 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Questions & Answers Ask a Question
Do I need to swage this terminal contact? Does it need soldering as well?
The swaging of the terminal contact is for additional mechanical retention only – it will need soldering for a true gas-tight joint. You can use the terminal without swaging.
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
H2173-xx CAD Model (ZIP file containing STP)Download
