H2122-01

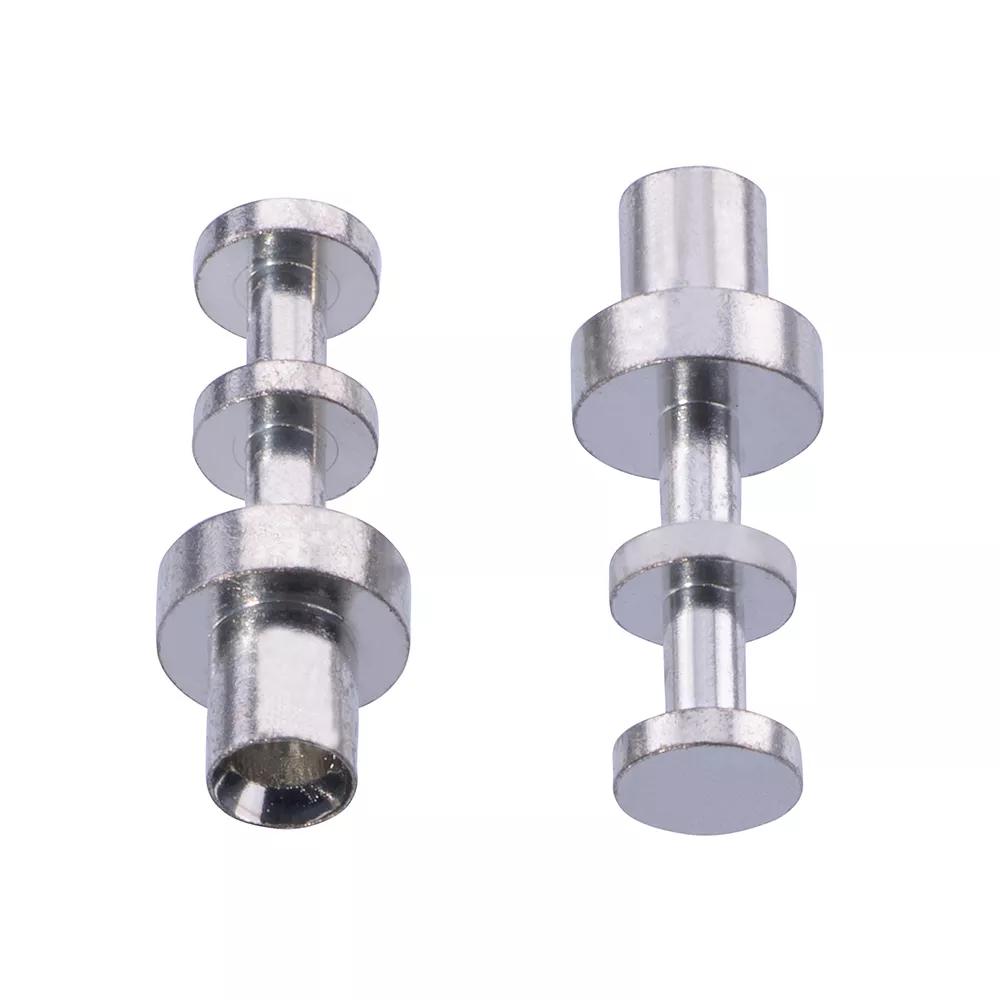

Vertical Throughboard Turret Lug, Triple
Hardware - Terminal Pin, Terminal Lug, Turret Lug
9,575 in stock Check availability
3 similiar products View products
Samacsys account required
No login is required
Product Description
- Triple turret, 9.52mm high, Ø3.5mm diameter, for 2.4mm panel thickness.
- Bright 100% Tin finish.
- Swage for additional mechanical retention. Product still requires soldering for electrical connection.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Gender:
Turret
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Number of Signal Contacts:
1
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Brass
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.591g
Overall Dimensions (L x W x D) in mm:
12.77 x Ø4.75
Height of Connector above PCB:
9.52mm
Length of Throughboard Tail:
3.25.00mm
Frequently Asked Questions Ask a Question
Do I need to swage this terminal contact? Does it need soldering as well?
The swaging of the terminal contact is for additional mechanical retention only – it will need soldering for a true gas-tight joint. You can use the terminal without swaging.
Was this answer useful?
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
Was this answer useful?
