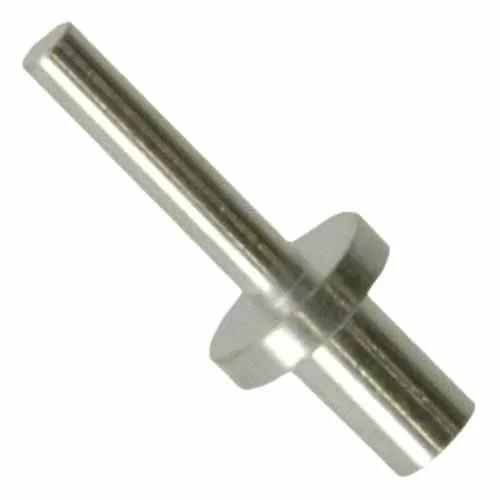

Image may be representative. Refer to the product title for more information.
Straight (vertical) above-board THT terminal pin, for 1.6mm panel thickness. Bright 100% Tin finish.
Ø0.77mm pin, 3.96mm pin length.
Swage for additional mechanical retention. Product still requires soldering for electrical connection.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Mating Pin Size
Ø0.8mm
Connector Orientation
Straight
Country of Origin
GB
Number of Power/Coax Contacts
1
Number of Signal Contacts
1
Operating Temperature
-40°C to +105°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface
100% Tin over Nickel
Base Material of Contact
Brass
Packaging Style
Bulk/Loose
Finish / Plating on Termination
100% Tin over Nickel
Dimensions
Weight
0.06g
Dimensions
6.52 x Ø2.39
PC Tail Length
8.23mm
Height of Connector above PCB
4.47mm
Downloads
Product Information
Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
IS-35 - Punch and Die Tools Instruction Sheet
Environmental Compliance
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for H2105A01 product
Harwin REACH Statement - H2105A01
RoHS Declaration - H2105A01
