H2103A01

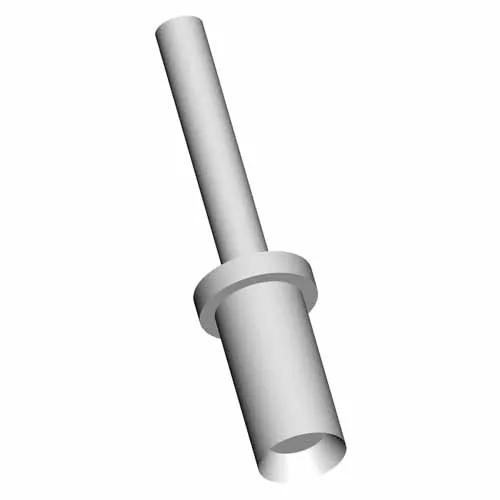

Male Vertical Throughboard Terminal Pin, Ø0.95mm

Hardware - Terminal Pin, Terminal Lug, Turret Lug

  • Ø0.95mm pin diameter, for 3.2mm panel thickness.
  • Bright 100% Tin finish.
  • Swage for additional mechanical retention. Product still requires soldering for electrical connection.
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.95mm

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.133g

Overall Dimensions (L x W x D) in mm:

10.16 x Ø2.39

Height of Connector above PCB:

6.53mm

Length of Throughboard Tail:

3.63.00mm

Availability

8,973 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 8973

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
