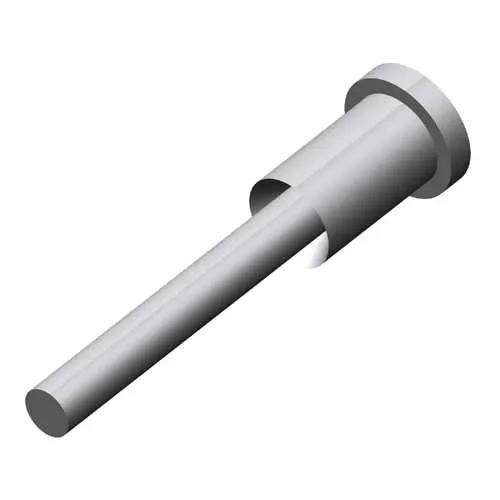

√ò0.95mm Terminal Pin, Below-board design, for 2.4mm panel thickness

EZi

Traceparts account required

H2102B01

√ò0.95mm Terminal Pin, Below-board design, for 2.4mm panel thickness


Hardware - Terminal Pin, Terminal Lug, Turret Lug

  • √ò0.95mm pin diameter, Below-board design, for 2.4mm panel thickness.

  • Bright 100% Tin finish.

  • Swage for additional mechanical retention. Product still requires soldering for electrical connection.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Test Reports

Technical Details

Specifications

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Vertical

  • PCB Mounting:

    PC Tail / Throughboard

  • Mating Pin Size:

    Ø0.95mm

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Finish / Plating on Contact Surface:

    100% Tin over Nickel

  • Base Material of Contact:

    Brass

  • Packaging Style:

    Bulk/Loose

  • Height of Connector above PCB:

    0.51mm

  • PC Tail Length:

    9.20mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    PC Tail / Throughboard

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    0.122g

  • Dimensions:

    9.71 x √ò2.39

  • Operating Temperature:

    -40°C to +105°C

Downloads

    Environmental Compliance

  • H2102B01

  • Material composition for H2102B01 product

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - H2101B01-H2103B01.pdf

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • IS-35 - Punch and Die Tools Instruction Sheet

  • Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)

  • Test Reports

  • Test Report HT083 - Hardware Terminals and Lugs - Current vs Temperature Rise
