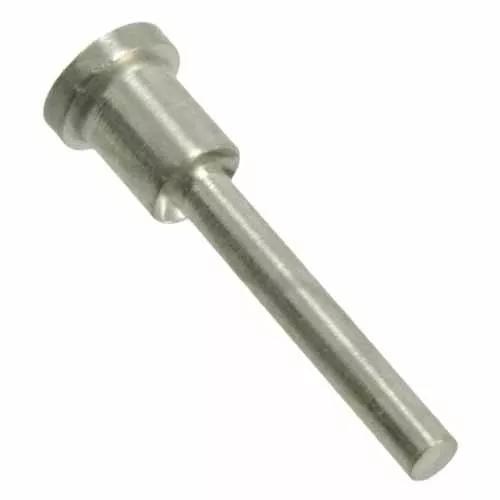

Ø0.95mm pin diameter, Below-board design, for 1.6mm panel thickness.
Bright 100% Tin finish.
Swage for additional mechanical retention. Product still requires soldering for electrical connection.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Mating Pin Size
Ø0.95mm
Connector Orientation
Vertical
Country of Origin
GB
Number of Power/Coax Contacts
1
Number of Signal Contacts
1
Operating Temperature
-40°C to +105°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface
100% Tin over Nickel
Base Material of Contact
Brass
Packaging Style
Bulk/Loose
Finish / Plating on Termination
100% Tin over Nickel
Dimensions
Weight
0.104g
Dimensions
8.90 x Ø2.39
PC Tail Length
8.39mm
Height of Connector above PCB
0.51mm
Downloads
Product Information
Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
IS-35 - Punch and Die Tools Instruction Sheet
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for H2101B01 product
RoHS Declaration - H2101B01
