Home > H2101-01
Active

H2101-01

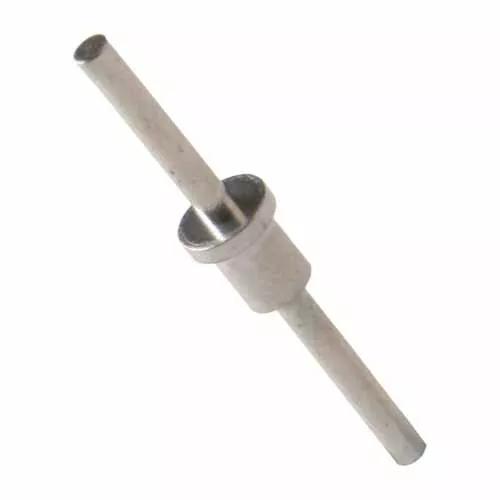

Male Vertical Throughboard Terminal Pin, Ø0.95mm

Hardware - Terminal Pin, Terminal Lug, Turret Lug

  • Ø0.95mm pin diameter, Double-ended, for 1.6mm panel thickness.
  • Bright 100% Tin finish.
  • Swage for additional mechanical retention. Product still requires soldering for electrical connection.
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.95mm

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.131g

Overall Dimensions (L x W x D) in mm:

14.30 x Ø2.39

Height of Connector above PCB:

6.07mm

Length of Throughboard Tail:

8.23.00mm

Availability

16,354 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 6804
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 3550

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 6000

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - H2101-H2103.pdf

ZIP

H2101-xx CAD Model (ZIP file containing STP)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for H2101-01 product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)

PDF

IS-35 - Punch and Die Tools Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Turned Terminals
