Hardware - Terminal Pin, Terminal Lug, Turret Lug

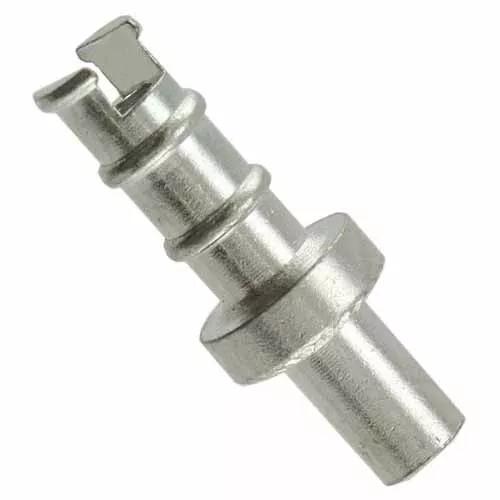

Triple turret with slot, 9.12mm high, Ø3.18mm diameter, for 3.2mm panel thickness.
Bright 100% Tin finish. Knurled underside of shoulder to prevent rotation once swaged.
Swage for additional mechanical retention. Product still requires soldering for electrical connection.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Connector Orientation:
Vertical
Country of Origin:
GB
Number of Power/Coax Contacts:
1
Number of Signal Contacts:
1
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Brass
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
100% Tin over Nickel
Dimensions
Weight:
0.557g
Dimensions:
13.08 x Ø4.75
PC Tail Length:
3.96mm
Height of Connector above PCB:
9.12mm
Downloads
Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
IS-35 - Punch and Die Tools Instruction Sheet
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for H2073Z01 product
RoHS - H2073Z01
