H2072-01

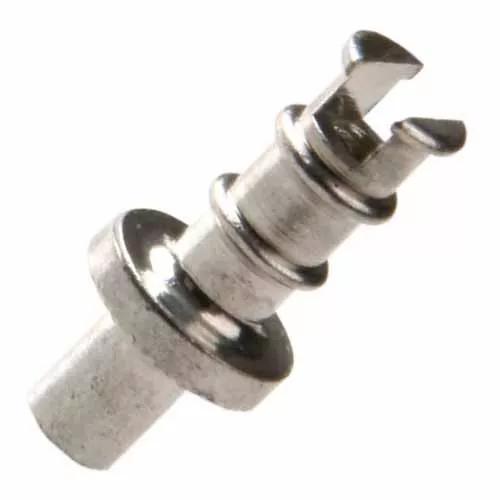

Vertical Throughboard Slotted Turret Lug, Triple

Hardware - Terminal Pin, Terminal Lug, Turret Lug

  • Triple turret with slot, 6.29mm high, Ø3.25mm diameter, for 1.6mm panel thickness.
  • Bright 100% Tin finish. Knurled underside of shoulder to prevent rotation once swaged.
  • Swage for additional mechanical retention. Product still requires soldering for electrical connection.
Add to Favorites

Technical Details

Specification

Contact Gender:

Slotted Turret

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.337g

Overall Dimensions (L x W x D) in mm:

8.74 x Ø3.96

Height of Connector above PCB:

6.30mm

Length of Throughboard Tail:

2.45.00mm

Availability

13,580 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 953
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 427
Distributor Genalog
Location Europe
Quantity (Updated Daily) 200

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 12000

Questions & Answers Ask a Question

Do I need to swage this terminal contact? Does it need soldering as well?

The swaging of the terminal contact is for additional mechanical retention only – it will need soldering for a true gas-tight joint. You can use the terminal without swaging.

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - H2072.pdf

ZIP

H2072-xx CAD Model (ZIP file containing STP)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for H2072-01 product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)

PDF

IS-35 - Punch and Die Tools Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Turned Turret Lugs
