Home > H2055-01
Active

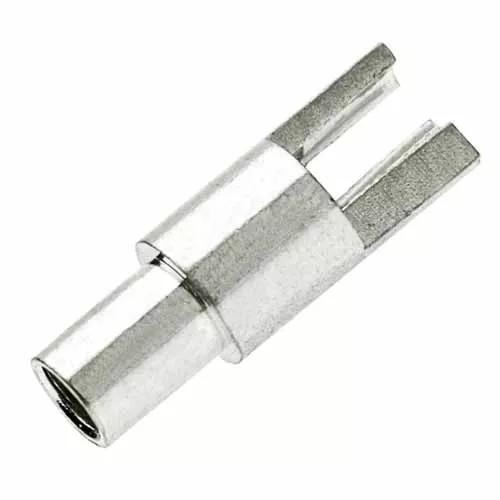

H2055-01

Vertical Throughboard Slotted Lug

Hardware - Terminal Pin, Terminal Lug, Turret Lug

  • 6.35mm high, Ø3.18mm diameter, for 2.4mm panel thickness.
  • Bright 100% Tin finish.
  • Swage for additional mechanical retention. Product still requires soldering for electrical connection.
Add to Favorites

Technical Details

Specification

Contact Gender:

Slotted

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.28g

Overall Dimensions (L x W x D) in mm:

9.53 x Ø3.18

Height of Connector above PCB:

6.35mm

Length of Throughboard Tail:

3.25.00mm

Availability

1,004 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 1000
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 4

Questions & Answers Ask a Question

Do I need to swage this terminal contact? Does it need soldering as well?

The swaging of the terminal contact is for additional mechanical retention only – it will need soldering for a true gas-tight joint. You can use the terminal without swaging.

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
