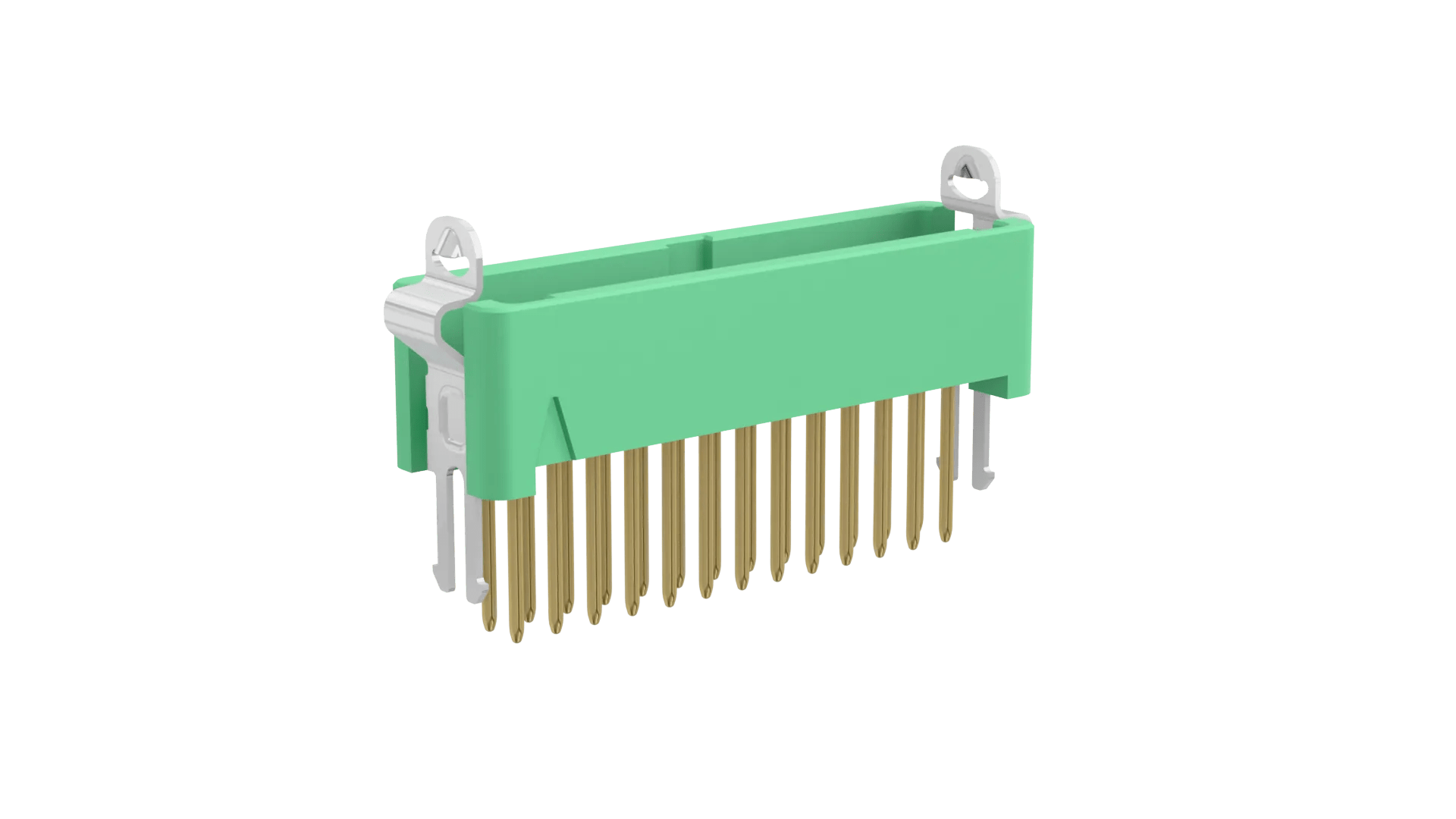

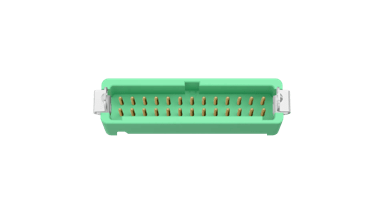

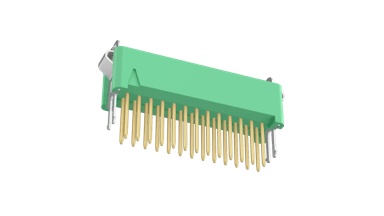

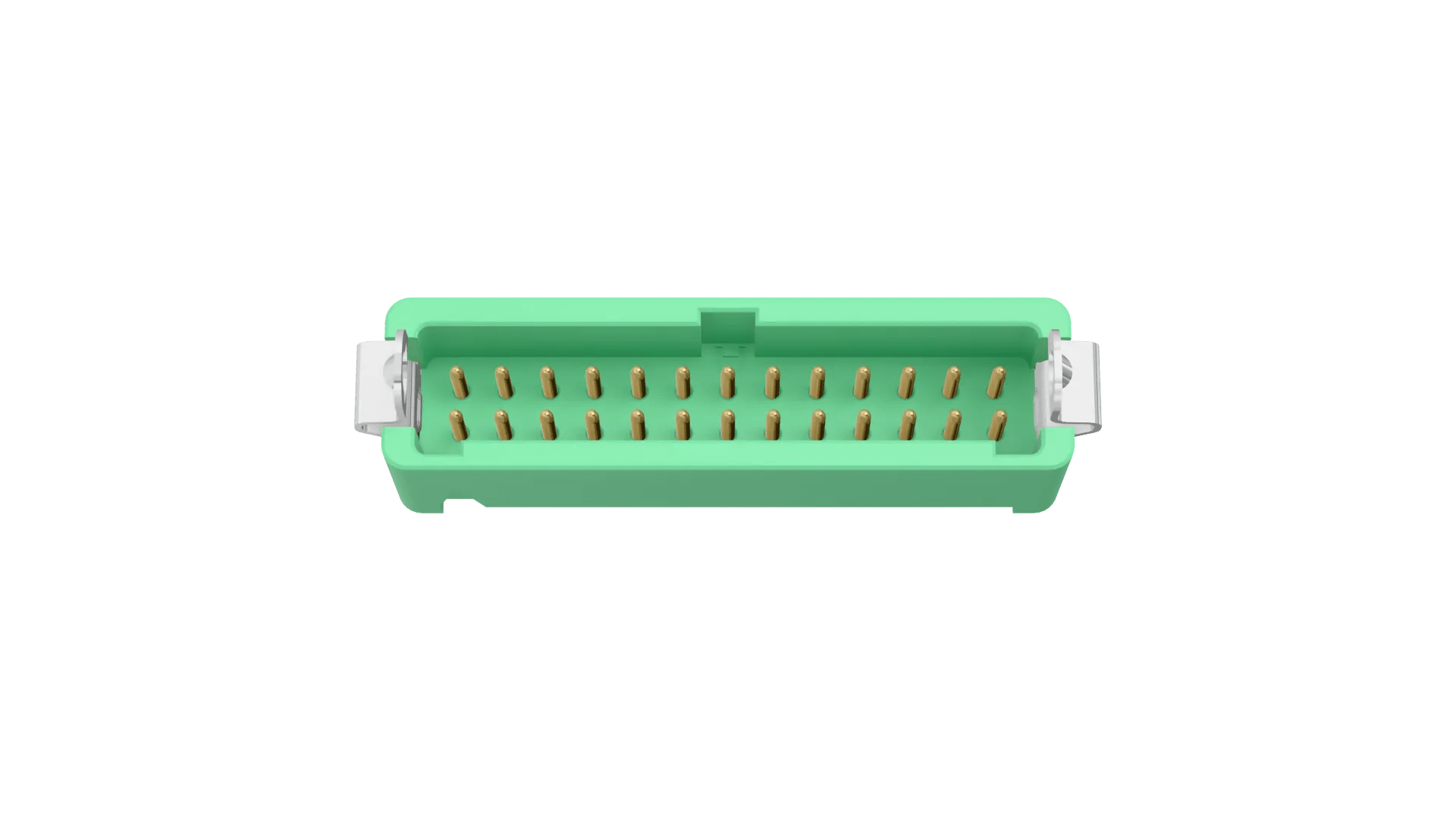

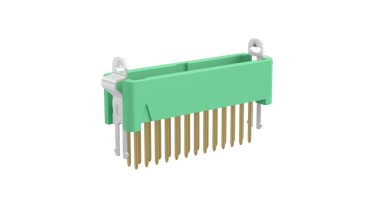

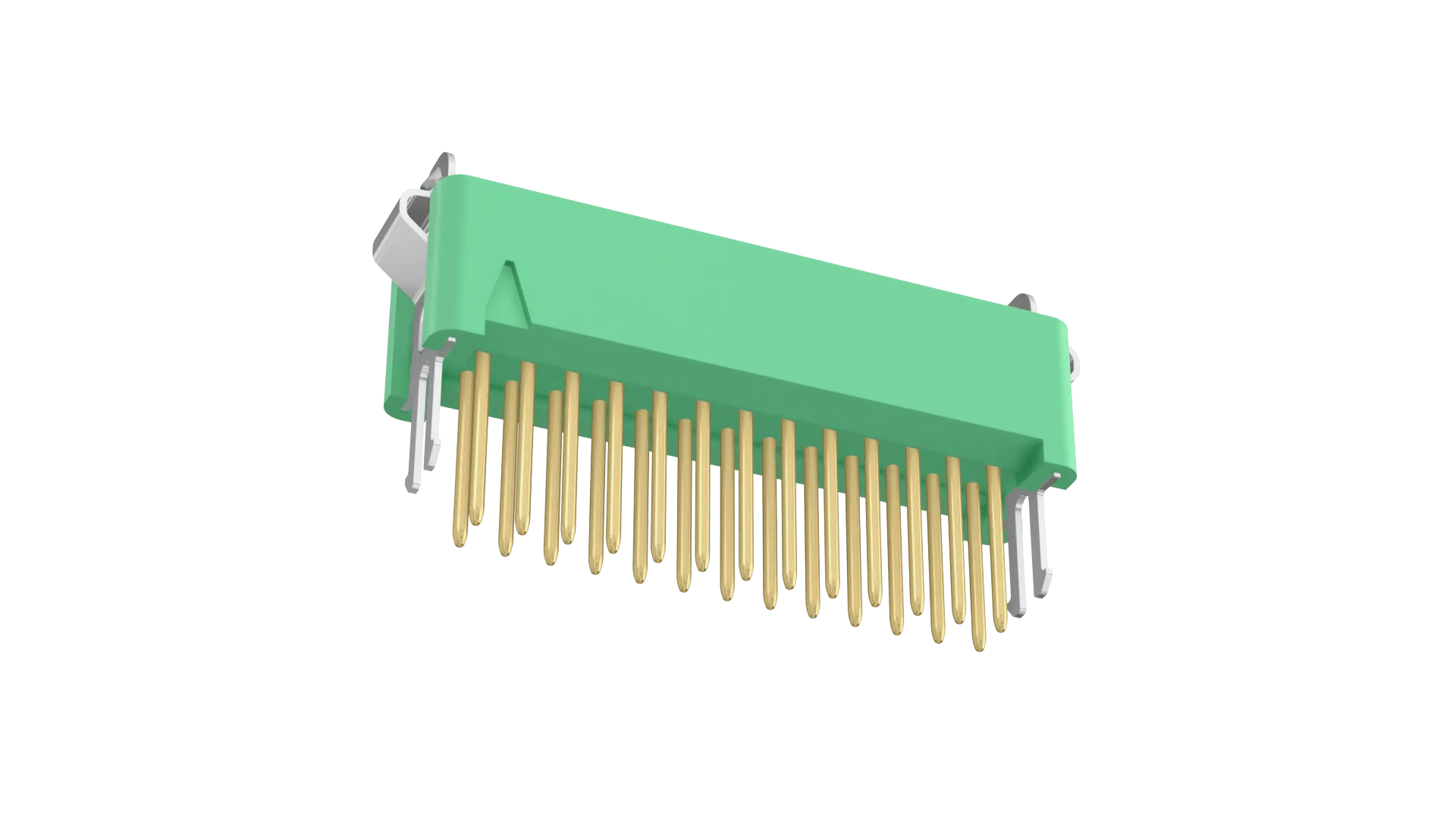

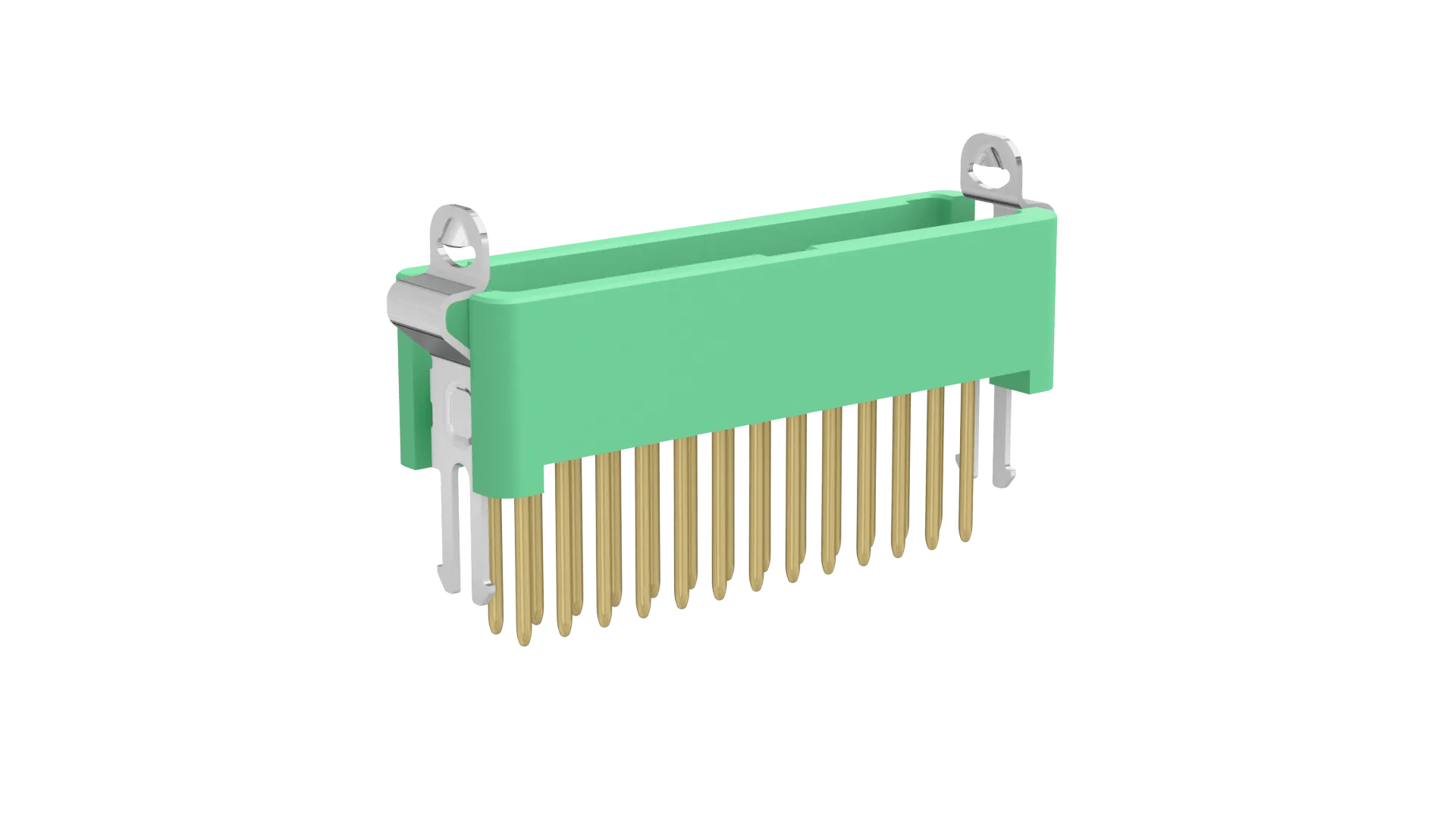

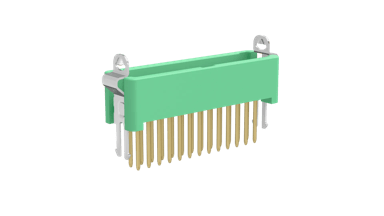

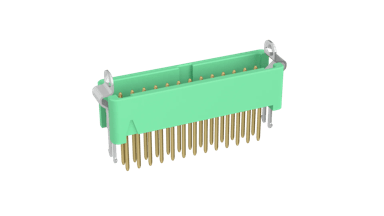

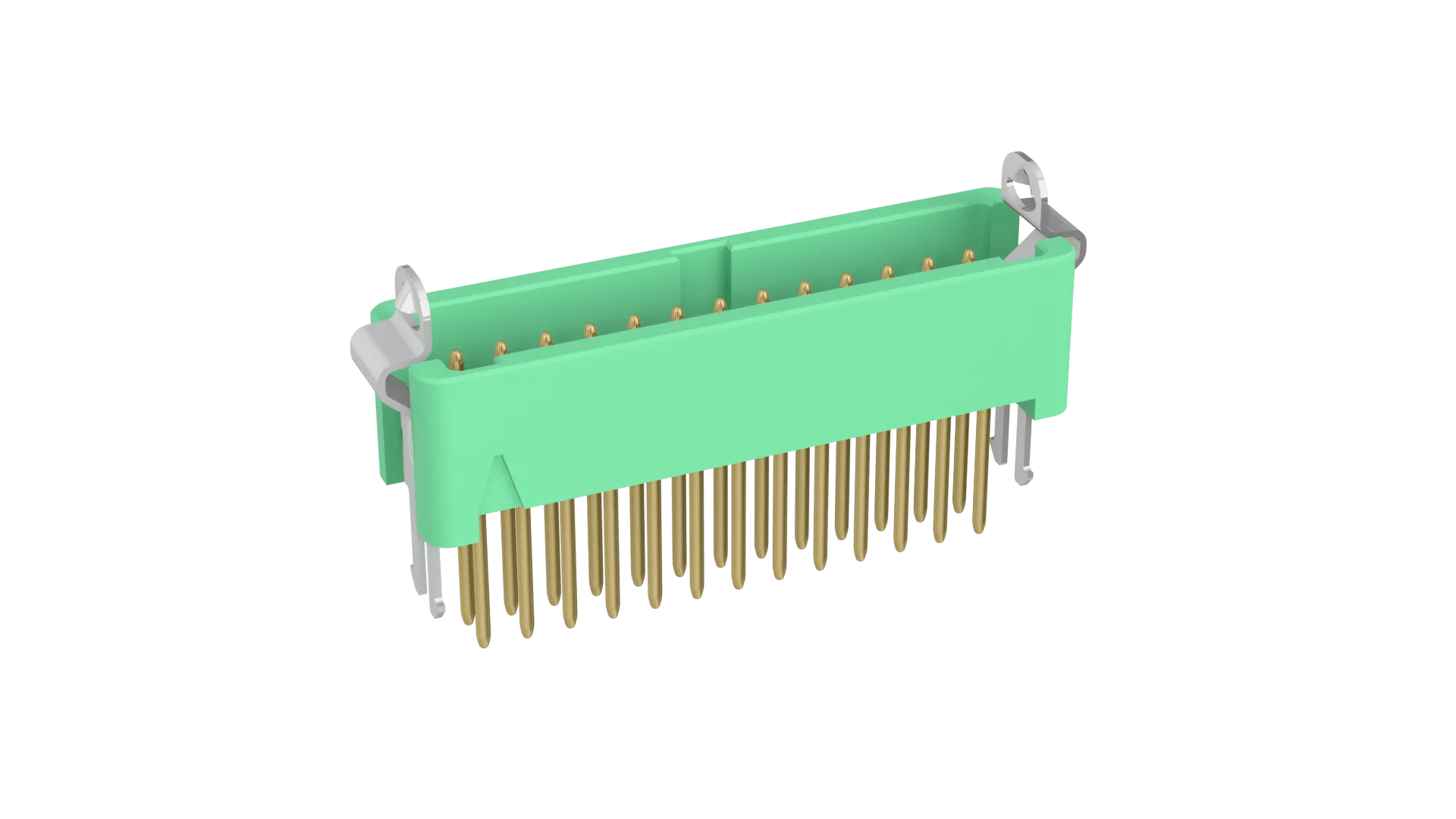

13+13 Pos. Male DIL Vertical Throughboard Conn. Latches
1.25mm Pitch High-Reliability Connector - Gecko with Latches
- Double Row male 4.5mm PC Tail connector, Latches with through-hole barbs for 2.4mm PCB thickness – 26 contacts (13+13). Through-hole barbs can be used as location pegs, or soldered to PCB for additional strain relief.
- Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Max Solder Temperature: 260°C for 10 seconds
Style of Latches:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Tape and Reel Strip
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
20.20 x 4.90 x 11.30
Height of Connector above PCB:
Length of Throughboard Tail:
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
Questions & Answers Ask a Question
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z125-9262600 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.
