G125-MV21005L0P

5+5 Pos. Male DIL Vertical Throughboard Conn. no Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

Order Sample

Add to Favorites

153 in stock Check availability

6 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Double Row male 4.5mm PC Tail connector, no latches – 10 contacts (5+5). Connector housings are not fitted with latches.
Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C125XX.

G125-MV21005L0P - 5+5 Pos. Male DIL Vertical Throughboard Conn. no Latches

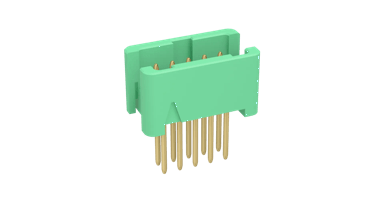

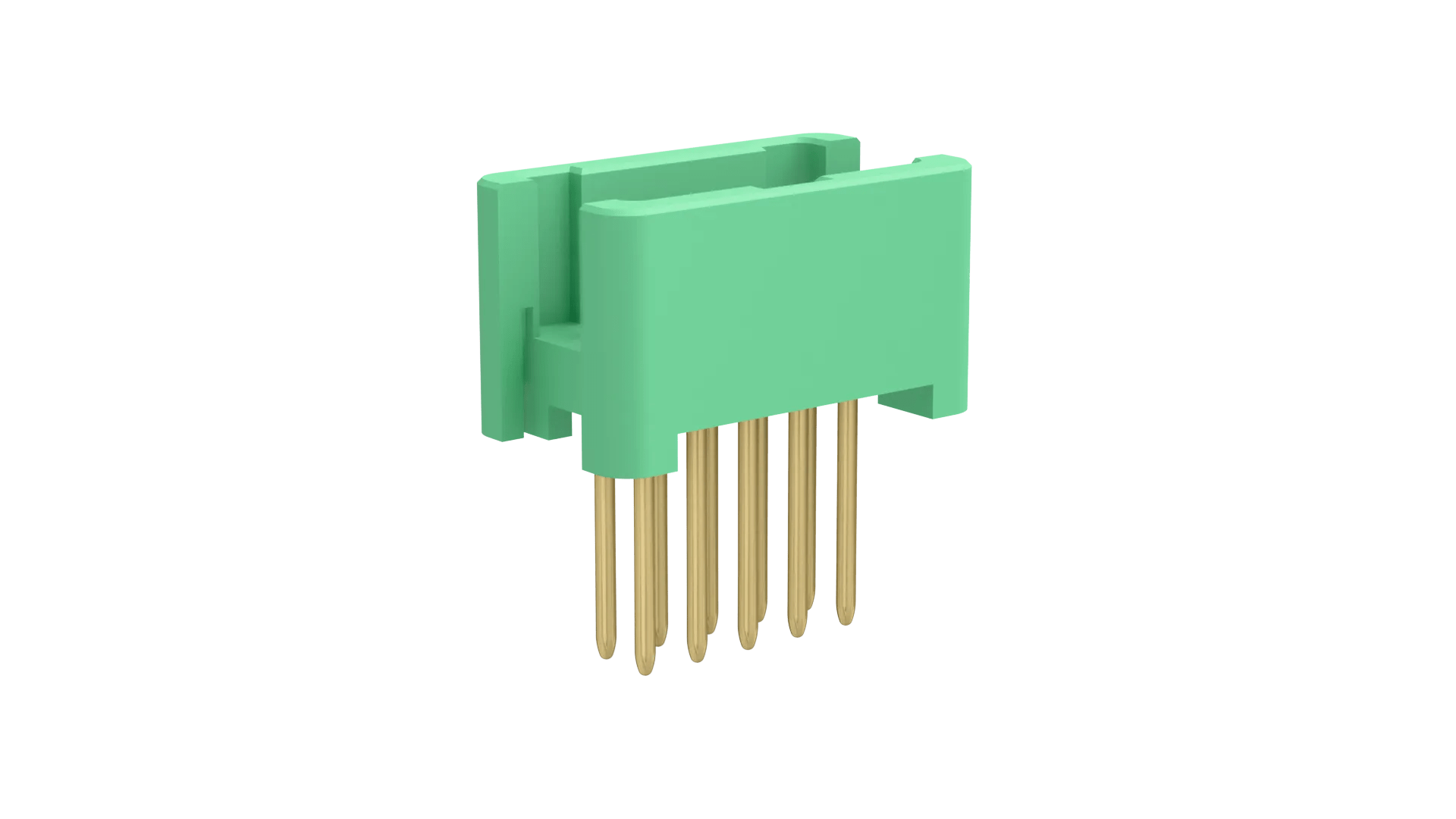

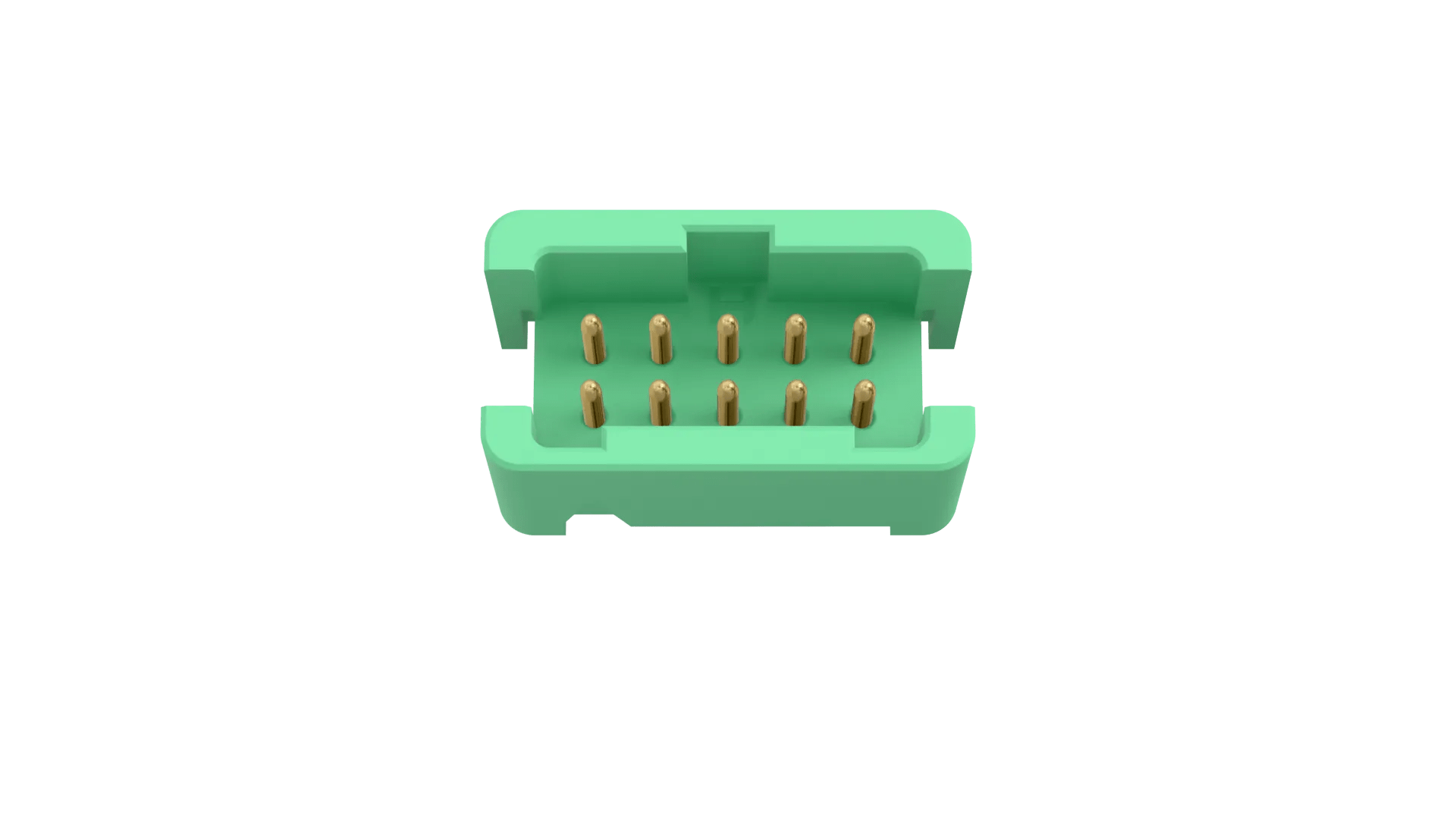

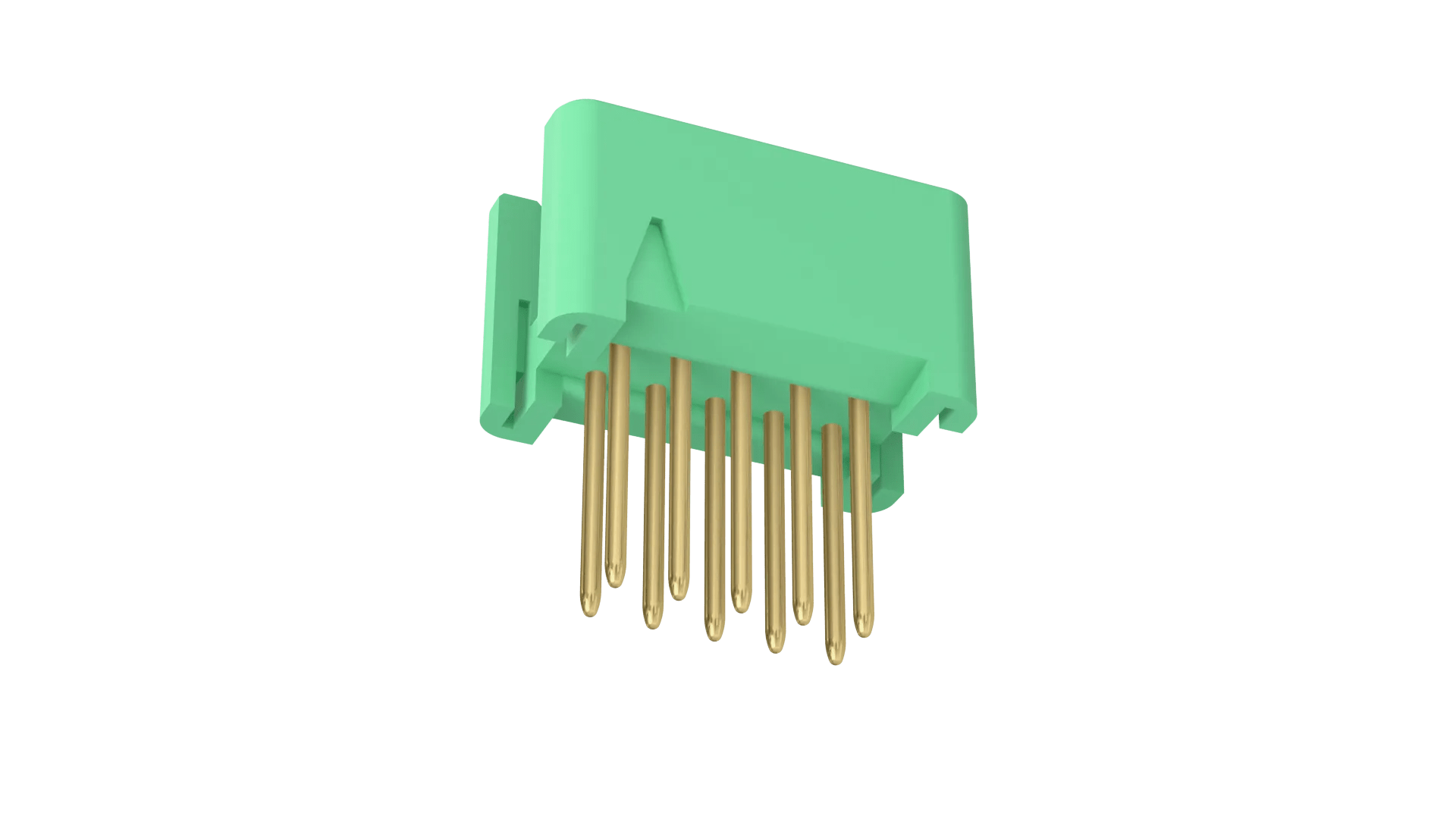

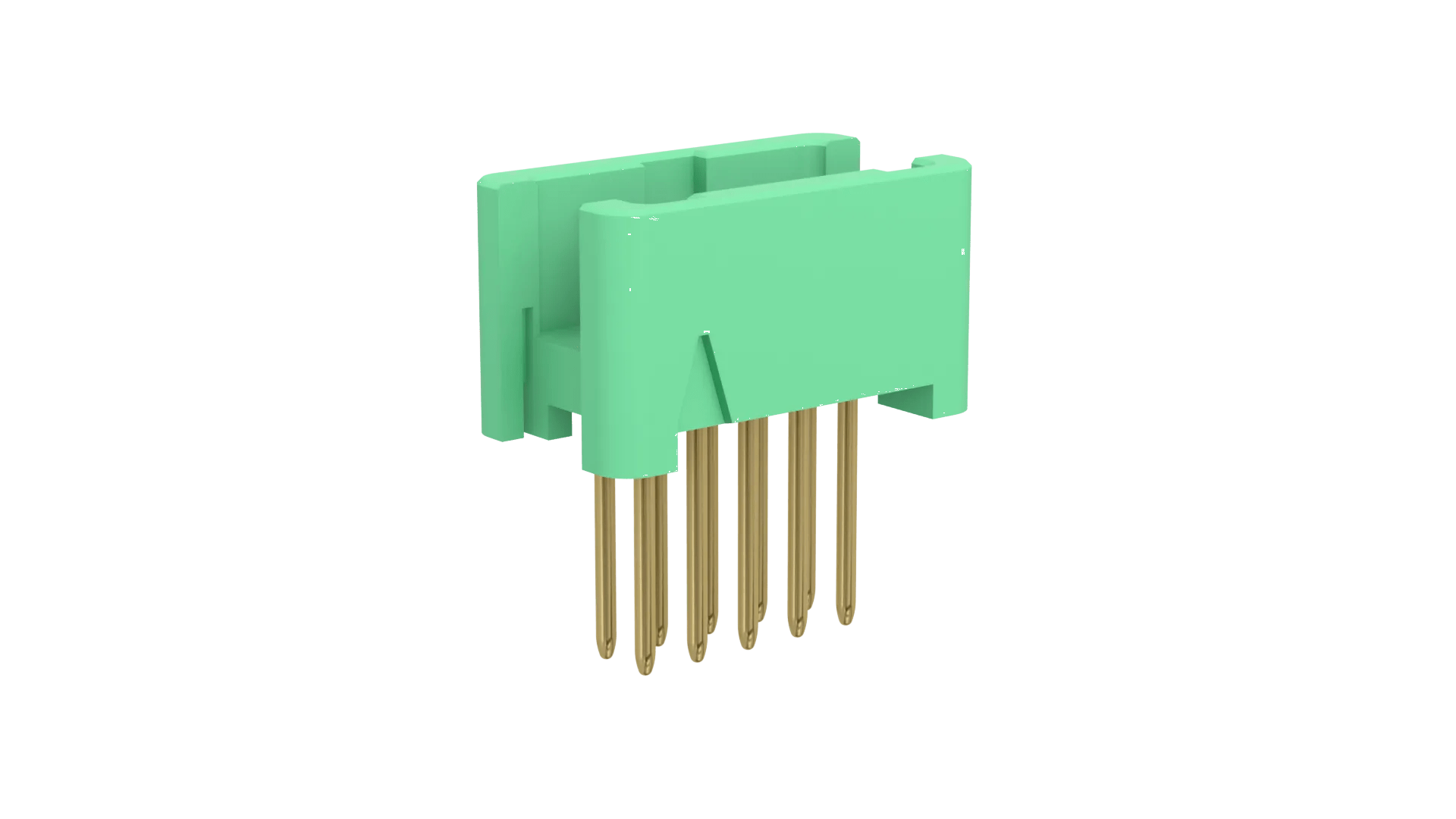

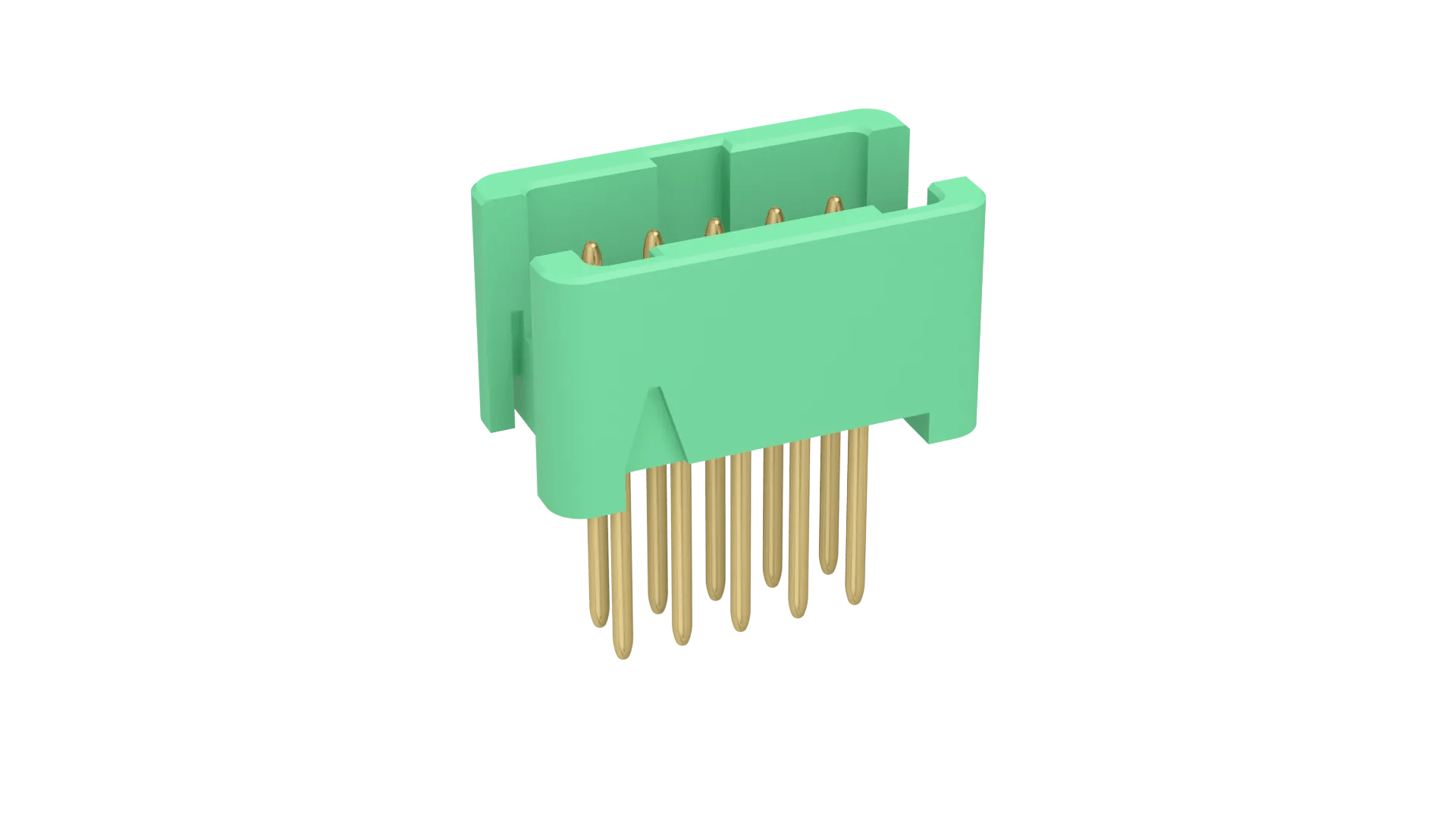

Representative image of product family

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

None

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Individual Part Weight:

0.363g

Overall Dimensions (L x W x D) in mm:

8.80 x 4.90 x 9.40

Height of Connector above PCB:

4.90mm

Length of Throughboard Tail:

4.50mm

Mating Profiles:

Catalog page - Gecko with Latches Mating Profiles
