Home > G125-MV15005M1R
Active Product

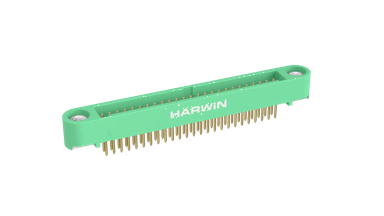

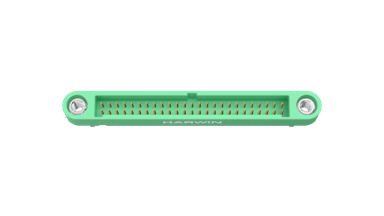

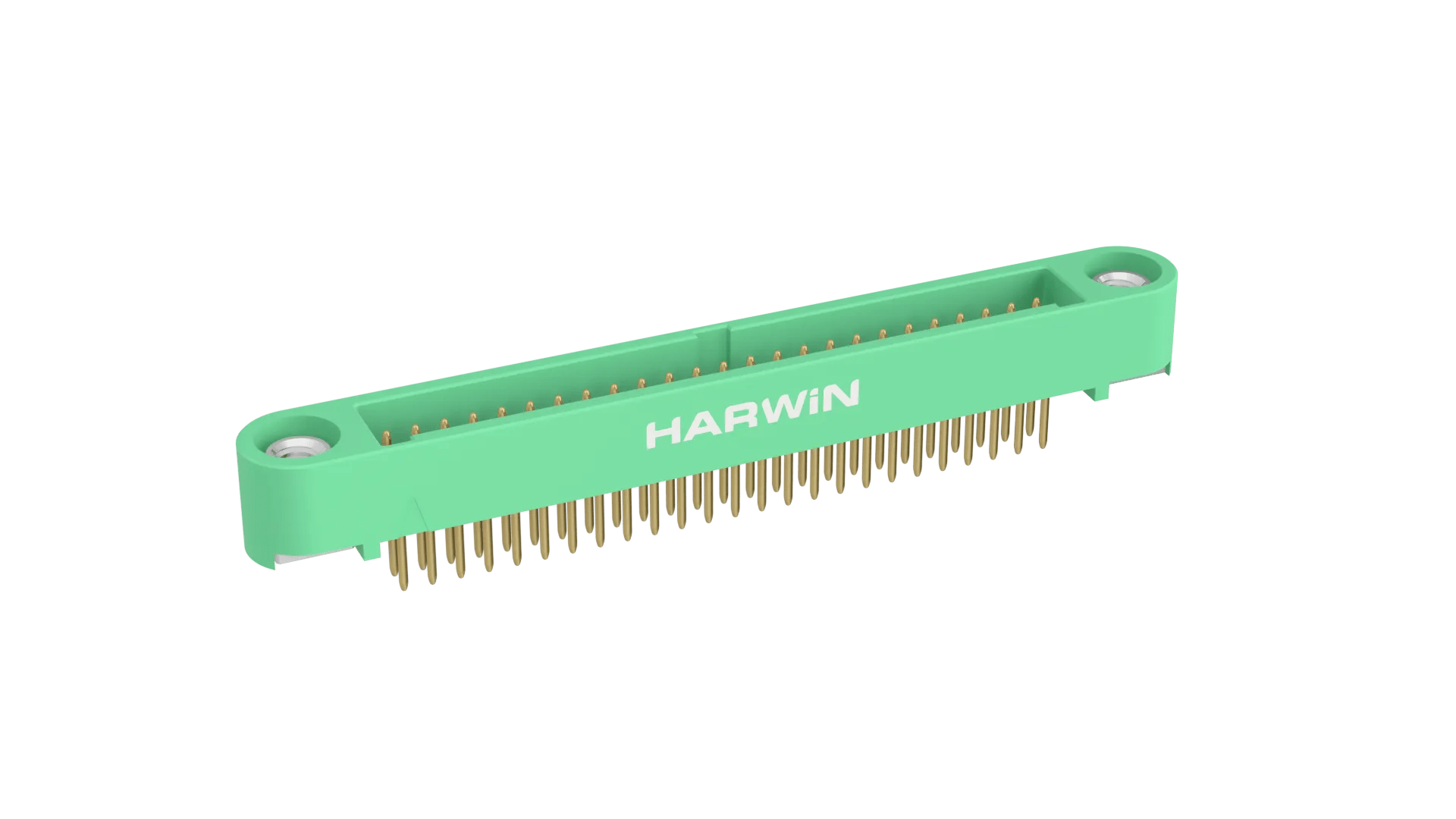

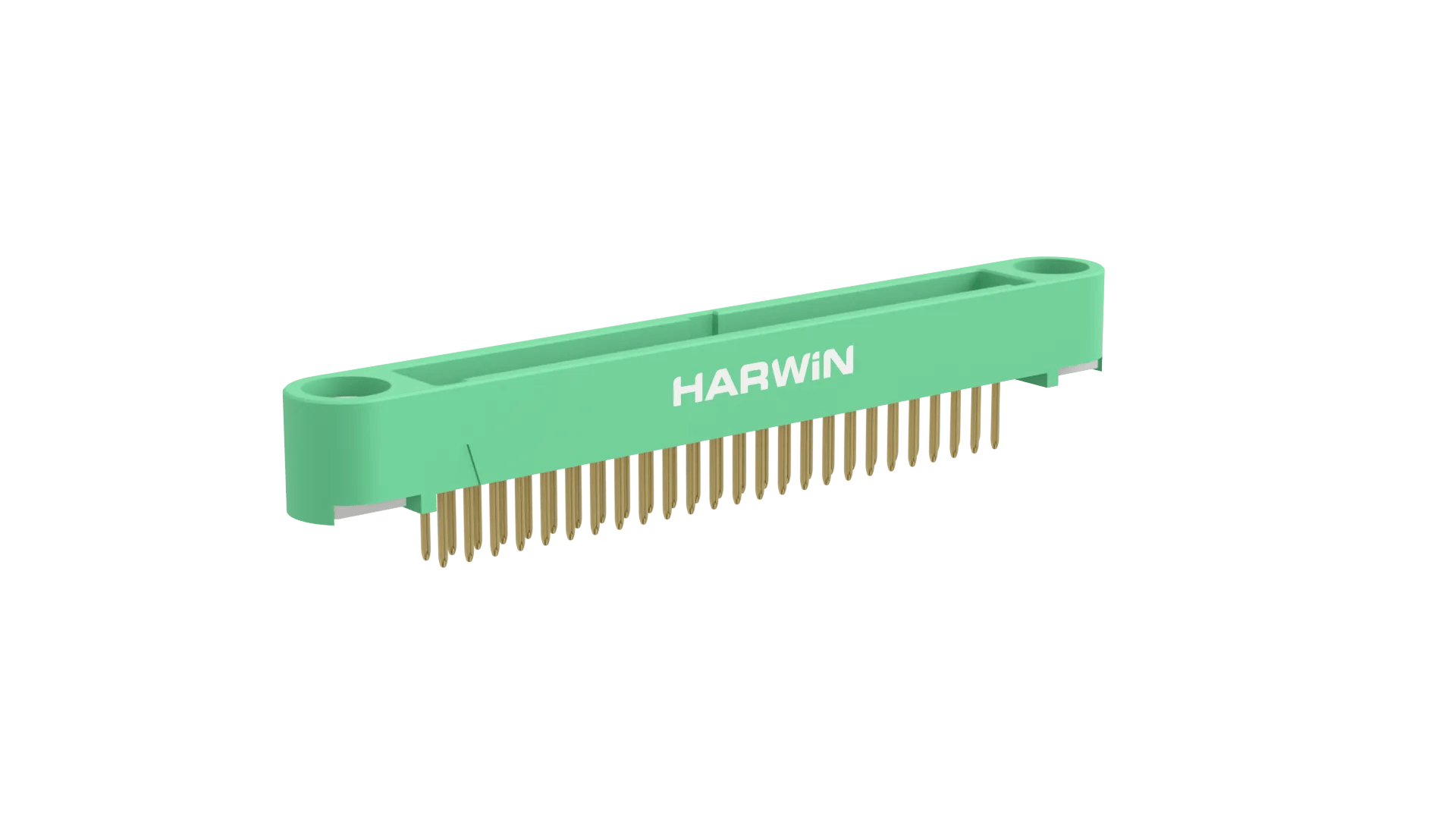

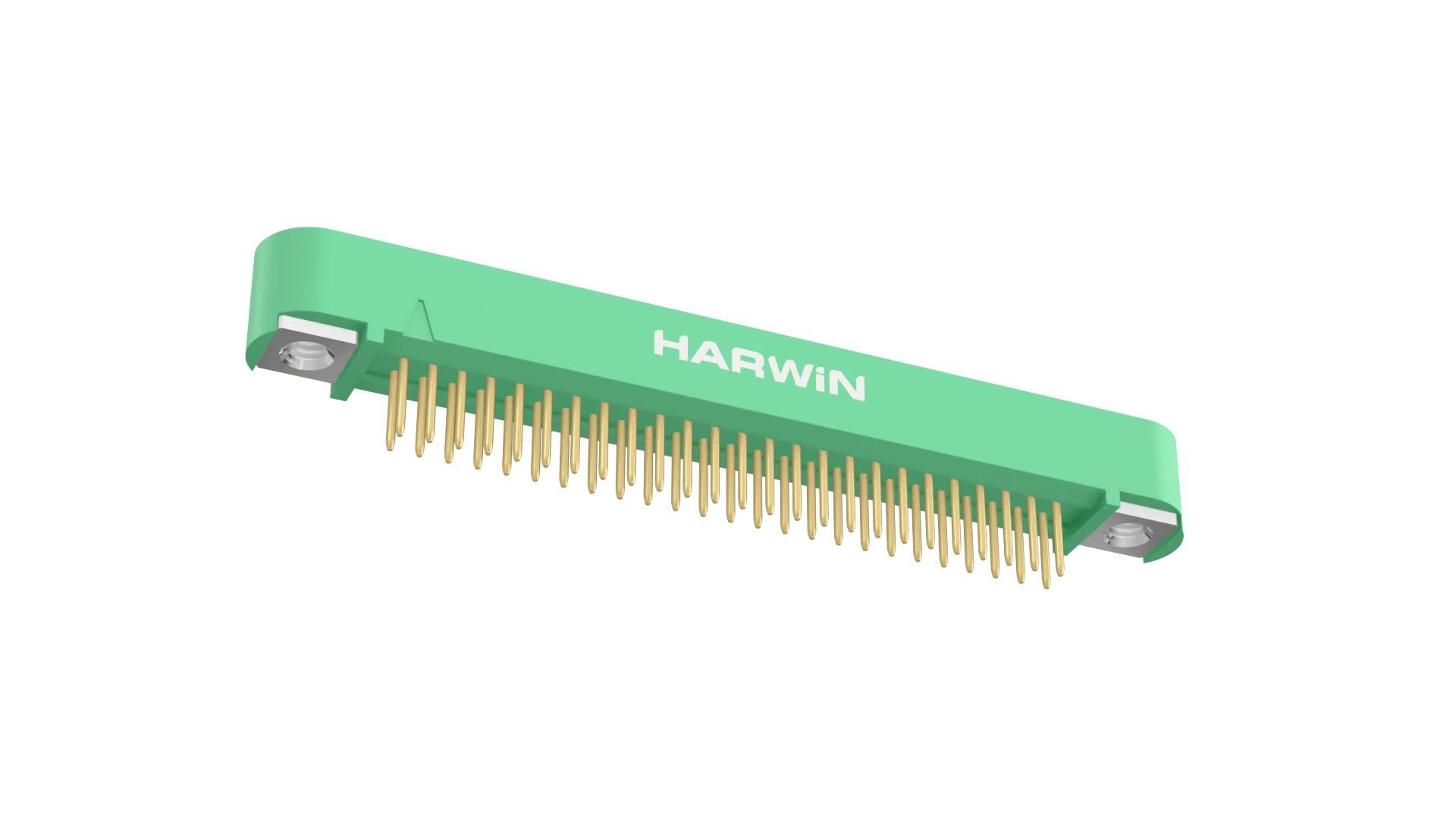

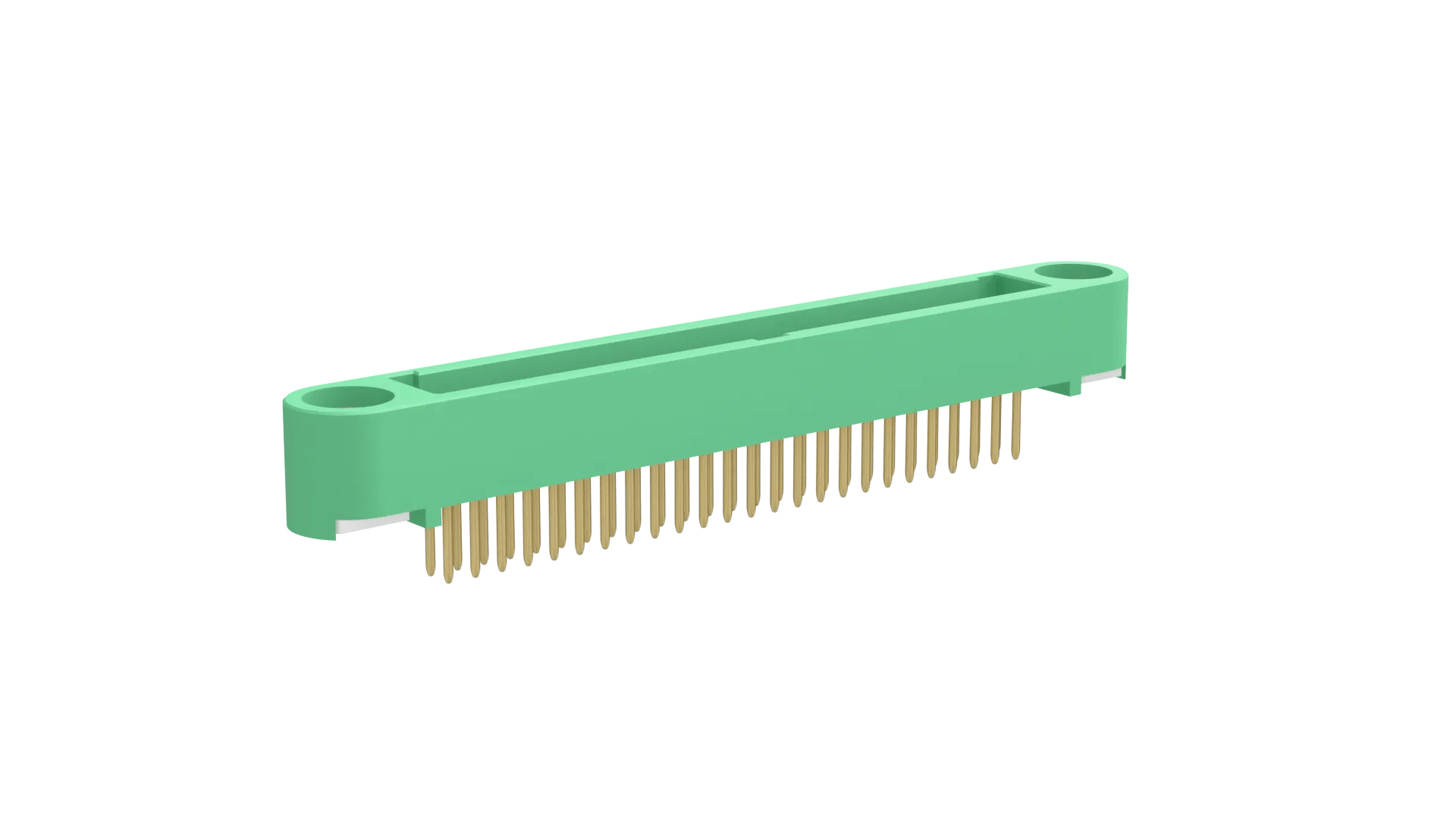

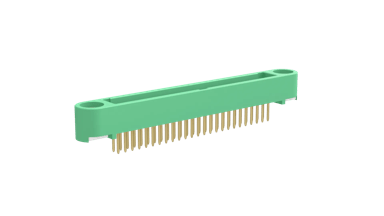

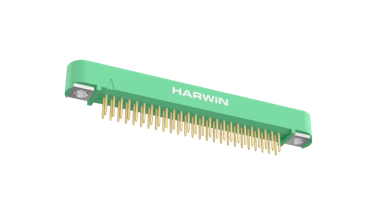

G125-MV15005M1R

25+25 Pos. Male DIL Vertical Throughboard Conn. Screw-Lok (T+R)

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Add to Favorites

19 in stock   Check availability

7 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Male Double Row 3mm PC Tail connector, internally threaded Screw-Lok fixings – 50 contacts (25+25).
  • Supplied on Tape and Reel with pick and place cap. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C125XX.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Screw-Lok (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

50

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

1.523g

Overall Dimensions (L x W x D) in mm:

42.70 x 4.90 x 7.90

Thread Size:

M2

Height of Connector above PCB:

4.90mm

Length of Throughboard Tail:

3.00mm

Frequently Asked Questions Ask a Question

What torque value should be used for these screw-loks?

The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).
