G125-MV13405M2P

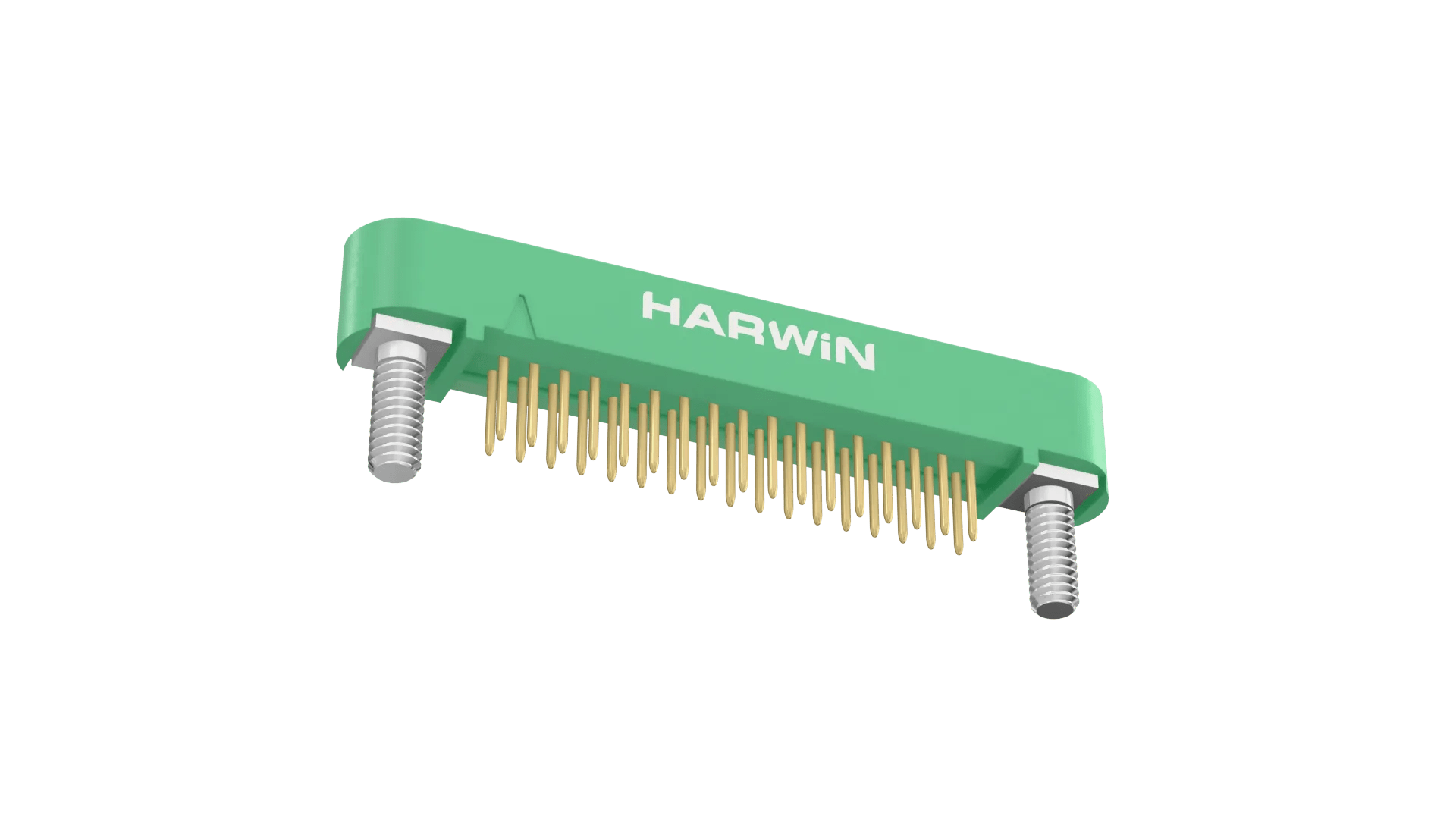

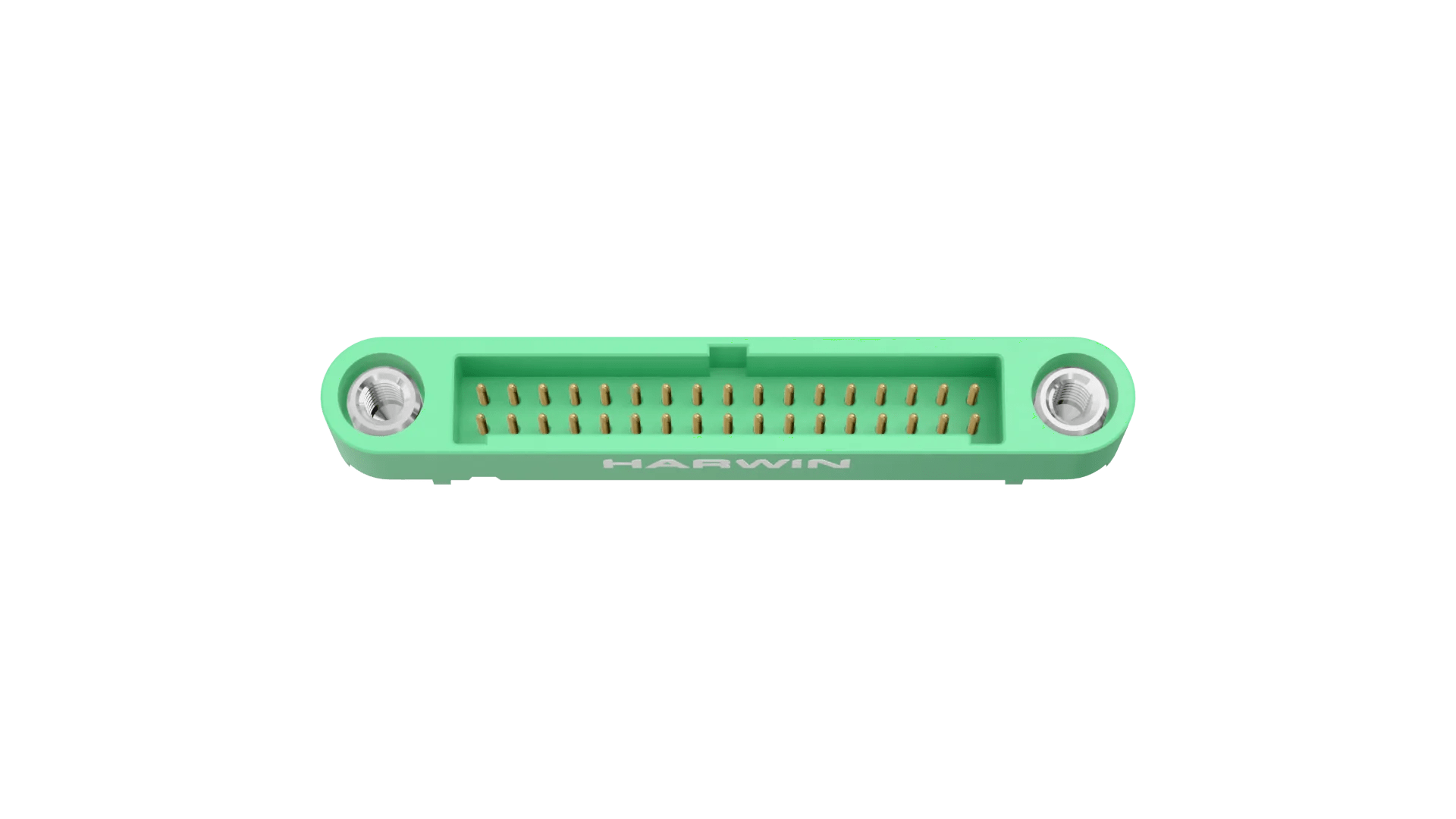

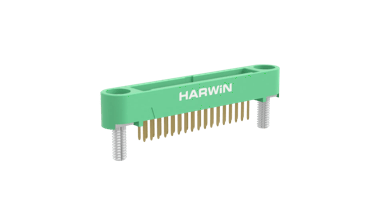

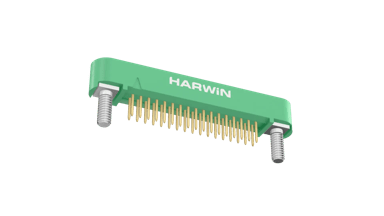

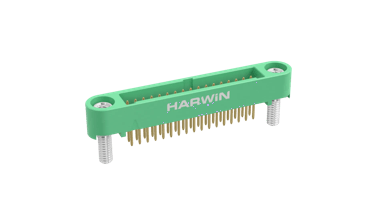

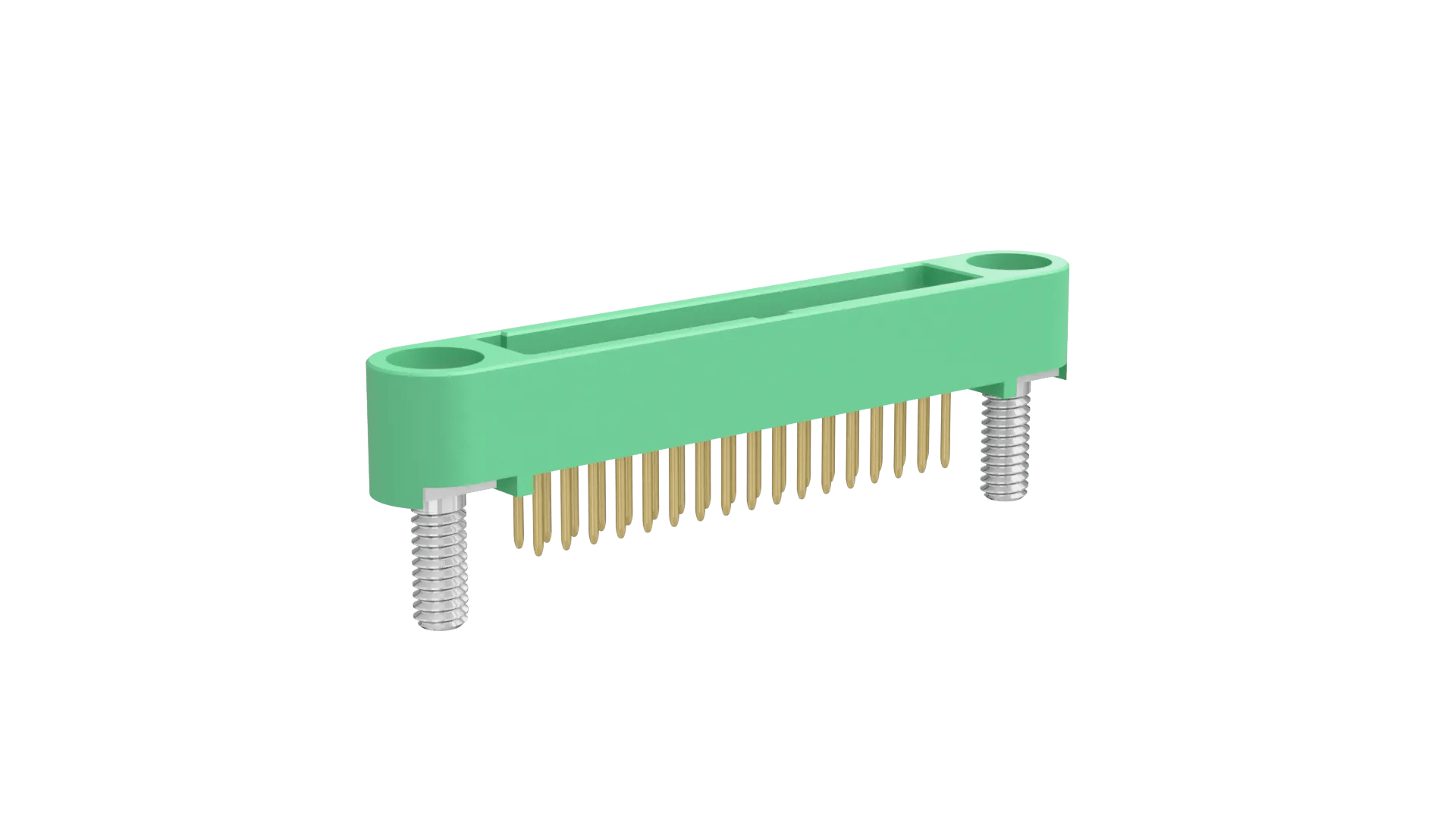

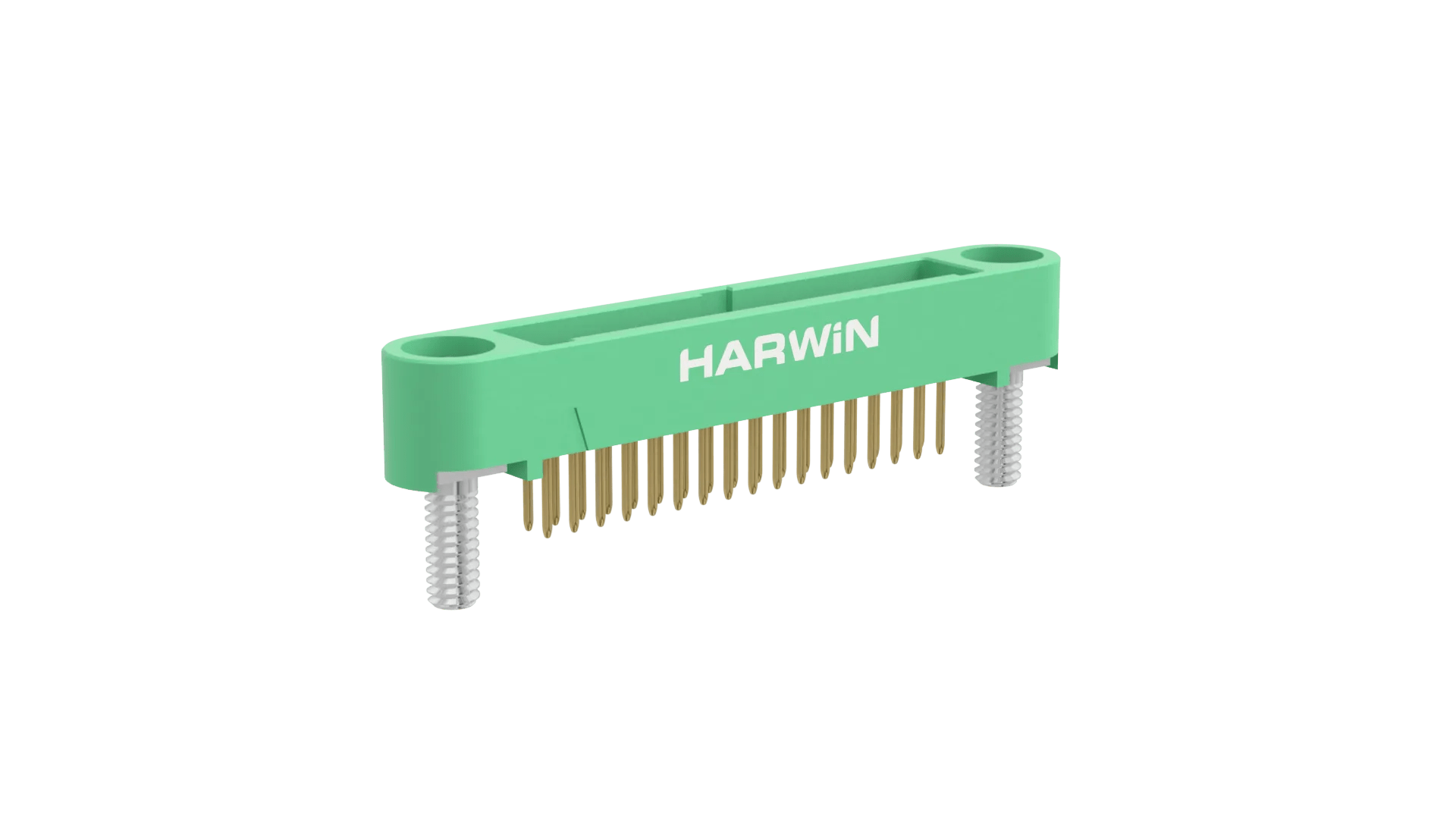

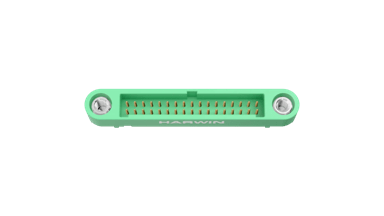

17+17 Pos. Male DIL Vertical Throughboard Conn. Screw-Lok Board Mount

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

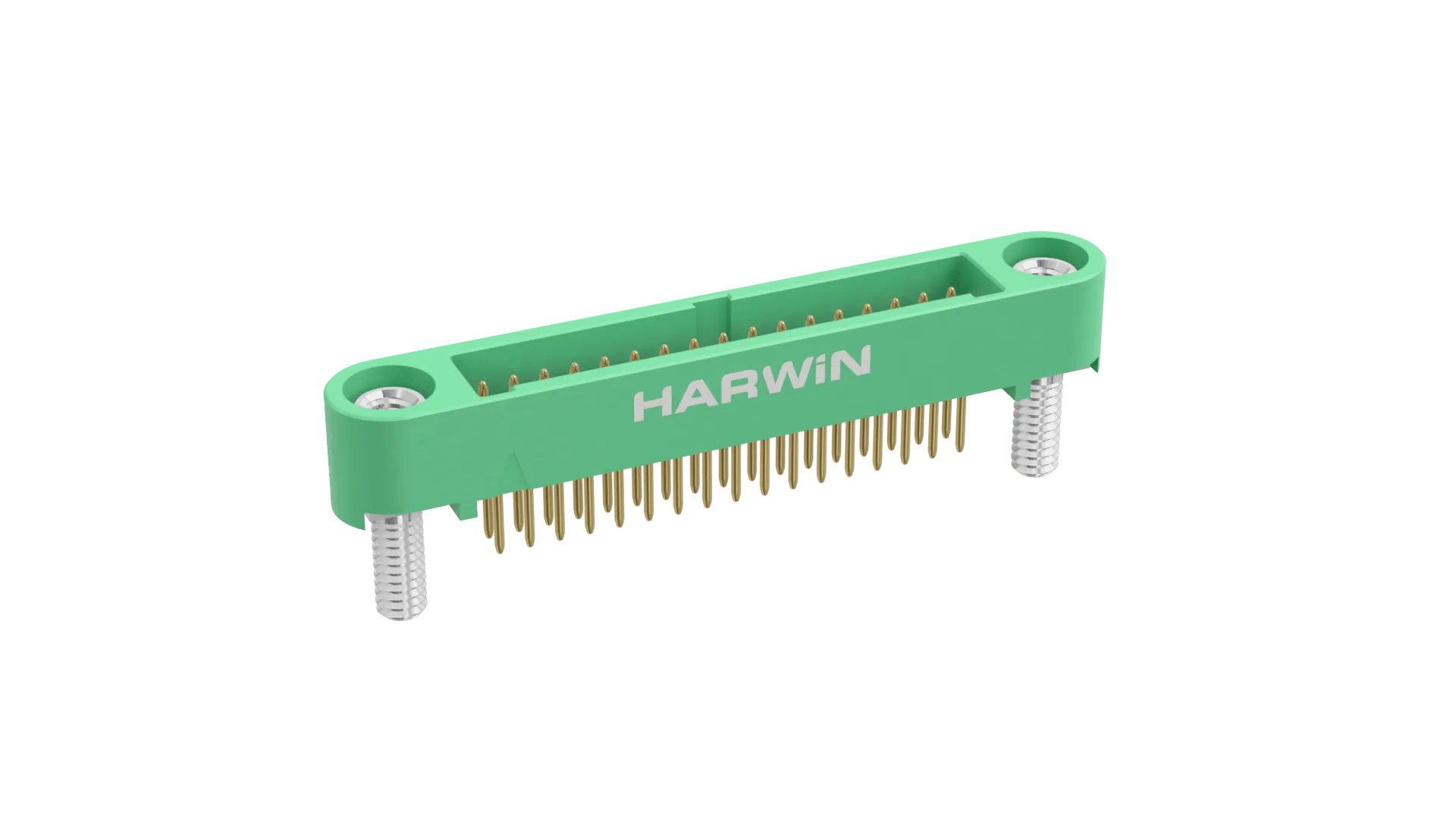

Male Double Row 3mm PC Tail connector, Screw-Lok fixings with 5mm board mount studs – 34 contacts (17+17). Use hex nut G125-4500000B or slotted nut G125-4510000B for PCB strain relief.
Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C125XX.

Add to Basket

Availability

G125-MV13405M2P - 17+17 Pos. Male DIL Vertical Throughboard Conn. Screw-Lok Board Mount

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Screw-Lok with Board Mount Stud (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Individual Part Weight:

1.438g

Overall Dimensions (L x W x D) in mm:

32.70 x 4.90 x 9.90

Male Stud Length:

5.00mm

Thread Size:

Height of Connector above PCB:

4.90mm

Length of Throughboard Tail:

3.00mm

Mating Profiles:

Catalog page - Gecko-SL Mating Profiles

Availability

268 in stock

Questions & Answers Ask a Question

Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?

No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. You have a choice of G125-4500000B (hexagonal nut), or G125-4510000B (slotted circular nut).

What torque value should be used for these screw-loks?

The torque value for board or panel mounting and for mating screw-loks is 16-18cmN. Both values are given in the Component Specification C125xx (page 3).
