G125-MV13405L1P

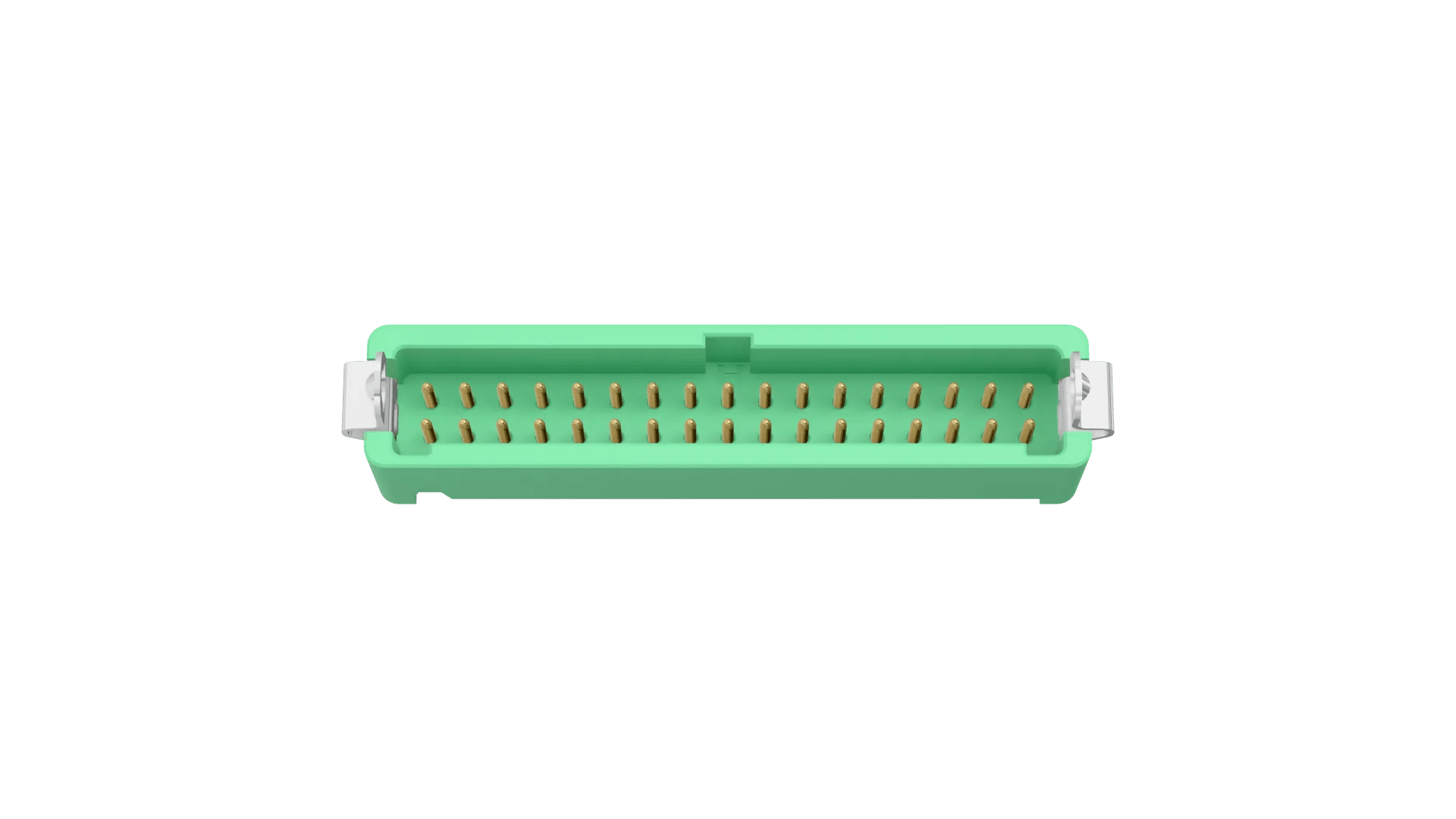

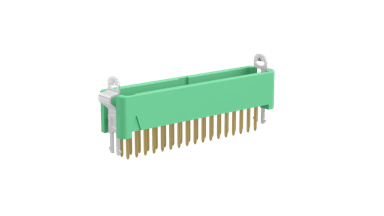

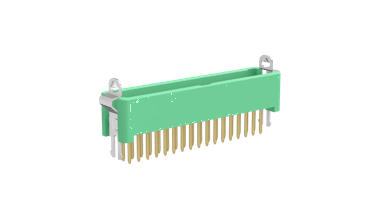

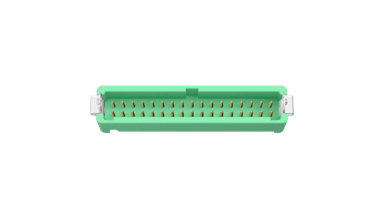

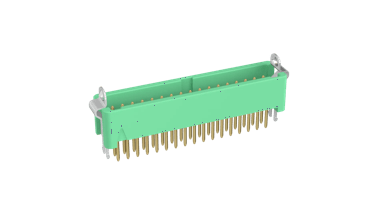

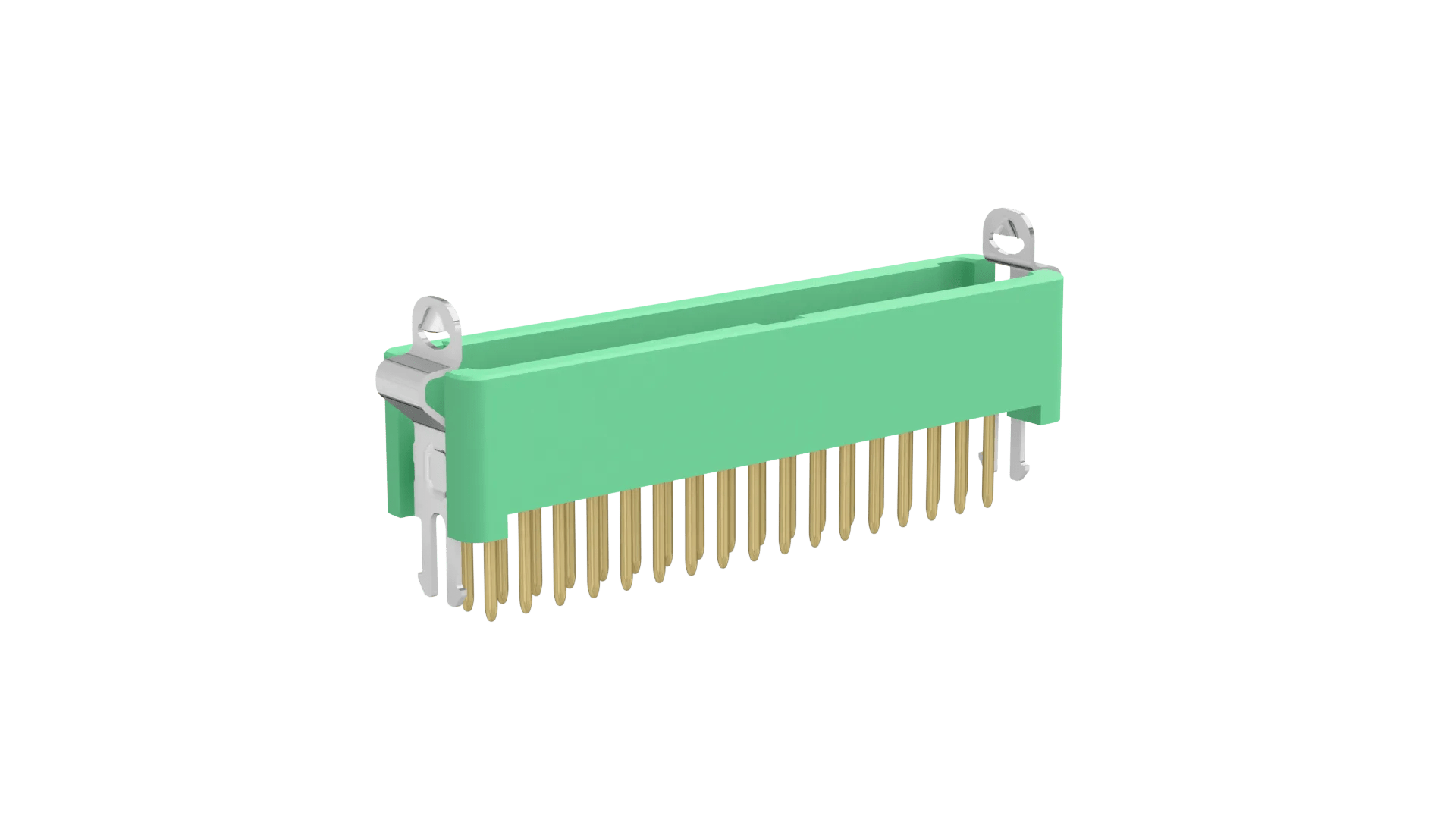

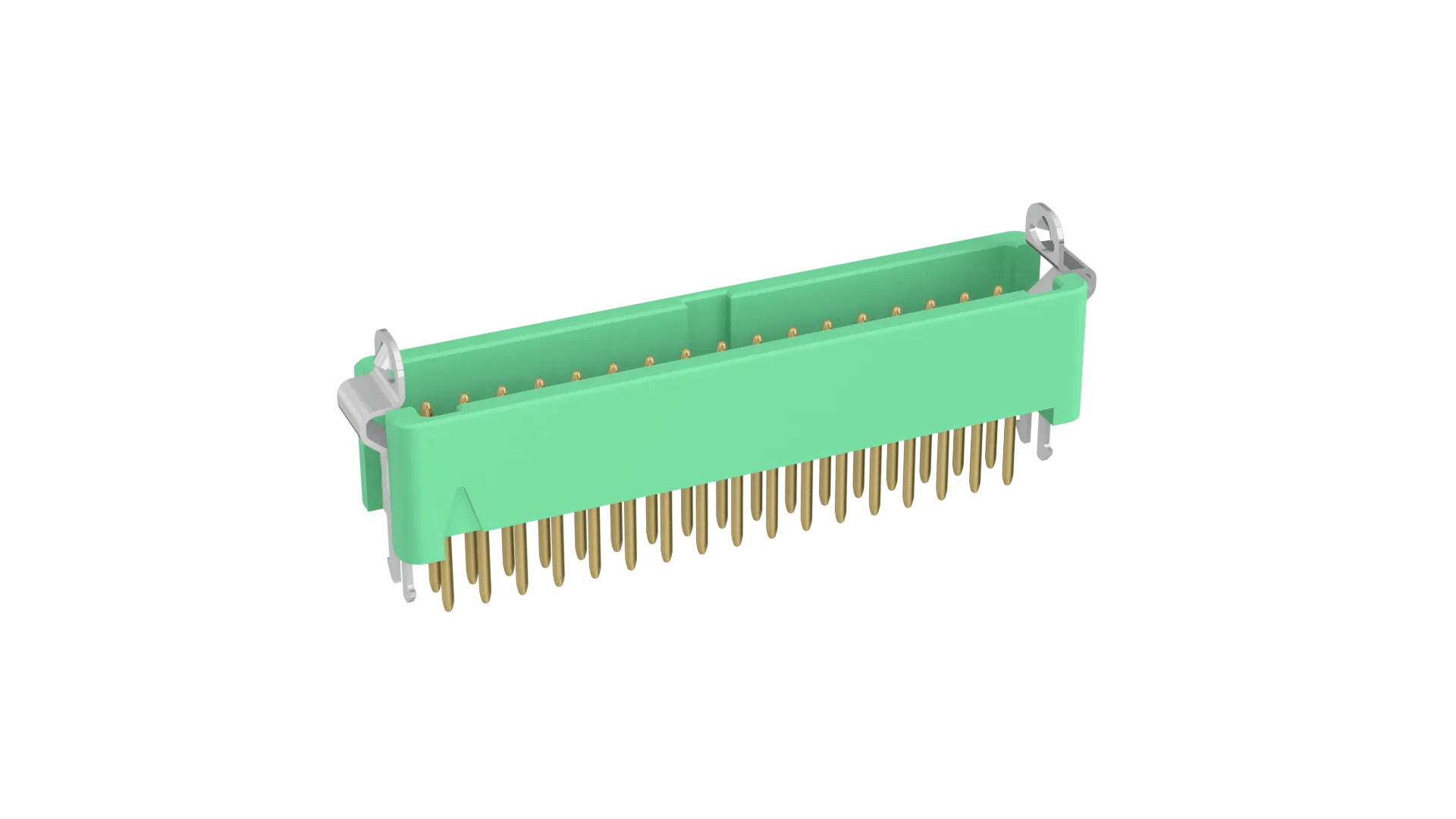

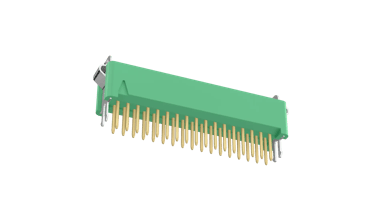

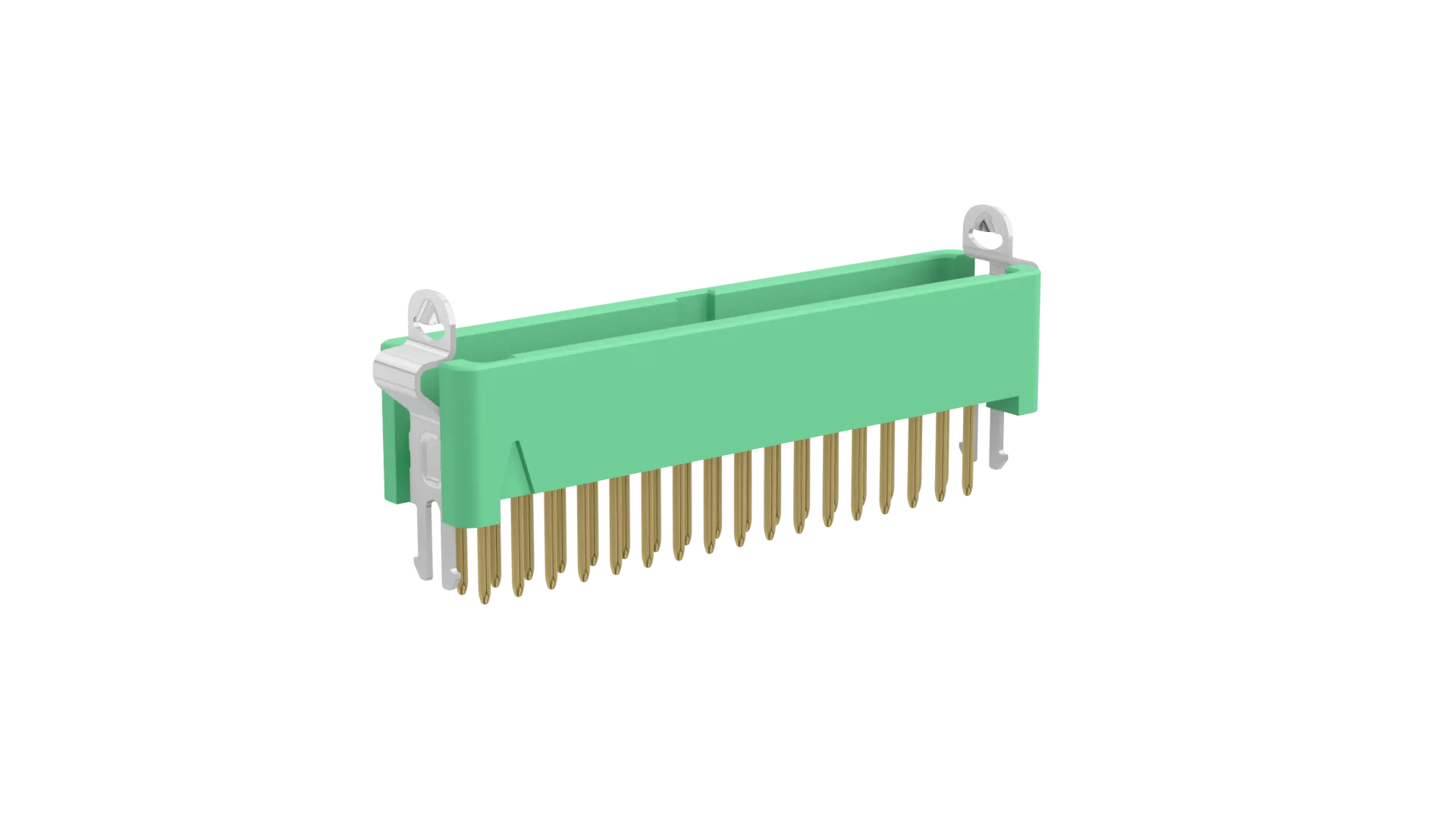

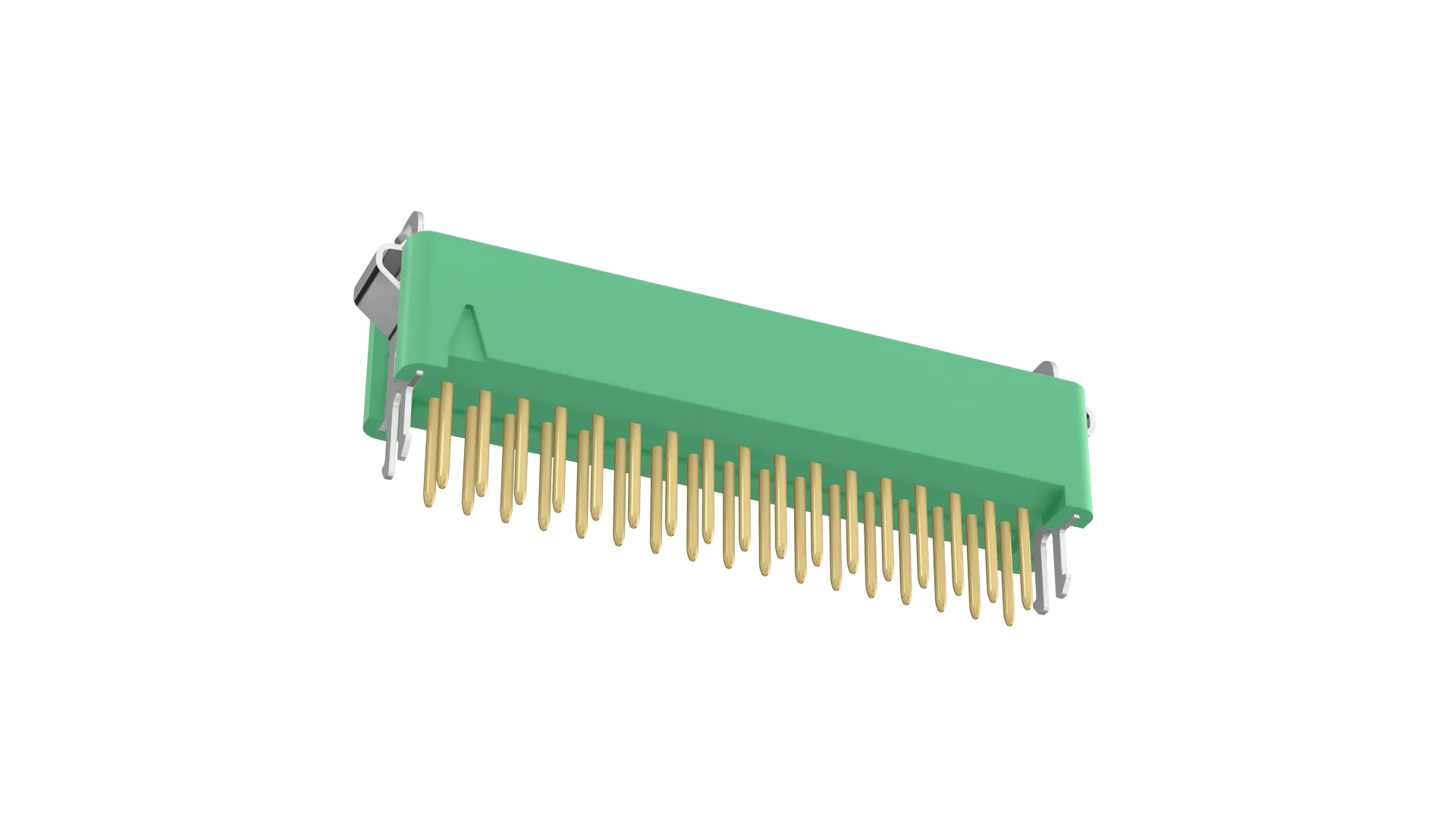

17+17 Pos. Male DIL Vertical Throughboard Conn. Latches
1.25mm Pitch High-Reliability Connector - Gecko with Latches
Loading… Check availability
9 similar products View products
Traceparts account required
Product Description
- Double Row male 3mm PC Tail connector, Latches with through-hole barbs for 1.6mm PCB thickness – 34 contacts (17+17). Through-hole barbs can be used as location pegs, or soldered to PCB for additional strain relief.
- Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C125XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.25mm (0.049")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
Ø0.4mm
Current Rating:
2.8A max individual contact, 2A max simultaneous (25°C)
Operating Temperature:
-65°C to +150°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Latches:
Locking Latch
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
34
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
Polyamide (Nylon) 4T
Housing Colour:
Green
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel Strip
Dimensions
Individual Part Weight:
0.883g
Overall Dimensions (L x W x D) in mm:
25.20 x 4.90 x 9.80
Height of Connector above PCB:
6.80mm
Length of Throughboard Tail:
3.00mm
Mating Profiles:
Frequently Asked Questions Ask a Question
G125-MV13405L1P what is the mating connector for cable?
Mating connector information can be found under the “Related Products”section – click on the Mating tab in this area to see the full list. For cable, the housing is G125-2043496L0, but there are also ready-made cable assemblies available if you scroll further through the mating products. For the housing, you will also need to purchase the crimp contacts separately – navigate to the housing page for more details.
Was this answer useful?
G125-MV13405L1P what is its maximum voltage DC?
The maximum voltage for the Gecko range is 600V DC (or AC peak). This specification can be found in the Component Specification (available in the Downloads section). It is listed in the specification as “Voltage Proof” – which is the same as Maximum Voltage, or Dielectric Withstanding Voltage.
Was this answer useful?
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z125-9263400 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.
Was this answer useful?
