G125-MV12605M3P

13+13 Pos. Male DIL Vertical Throughboard Conn. Screw-Lok Reverse Fix

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Order Sample

Add to Favorites

In stock Check availability

6 similar products View products

Traceparts account required

Product Description

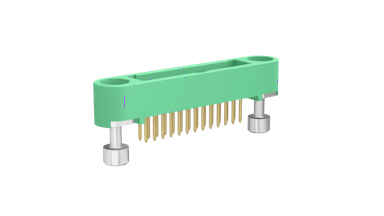

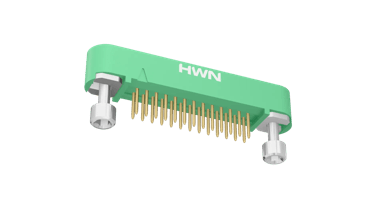

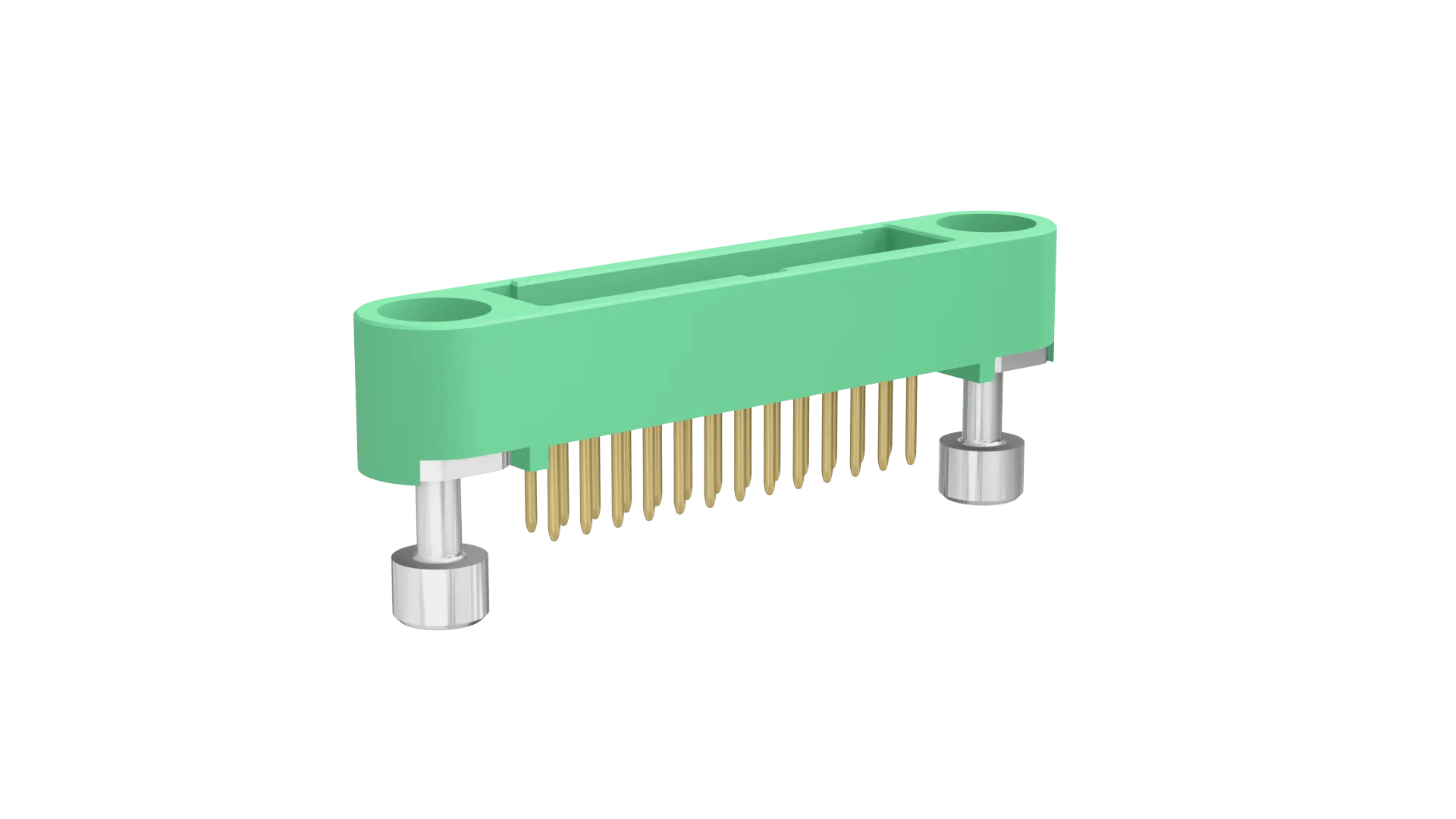

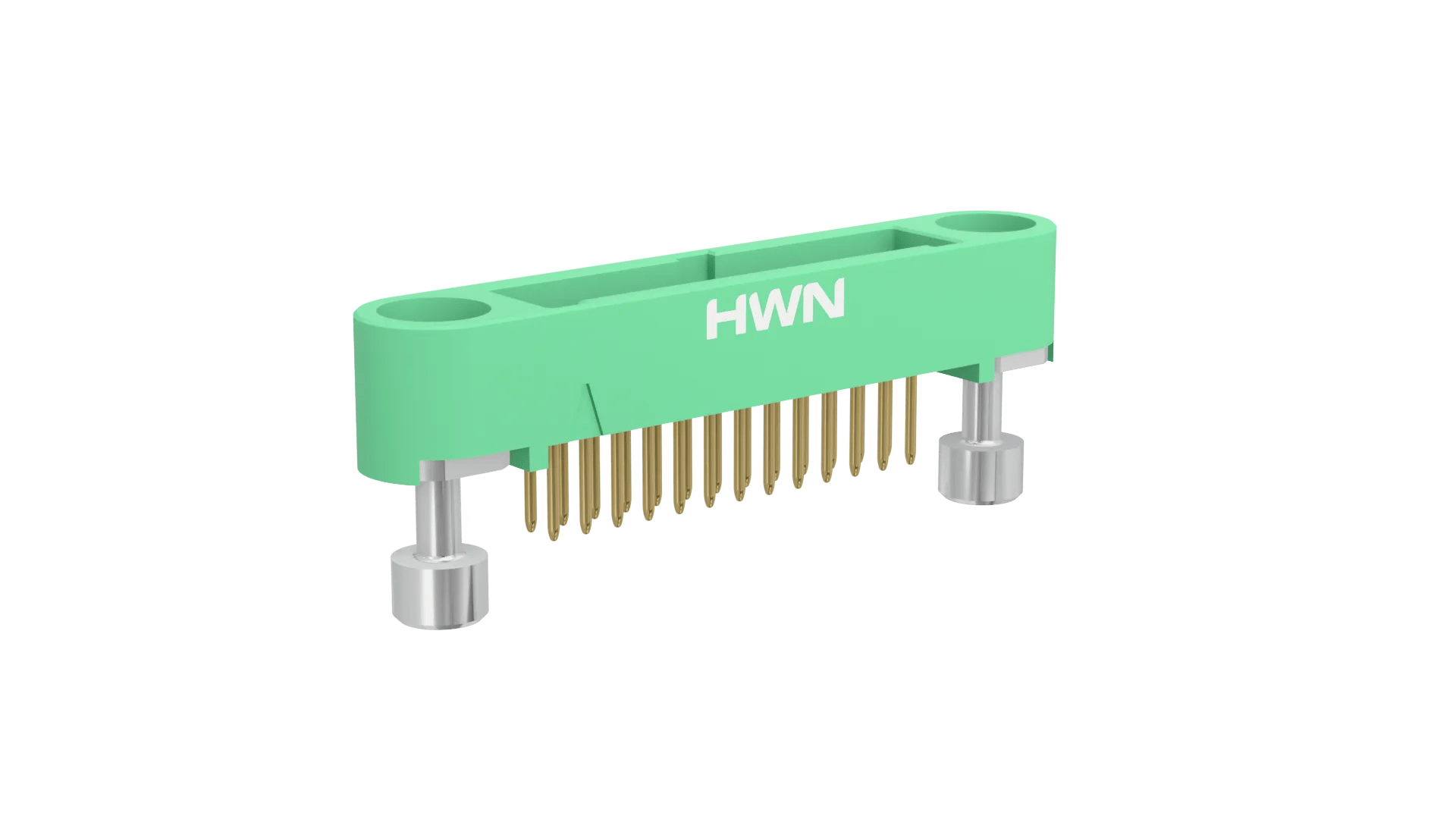

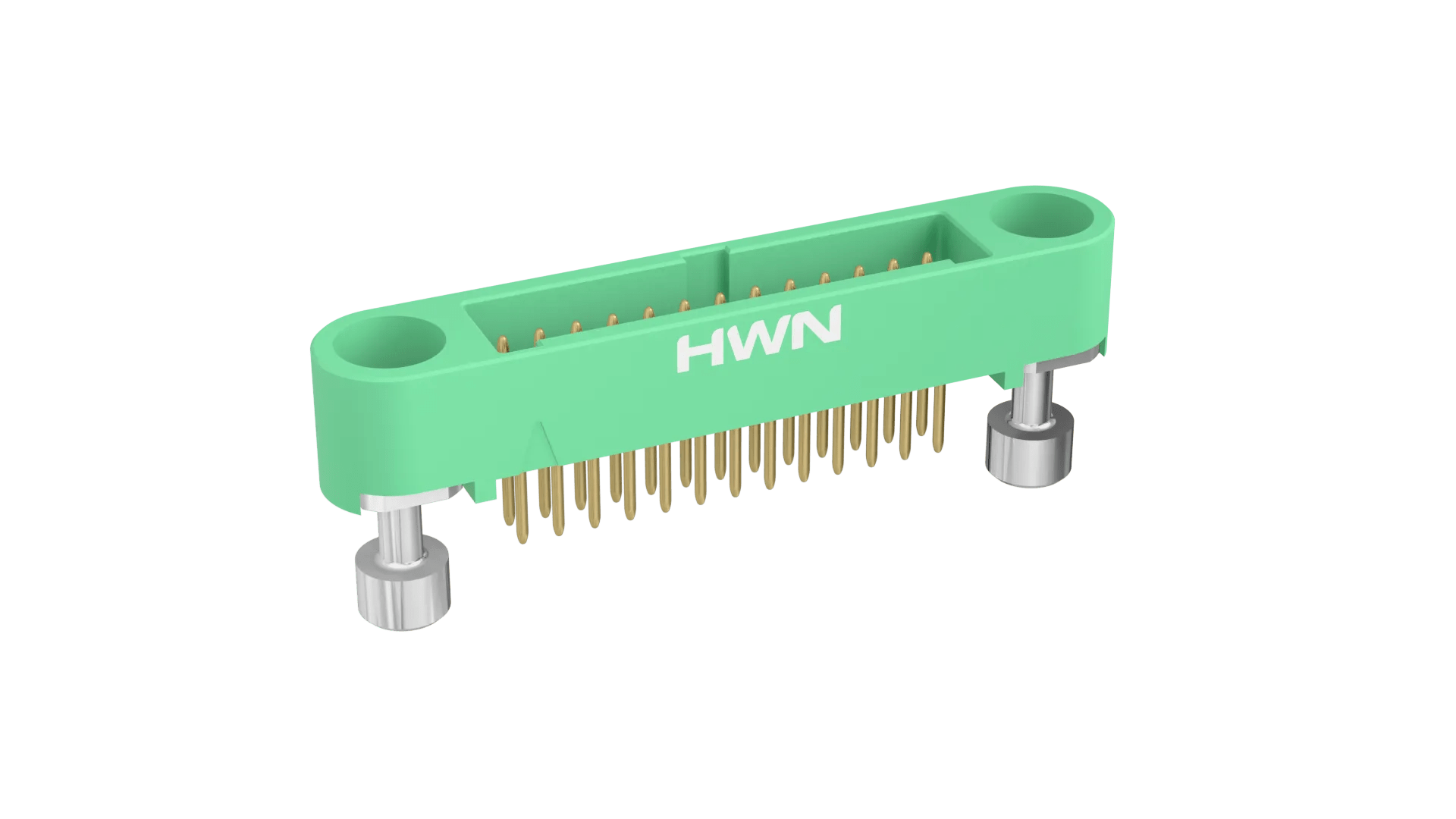

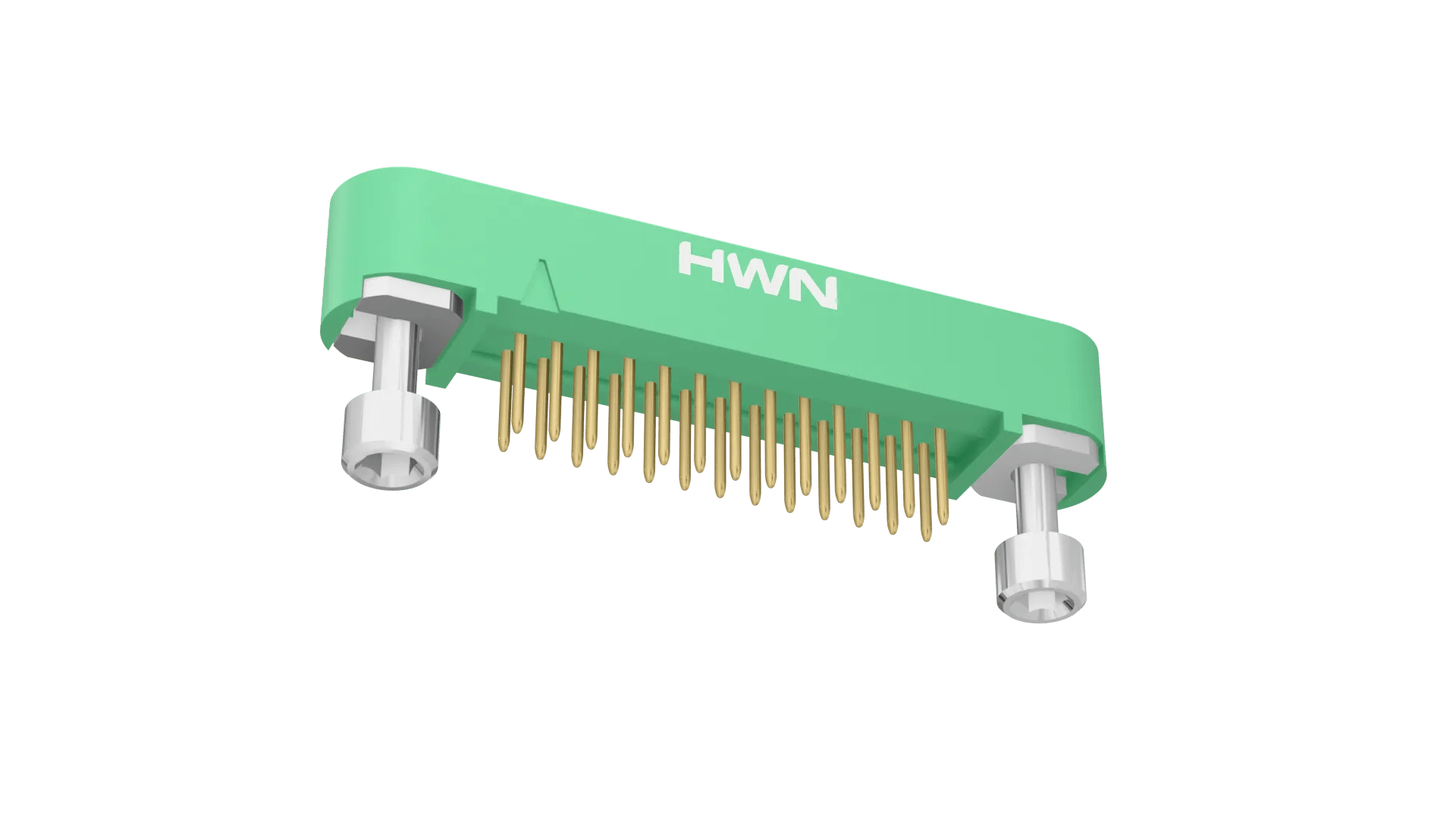

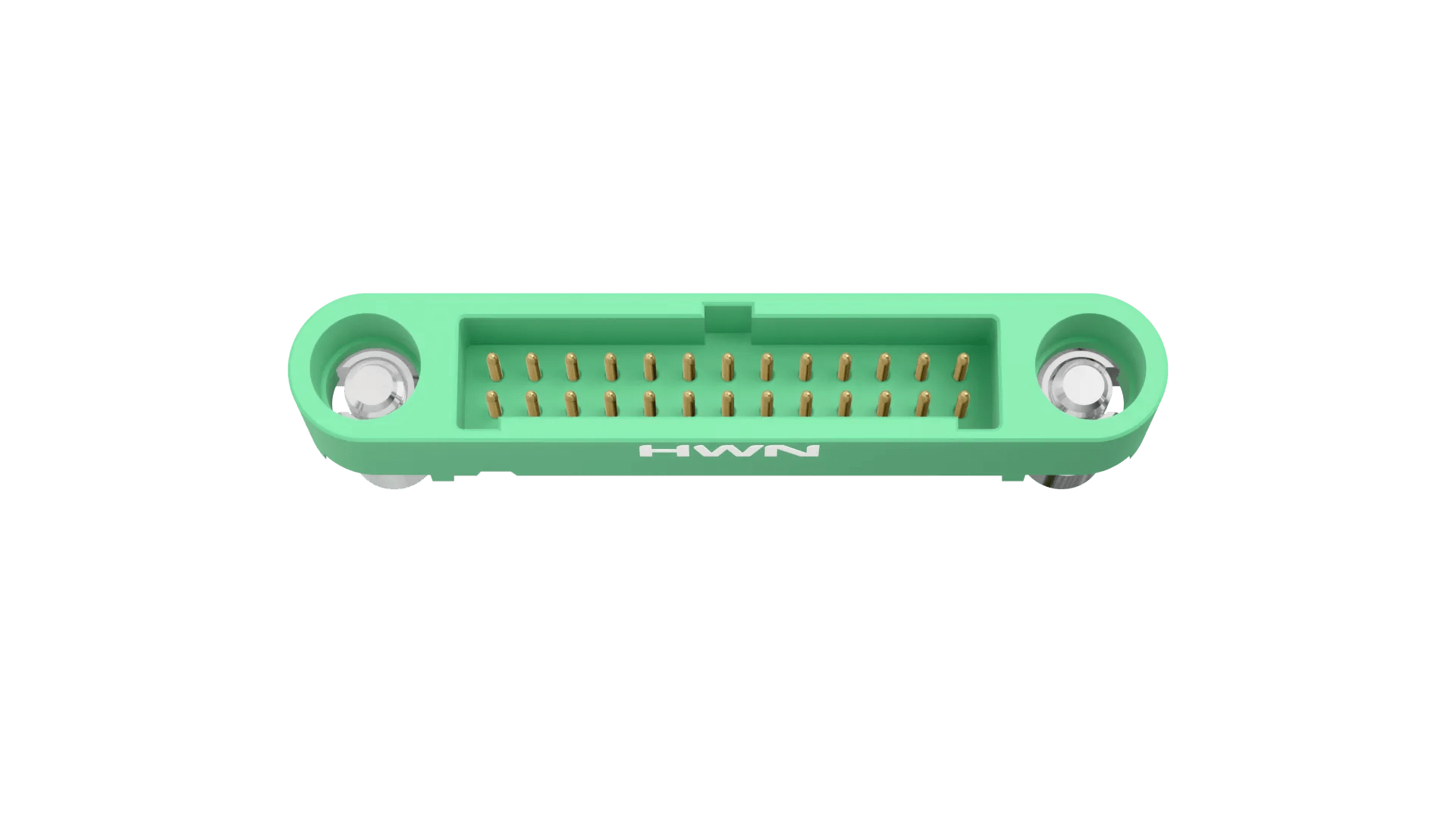

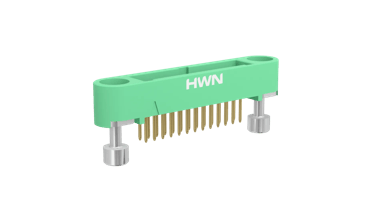

Male Double Row Vertical 3mm PC Tail connector – 26 contacts (13+13). Fitted with floating Screw-Lok fixings, Hexagonal socket head, Mate-before-Lock.
Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C125XX.

G125-MV12605M3P - 13+13 Pos. Male DIL Vertical Throughboard Conn. Screw-Lok Reverse Fix

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Floating Screw-Lok with Hex Socket Head (Reverse Fix)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Individual Part Weight:

1.269g

Overall Dimensions (L x W x D) in mm:

27.70 x 4.90 x 7.90

Thread Size:

Height of Connector above PCB:

4.90mm

Length of Throughboard Tail:

3.00mm

Mating Profiles:

Catalog page - Gecko-SL Mating Profiles
