G125-MV12605M2P

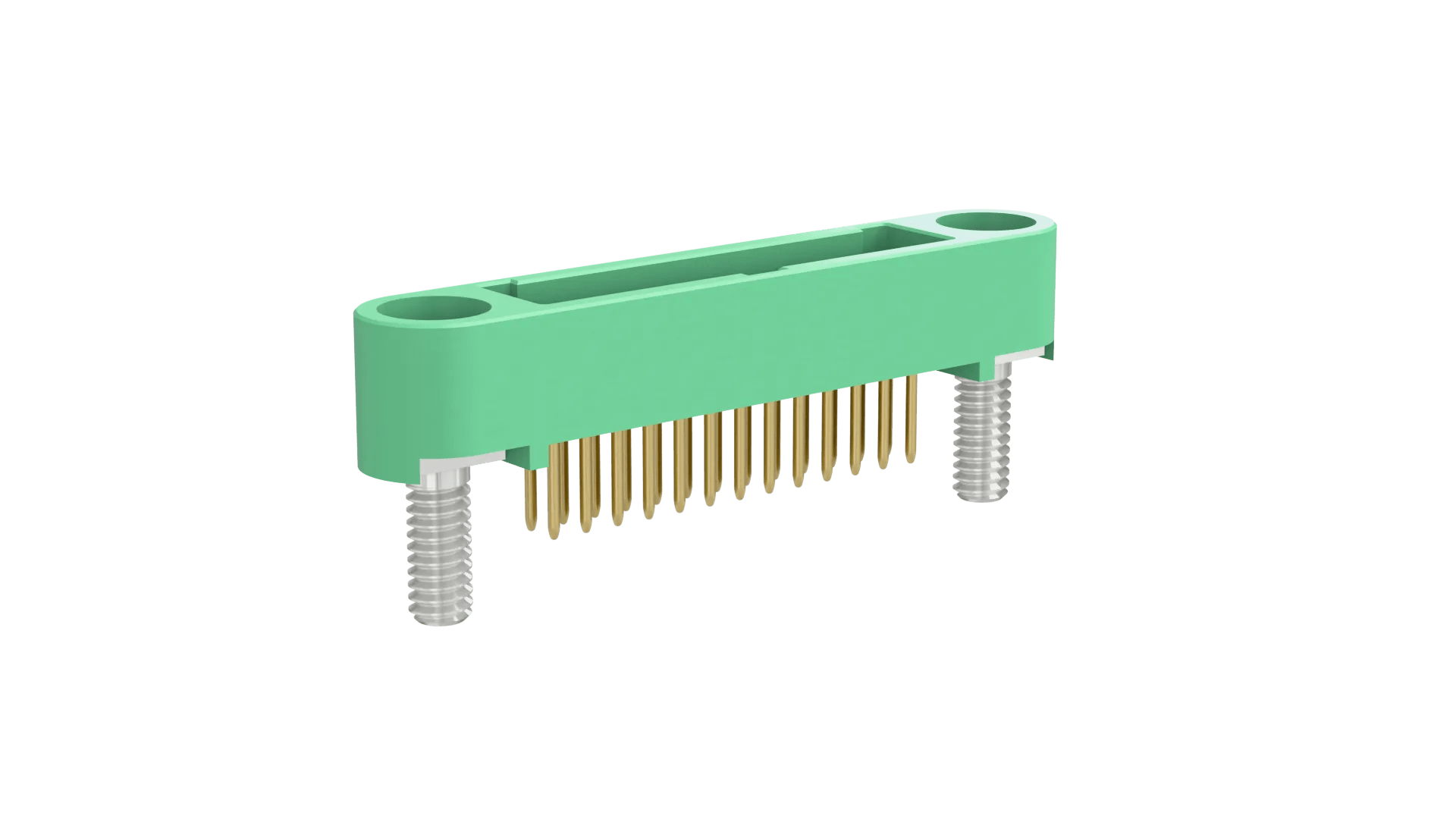

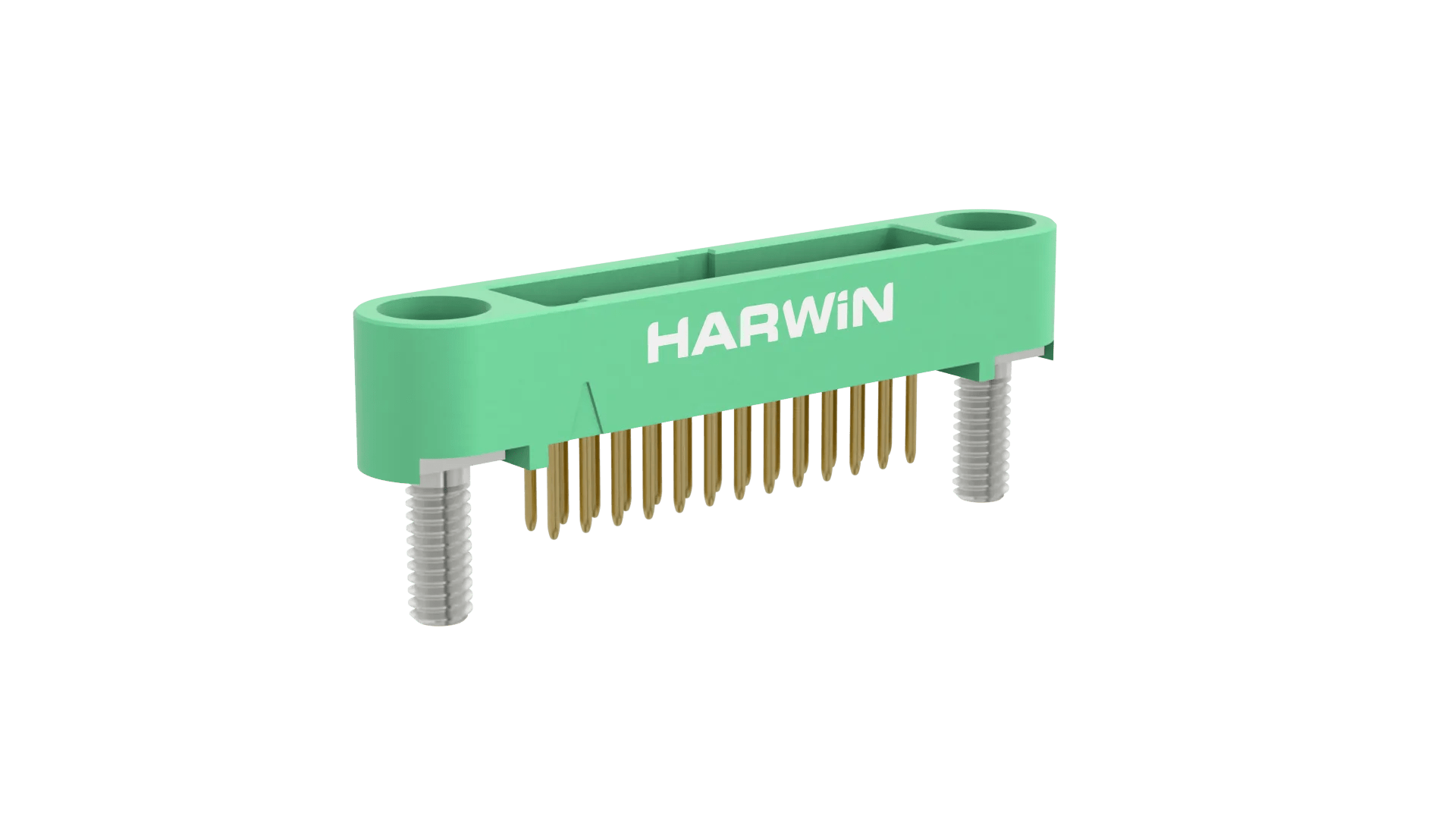

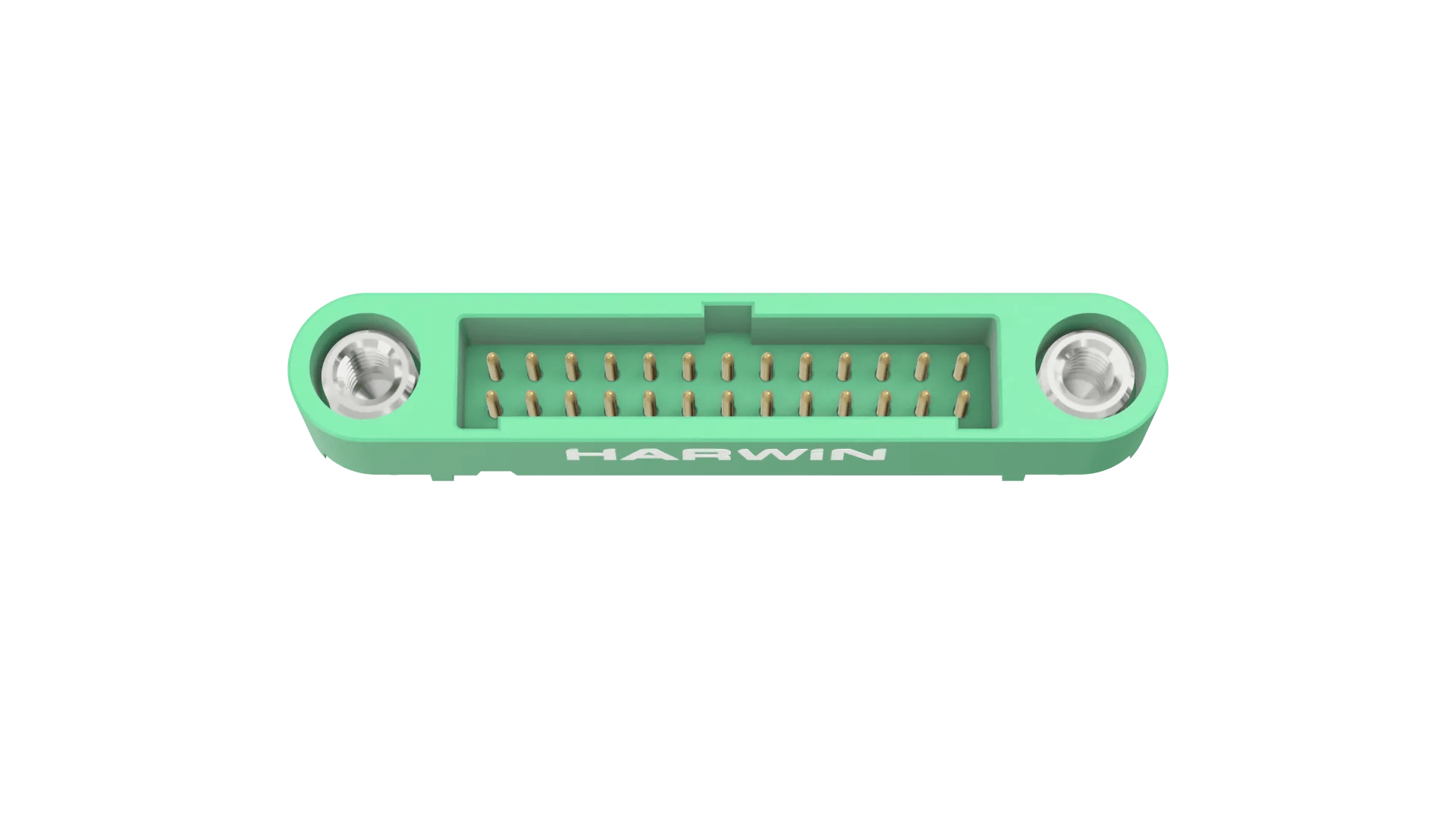

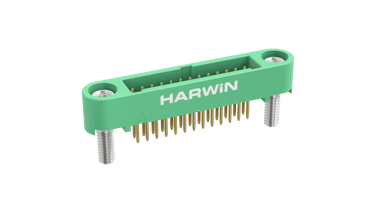

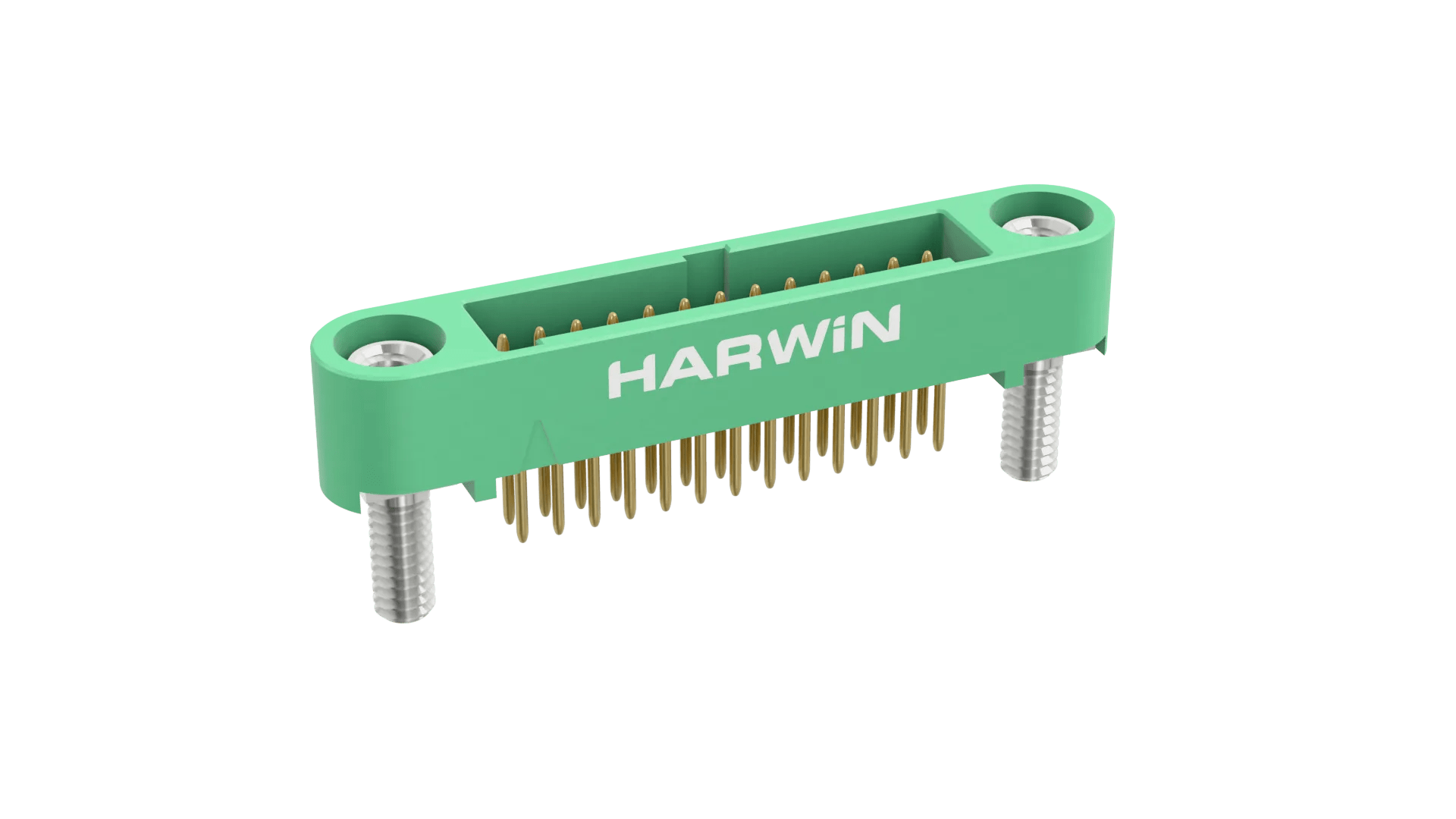

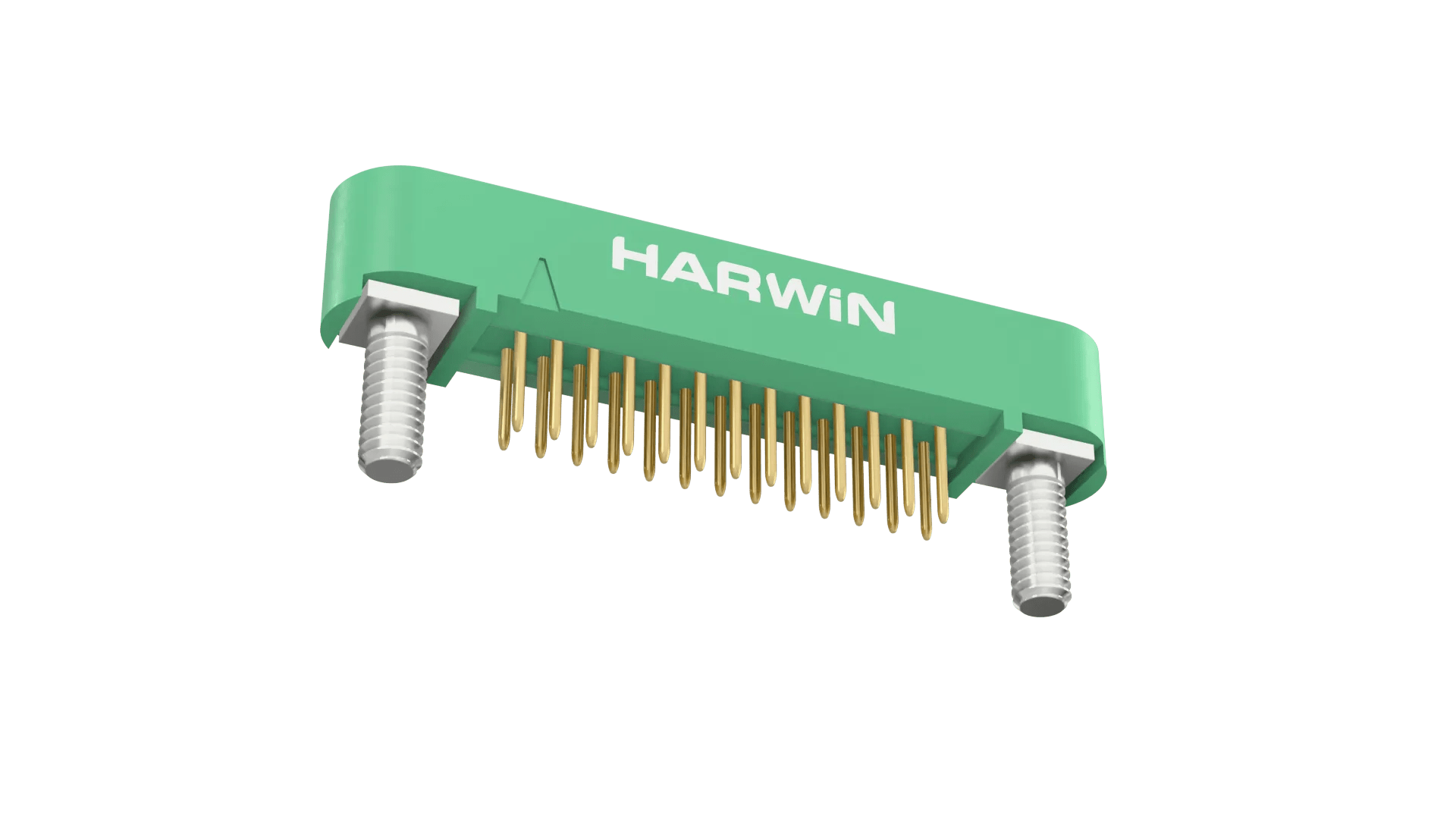

13+13 Pos. Male DIL Vertical Throughboard Conn. Screw-Lok Board Mount

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm

Current Rating:

2A

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Screw-Lok with Board Mount

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

26

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

1.297g

Overall Dimensions (L x W x D) in mm:

27.70 x 4.90 x 9.90

Male Stud Length:

5.00mm

Thread Size:

M2

Height of Connector above PCB:

4.90mm

Length of Throughboard Tail:

3.00mm

Availability

Distributor Location Quantity
Digi-Key
Global
Status133
Harwin
Europe
Status6
Mouser Electronics Inc
Global
Status53
TTI Inc
USA
Status25

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-MV1XX05M2P.pdf

ZIP

G125-MV12605M2P CAD Model (ZIP file containing STP and IGES)

PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

PDF

Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (24-Jul-2019) including 201 SVHC (16-Jul-2019), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 5.12) - Company Summary Statement

PDF

Material composition for Gecko G125-MV1XX05M2X series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Gecko Screw-Lok range, 1.25mm pitch High-Reliability

OTHER DOWNLOADS

PDF

Catalog page - Gecko Screw-Lok Male Vertical PC Tail

PDF

Catalog page - Gecko Introduction

PDF

Catalog page - Gecko Specification, Pin Numbering

PDF

Catalog page - Gecko Screw-Lok Mating Profiles
